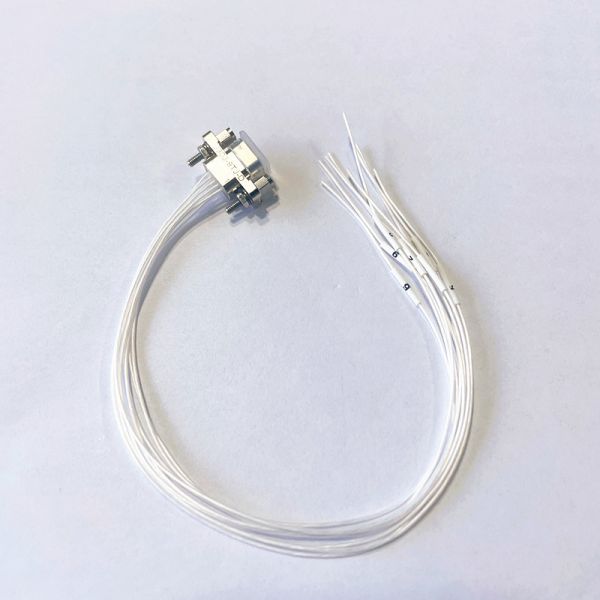

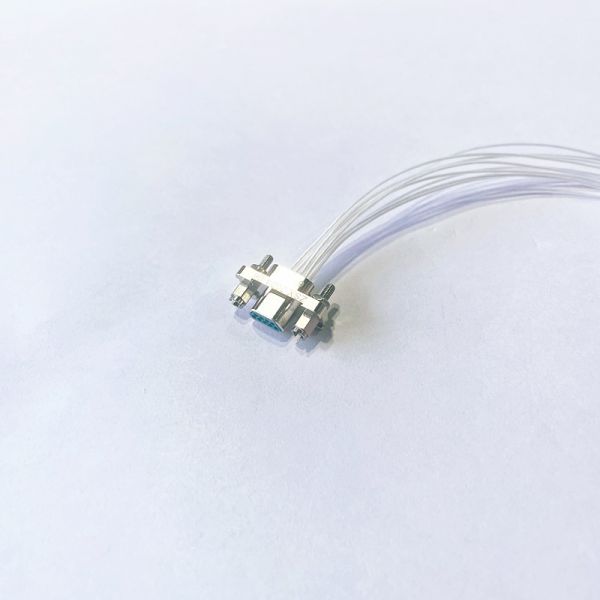

Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Specifications
Brand Name :
ZSX
Model Number :
J30J-9TJ-D
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description
Anti Rotation J30J Connector 1.27mm Miniature Electrical Connector
J30J-9TJ-D Anti-rotation Type With Groove On The Shell

The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins) with a contact piece spacing of 1.27mm. The product features a compact size with a metal casing and is available in 12 specifications ranging from 9 to 144 pins.

The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional areas from 0.1mm² to 0.15mm², suitable for high-density, miniaturized, lightweight, and high-reliability electronic and electrical systems.

Product Performance Specifications
Product Model J30J-9TJ-D Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS total acceleration 23.1G Mechanical Life 500 times
Impact 735m/s² 11ms Rated Current 3A
Product Display
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Product Appearance
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Related Product Recommendations
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Product Selection Reference
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Company Overview
Office Area
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Production Plant Area
Machining Production Workshop
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Precision Assembly Production Workshop
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Glass-to-Metal Sealed Production Workshop
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Obtained Certifications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Customer Visits
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Product Packaging
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
Packaging and Shipping
Anti Rotation J30J Connector 1.27mm Pitch Metal Body Micro D Connector for High Density Applications
  • Standard export carton packaging
  • Custom specifications including logo and other requirements available
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

What are the main products of your company?

Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturer) services.

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. Pricing is higher for orders under 200 pieces.

Which logistics company does your company ship through?

We cooperate with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure fast delivery with the lowest shipping costs. We also offer air and sea freight options.

How long does it usually take to receive the goods?

Generally, 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
