MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability
Specifications
Brand Name :
ZSX
Model Number :
J30J--51ZKP
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector
Gender :
Female
Boday Material :
Aluminum alloy
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description

Micro-D Connectors J30J-37ZKP Jack(Female) Connector

J30J-51ZKP is a high‑reliability 51‑pin micro‑rectangular connector compliant with MIL-DTL-83513, featuring a 1.27 mm high‑density pitch and twist‑pin elastic contacts for stable signal transmission, low insertion force, and strong resistance to vibration and shock. Its shell is made of shielded aluminum alloy with excellent corrosion resistance, while the contacts are beryllium copper with nickel‑gold plating, ensuring low contact resistance, high current carrying capacity, and long service life. The insulator adopts high‑performance LCP/PPS engineering plastic with outstanding dielectric properties, enabling stable operation in temperatures ranging from -55°C to +125°C and supporting up to 500 mating cycles. Widely used in aerospace, aerospace equipment, industrial automation, precision instruments, and communication systems, the J30J-51ZKP provides a safe, miniaturized, and highly reliable electrical connection solution for critical applications in harsh environments.

Product display
Product Performance Details
Product model

J30J-51ZKP

 Contact resistance ≤10mΩ
Ambient temperature -55℃~+125℃ Insulation resistance

≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Medium pressure resistance 800V
Random vibration

Power spectral density is 0.4G2 /Hz and the root mean square value of

the total acceleration rate is 23.1G

Mechanical life

500 times
Impact

735m/s2 11ms

 Rated current

3 A

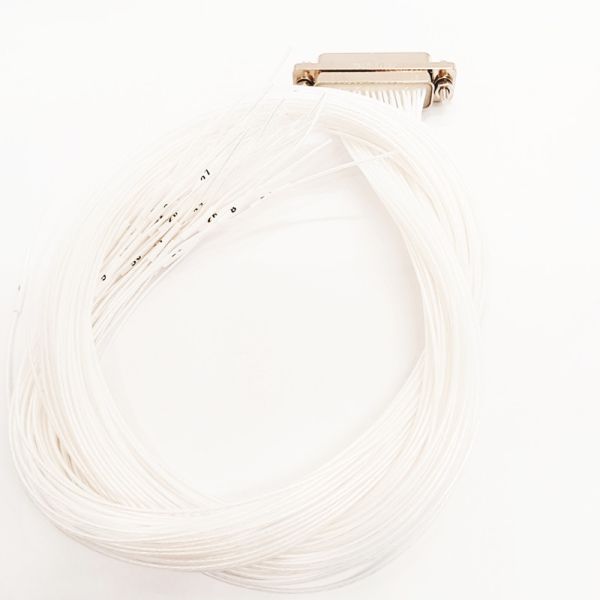

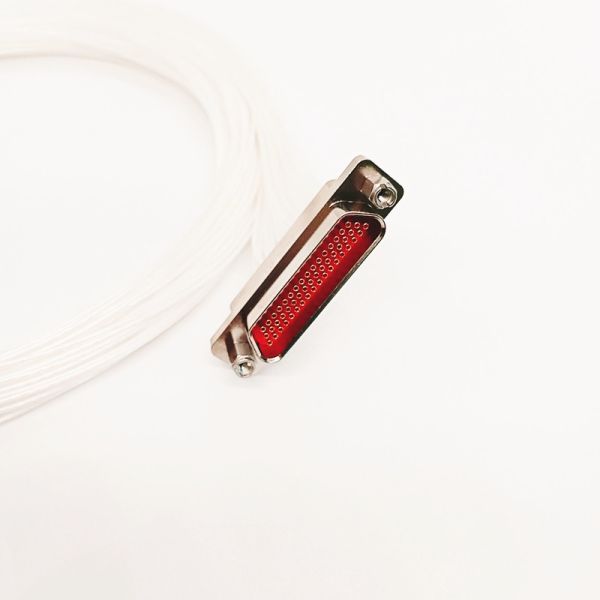

Physical product display

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Product appearance drawing

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Related product recommendations

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Product selection reference
Shell size

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Appearance diagram after matching

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Display of strength
Office area

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Production Plant Area
Machining production workshop

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Precision Assembly Production Workshop

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Glass-to-metal sealed production workshop

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Obtained Certification Certificate

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Customer visit

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Product packaging

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

Packaging and Shipping

MIL-DTL-83513 Compliant J30J Connector with 51-Pin Configuration and Aluminum Alloy Shell for High Reliability

  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
