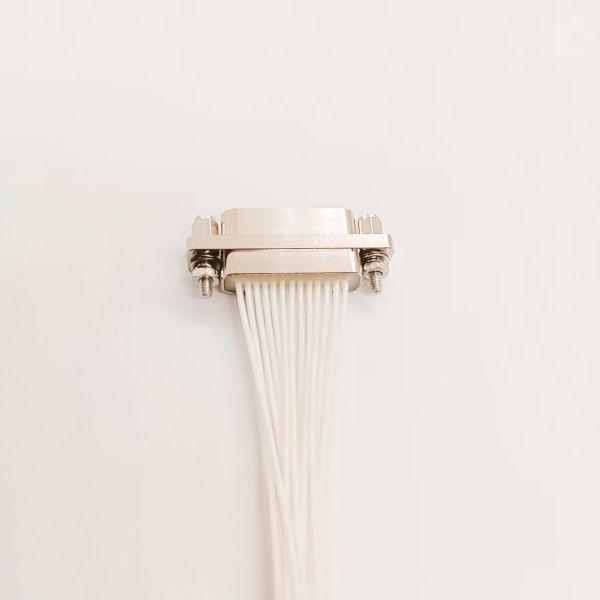

1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Specifications
Brand Name :
ZSX
Model Number :
J30J--25ZKP
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
D Shaped Connectors
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description
1.27mm D Shaped Connectors Metal Female Jack Connectors Compact J30J-25ZKP
J30J Series Micro-D Connectors

J30J-25ZKP Jack (Female) Connector - J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm.

The product is compact in size with a metal casing and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention.

Termination forms include crimping, direct insertion, bending insertion, and welding. The cross-sectional area of the crimped wire is 0.1mm² to 0.15mm², suitable for interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

Product Performance Details
Product Model J30J-25ZKP Contact Resistance ≤10mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 800V
Random Vibration Power spectral density 0.4G²/Hz, RMS acceleration 23.1G Mechanical Life 500 times
Impact 735m/s² 11ms Rated Current 3A
Physical Product Display
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Product Appearance Drawing
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Related Product Recommendations
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Product Selection Reference
Shell Size
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Appearance Diagram After Matching
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Display of Strength
Office Area
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Production Plant Area
Machining Production Workshop
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Precision Assembly Production Workshop
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Glass-to-Metal Sealed Production Workshop
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Obtained Certification Certificate
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Customer Visit
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Product Packaging
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
Packaging and Shipping
1.27mm Pitch Metal Body Micro-D Connector with 9-144 Pins for High-Density Applications
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities, ODM requirements)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea logistics options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
