Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Specifications
Brand Name :
ZSX
Model Number :
J30JM1-21ZKS19
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~51pins
Description
Glass Sintered Sealed J30J Connector 3A D Sub Female Connector J30JM1-21ZKS19
Product Overview
J30JM1 is a single-hole socket-type micro-rectangular electrical connector in the J30J series that adopts glass sintering sealing. It is specially designed for Aeronautics and Astronautics, aerospace, and precision electronic equipment that require high air tightness and high reliability. It complies with the GJB2446 (equivalent to MIL-C-83513) standard and can achieve stable electrical interconnection in harsh environments.
Product Performance Specifications
Product Model J30JM1-21ZKS19 Contact Resistance ≤30mΩ
Ambient Temperature -55℃~+125℃ Insulation Resistance ≥1000MΩ
Vibration 10Hz~2000Hz 196m/s² Medium Pressure Resistance 600V
Leakage Rate ≤1.0×10⁻³ Pa・cm³/s Mechanical Life 500 times
Impact 735m/s² 6ms Rated Current 3 A

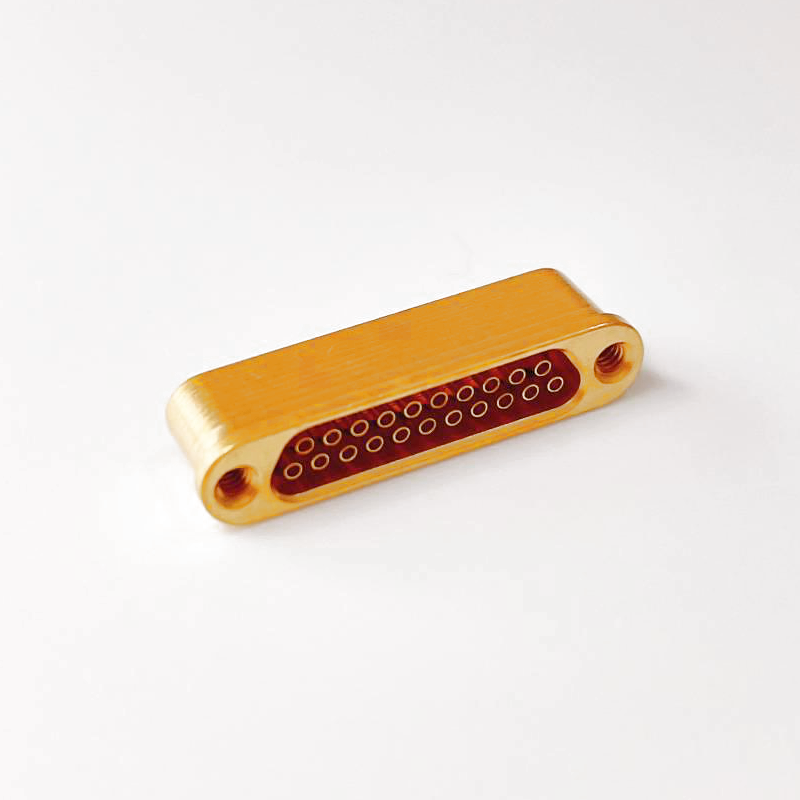

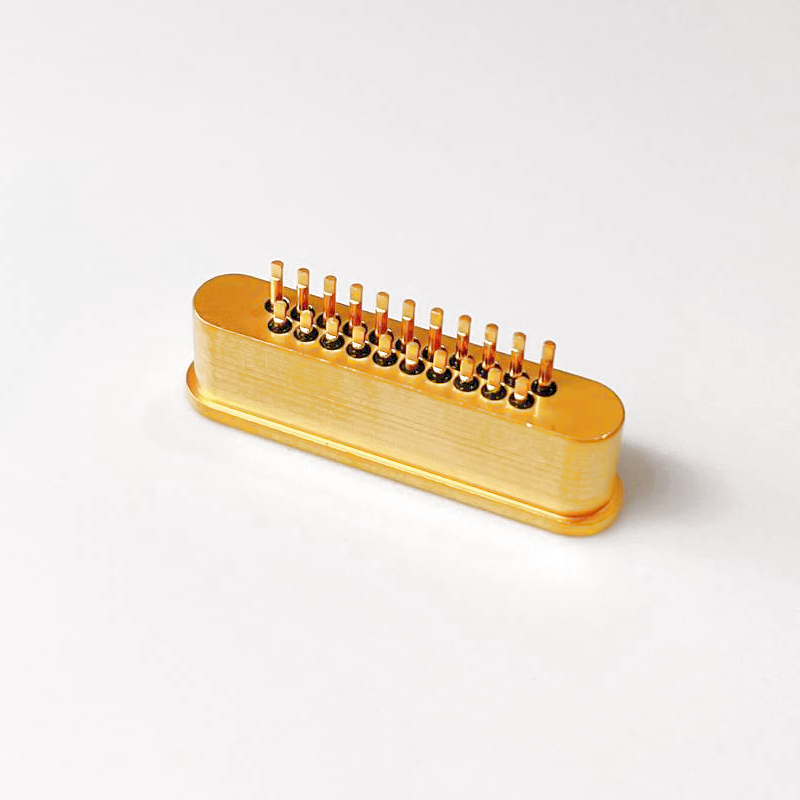

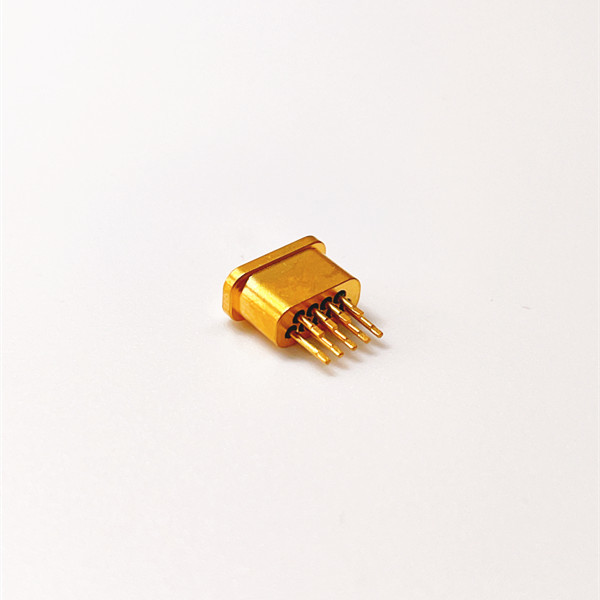

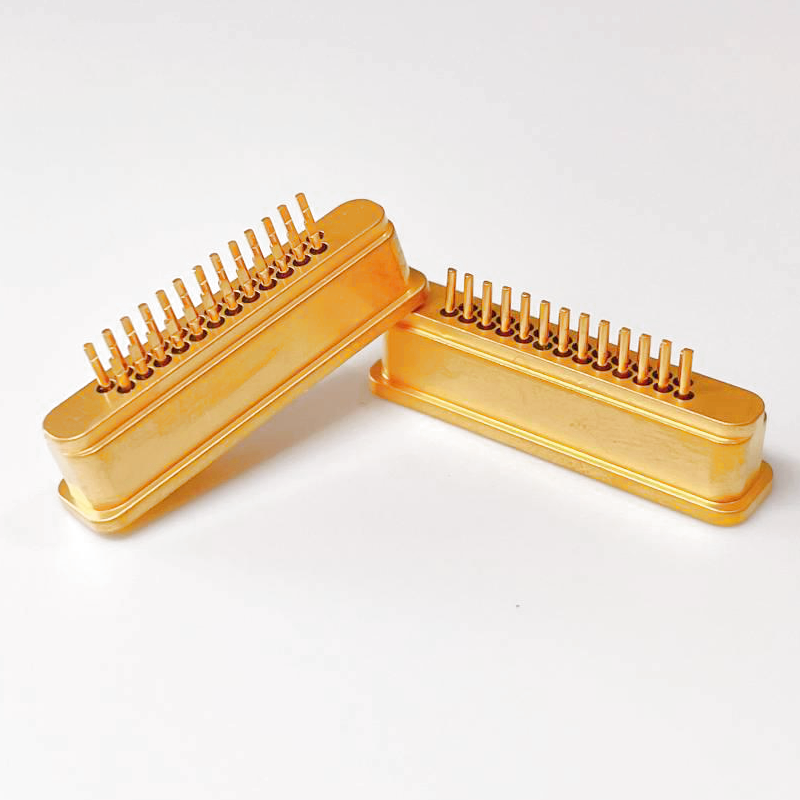

Product Images
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Related Products
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications

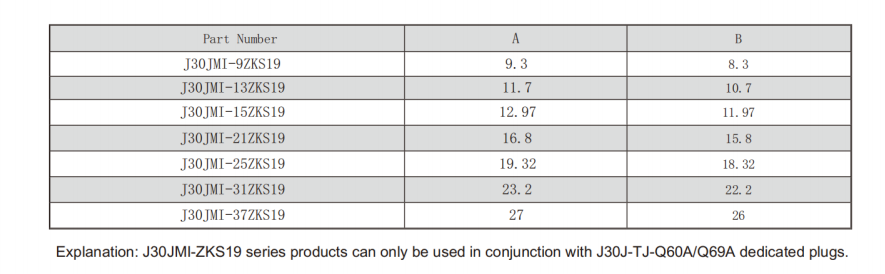

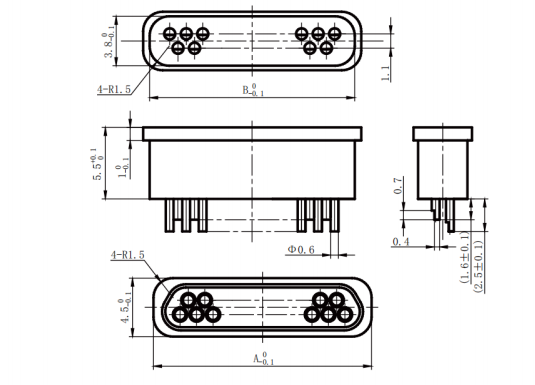

Selection Reference
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Company Facilities
Office Area
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Machining Production Workshop
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Precision Assembly Production Workshop
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass-to-Metal Sealed Production Workshop
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Certifications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Customer Visits
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Product Packaging
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
Packaging and Shipping
Glass Sintered Sealed J30J Micro-D Connector with 3A Rated Current for Aeronautics and Astronautics and Aerospace Applications
  • Standard export carton packaging
  • Customized specifications available including logo and other requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of aeronautics and astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea logistics options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
