J30J SERIES MICRO-D Rectangular Connectors J30J-51TJP

J30J series of micro rectangular electrical connectors comply with GJB2446A(equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets can be threaded locked, guided, and prevent misinsertion, etc. The termination forms include crimping, direct insertion, bending insertion, and welding, etc. Among them, the cross-sectional area of the crimped wire is 0.1mm ² to 0.15mm ², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

Product display

Product Performance Details

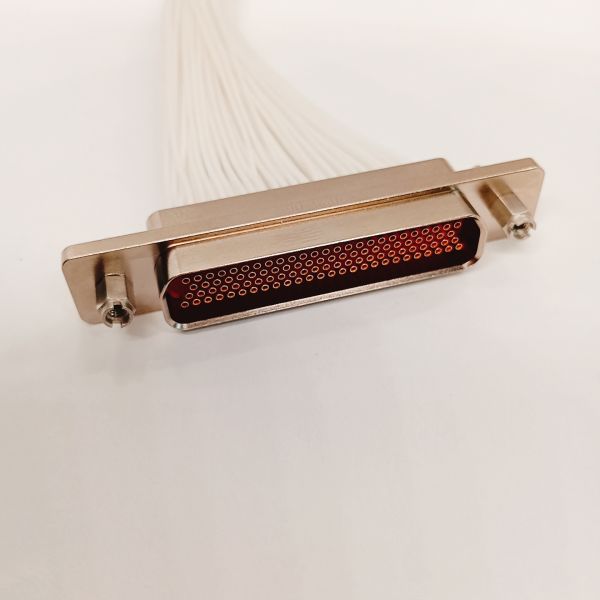

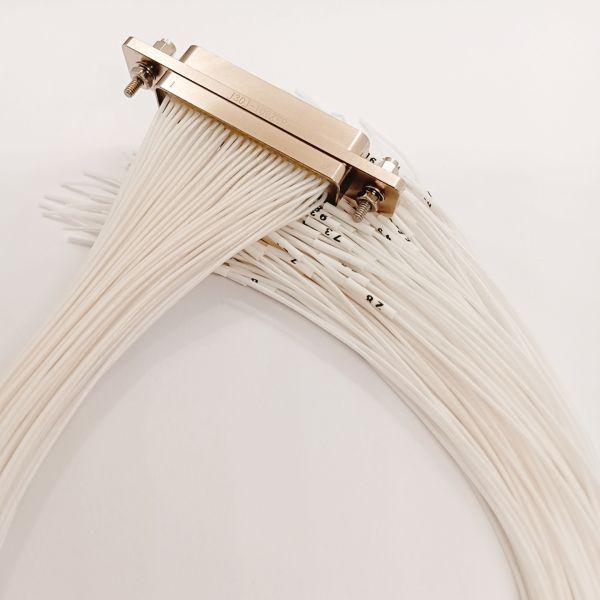

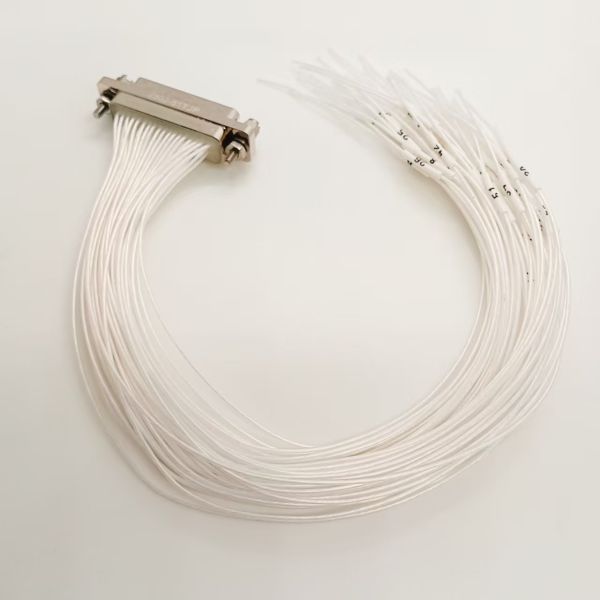

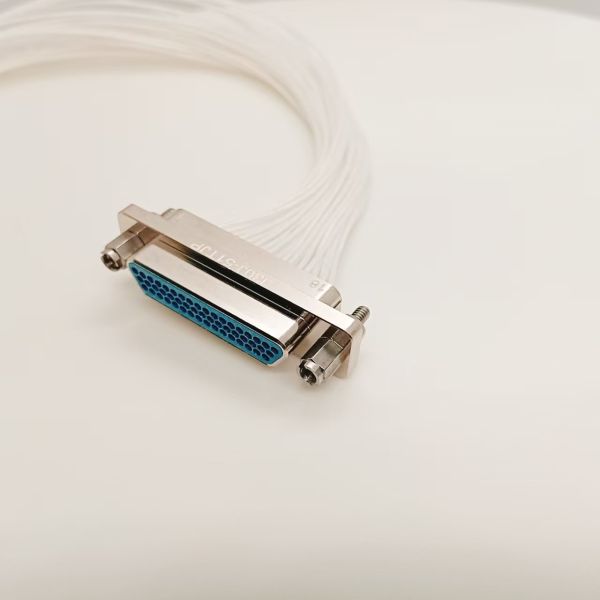

Physical product display

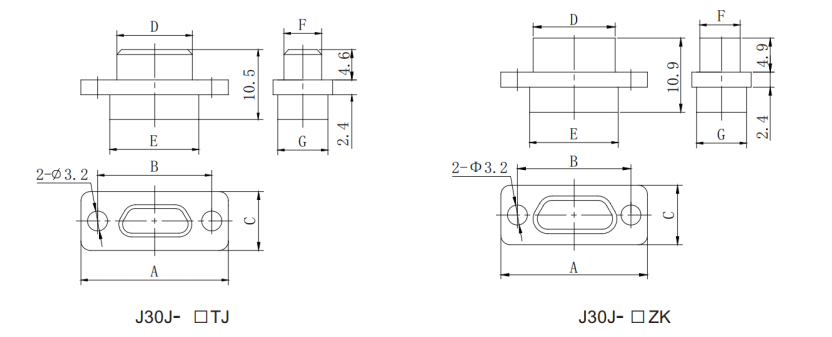

Product appearance drawing

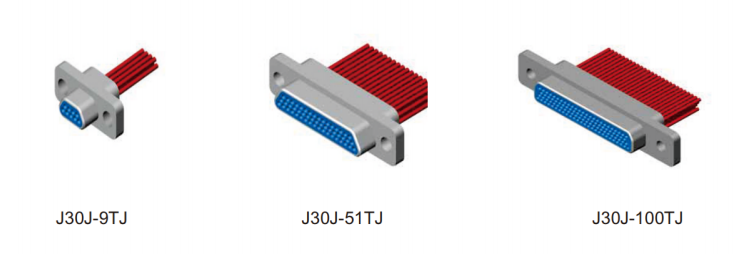

Related product recommendations

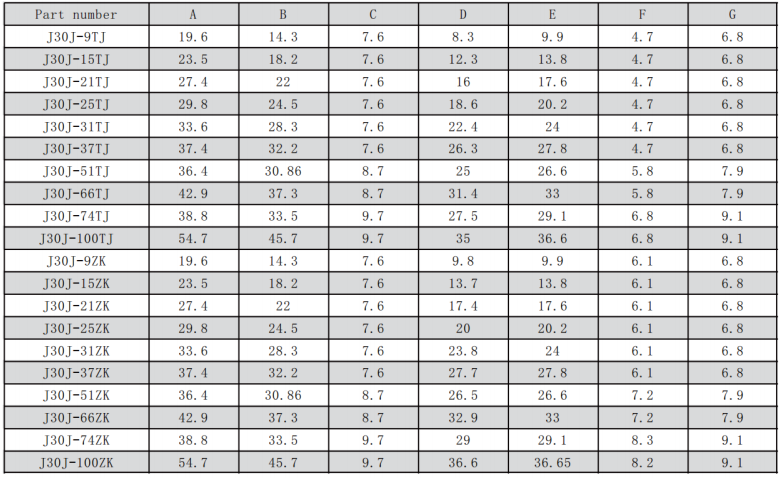

Product selection reference

Shell size

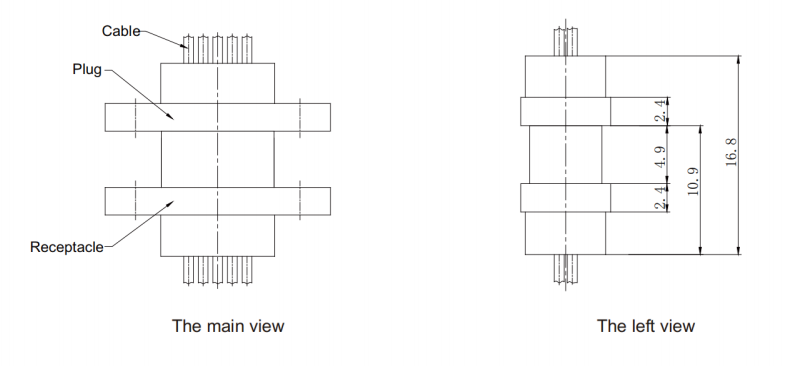

Appearance diagram after matching

Display of Strength

Office area

Production Plant Area

Machining production workshop

Precision Assembly Production Workshop

Glass-to-metal sealed production workshop

Obtained Certification Certificate

Customer visit

Product packaging

Packaging and Shipping

• Standard export carton
• As per customized specifications such as logo or others According to customers' requirements
• Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
