18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Specifications
Brand Name :
ZSX
Model Number :
SMP-KB3
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$3.95-$5.20(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Female RF Connector
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
18GHz Female RF Connector Soldering Type RF Coaxial Connector Small SMP-KB3 For 141 / Rg402 Cables
Product Overview

SMP Female Soldering Type SMP-KB3 For 141/Rg402 Cables. Radio Frequency Connectors (RF connectors) are separable electronic components installed on cables or equipment for transmitting radio frequency signals. They are used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz and play a key role in communication, aerospace, and other fields.

SMA series RF coaxial connectors feature small size, wide frequency band, superior mechanical performance, and high reliability, making them among the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP continue to evolve, capable of meeting blind insertion requirements for high-density devices while reducing equipment space, aligning with the development direction of electronic device miniaturization.

Product Specifications
Product Model SMP-KB2 Dielectric Constant ≥5000MΩ
Characteristic Impedance 50 ohm Body Material Gold-plated brass
Frequency Range DC-18GHz Central Conductor Gold-plated brass
Voltage Standing Wave Ratio ≤1.25 Insulator Material PTFE
Medium Pressure Resistance ≥2500V RMS, 50Hz, at sea level Durability ≥500 Cycles
Contact Resistance Center contact: ≤6mΩ
Outer contact: ≤2mΩ		 Temperature Range -45℃ to +125℃

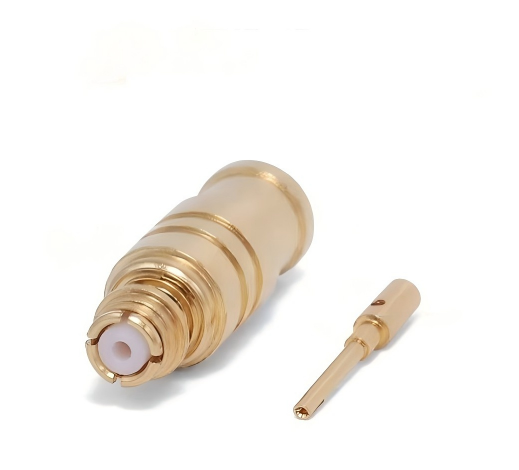

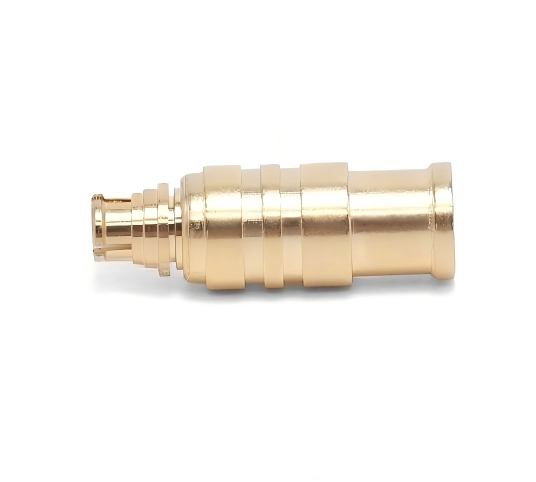

Product Images
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables

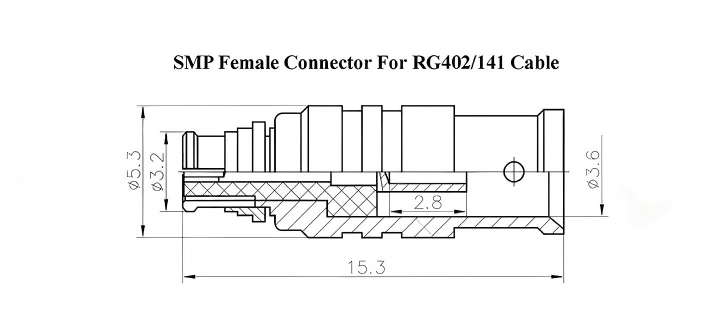

Product Dimensions
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Related Products
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Company Overview
Office Area
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Production Facilities
Machining Production Workshop
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Precision Assembly Production Workshop
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Glass-to-Metal Sealed Production Workshop
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Certifications
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Customer Visits
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
Packaging & Shipping
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
18GHz Frequency Range SMP-KB3 Female RF Connector with Gold-plated Brass and PTFE Insulator for 141/RG402 Cables
  • Standard export carton packaging
  • Custom specifications available including logo and other requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea logistics options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
