6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
Specifications
Brand Name :
ZSX
Model Number :
SMP-C-KW-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.98-$2.65(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector SMP Right Angel Female Crimping Type SMP-C-KW-1.5

Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.

Product display

Product Performance Details

Product model

 SMP-C-KW-1.5 Dielectric constant
≥5000MΩ

Characteristic impedance

 50 ohm Body material
Gold-plated brass

Frequency range

 DC-6GHz

Central conductor

 Gold-plated brass

Voltage standing wave ratio

 ≤1.2 Insulator material PTFE

Medium pressure resistance

 ≥2500V RMS ,50hz, at sea level Durability ≥500 Cycles

Contact resistance

Center contact:≤6mΩ

Outer contact:≤2mΩ

 Temperature range -45℃~+125℃

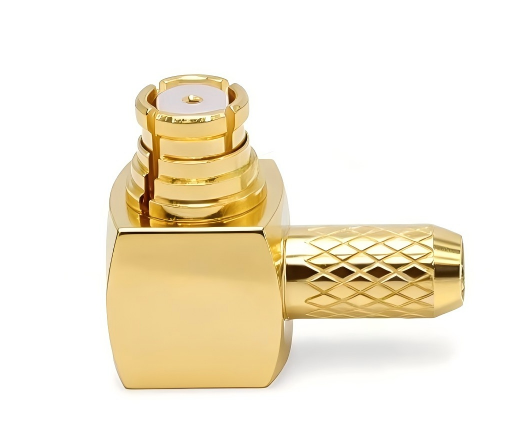

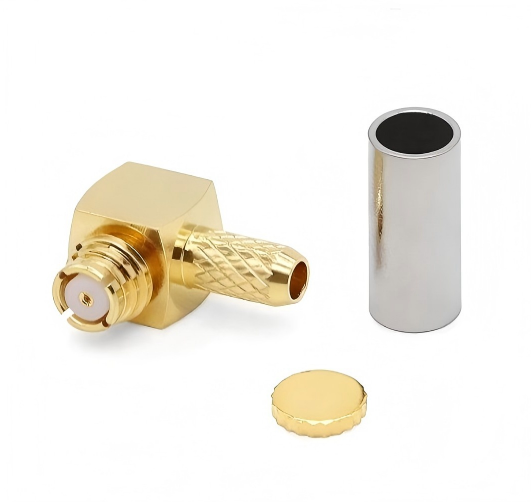

Physical product display

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

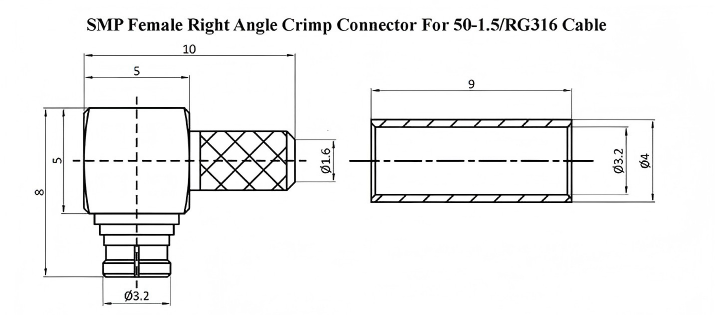

Product external dimensions

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

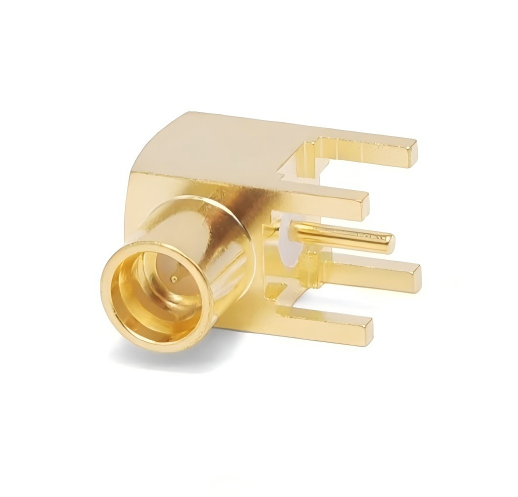

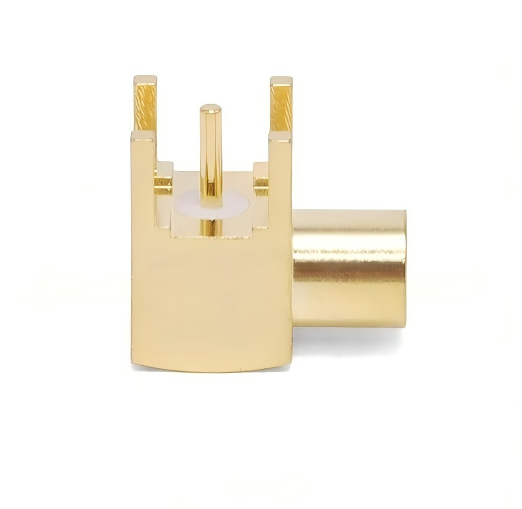

Related product recommendations

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Display of Strength

Office area

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Production Plant Area

Machining production workshop

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Precision Assembly Production Workshop

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Glass-to-metal sealed production workshop

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Obtained Certification Certificate

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.56GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Customer visit

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Product packaging

6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5

Packaging and Shipping 6GHz RF Connector SMP Right Angle Female Connector Crimping Type SMP-C-KW-1.5
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
