DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Specifications
Brand Name :
ZSX
Model Number :
SMA-JFD275
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
PCB SMA Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
RF Connector SMA-JFD275 Male 4 Holes PCB Connector

Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.

Product display
Product Performance Details
Product model SMA-JFD275 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Stainless steel
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact : ≤2mΩ Temperature range -45℃~+125℃

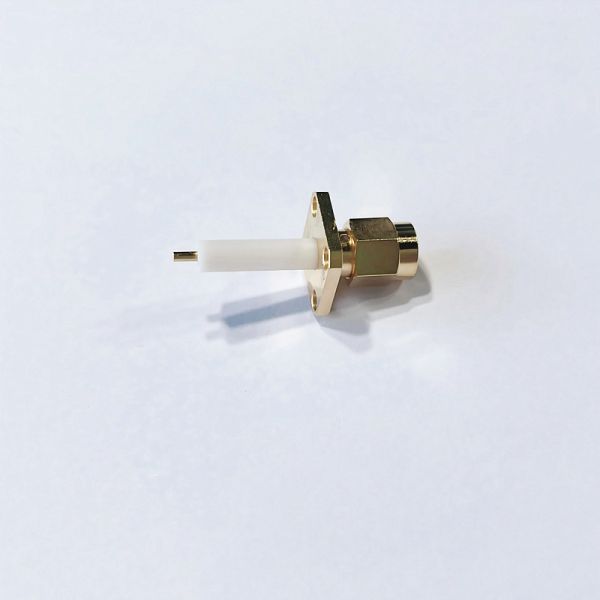

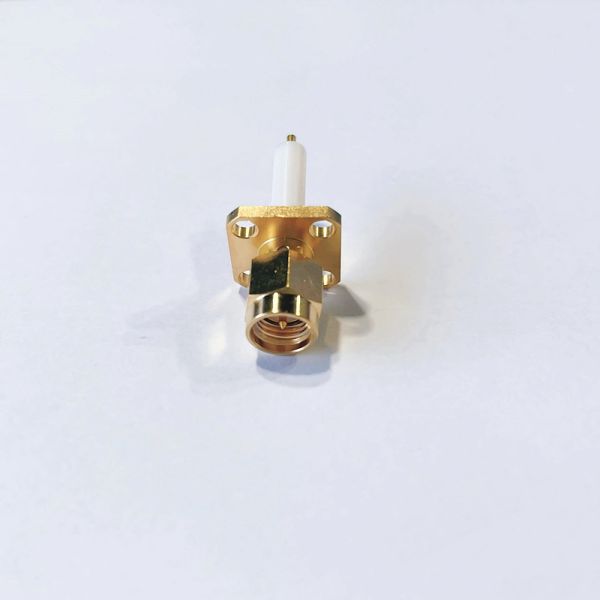

Physical product display
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275

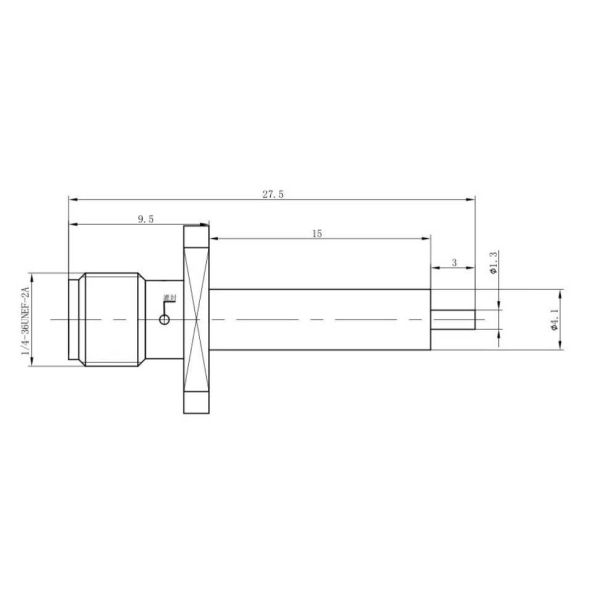

Product external dimensions
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Related product recommendations
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Display of Strength

Production Plant Area
Machining production workshop
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Precision Assembly Production Workshop
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Glass-to-metal sealed production workshop
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Obtained Certification Certificate
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Customer visit
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Product packaging
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275 DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
Packaging and Shipping
DC-6GHz PCB SMA Connector Male 4 Hole Connector SMA-JFD275
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
