Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Specifications
Brand Name :
ZSX
Model Number :
J30J--37ZKP
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
100000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
J30J Connector
Gender :
Female
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
9~144 pins
Description
Female J30J Connector 9 Pin - 144 Pin Mini D Sub Connector J30J-37ZKP
Micro-D Connectors J30J-37ZKP Jack (Female) Connector

The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They feature precision twisted wire elastic pins (precision twist pins) with a contact piece spacing of 1.27mm. The compact product design utilizes metal casing available in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention. Termination forms include crimping, direct insertion, bending insertion, and welding, with crimped wire cross-sectional area of 0.1mm² to 0.15mm², suitable for high-density, miniaturized, lightweight, and high-reliability electronic and electrical system interconnections.

Product Performance Details
Product ModelJ30J-37ZKPContact Resistance≤10mΩ
Ambient Temperature-55℃~+125℃Insulation Resistance≥5000MΩ
Vibration10Hz~2000Hz 196m/s²Medium Pressure Resistance800V
Random VibrationPower spectral density 0.4G²/Hz, RMS acceleration 23.1GMechanical Life500 times
Impact735m/s² 11msRated Current3A

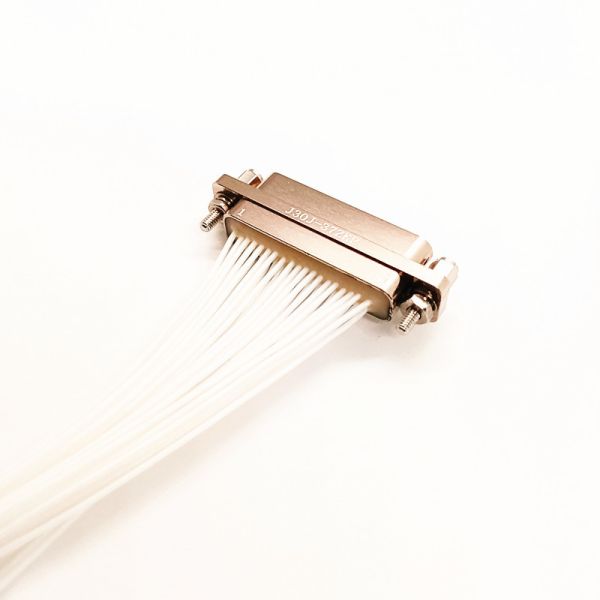

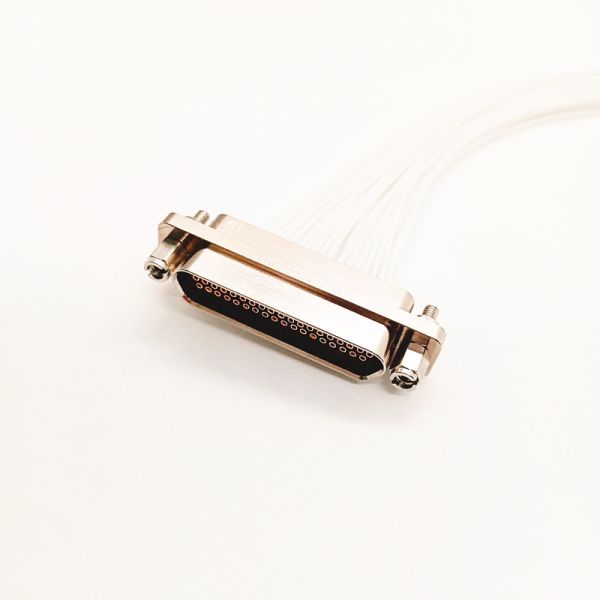

Physical Product Display
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance

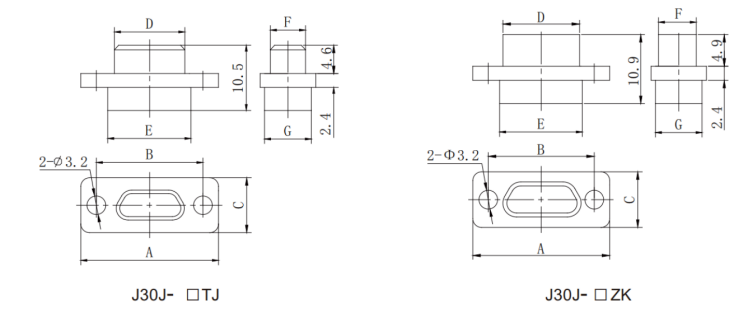

Product Appearance Drawing
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance

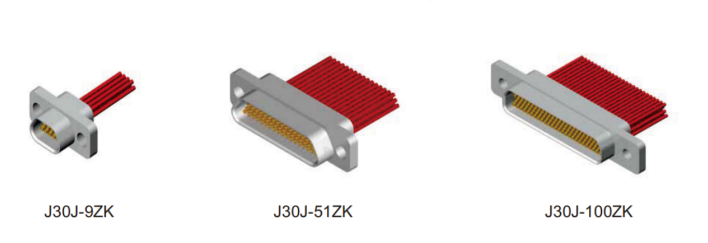

Related Product Recommendations
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance

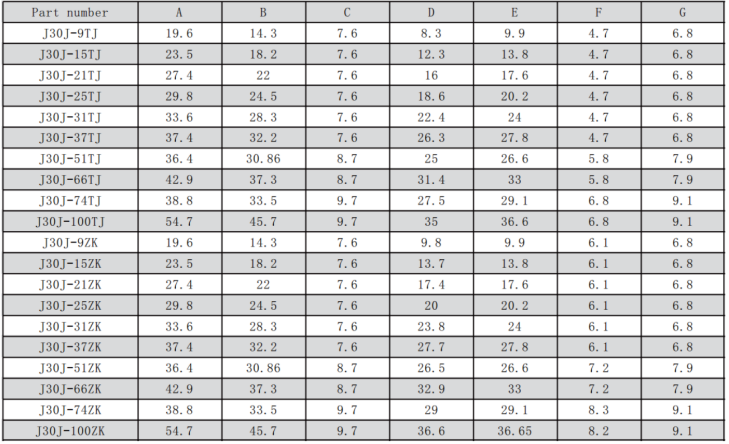

Product Selection Reference
Shell Size
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance

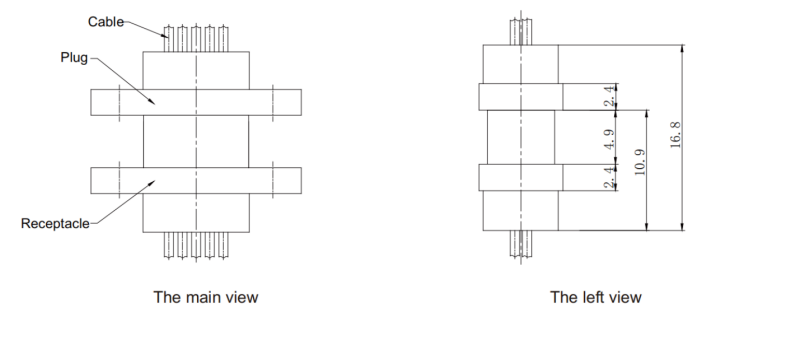

Appearance Diagram After Matching
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Office Area
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Production Plant Area
Machining Production Workshop
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Precision Assembly Production Workshop
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Glass-to-Metal Sealed Production Workshop
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Obtained Certification Certificate
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Customer Visit
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Product Packaging
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature ResistanceFemale J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
Packaging and Shipping
Female J30J Connector 9~144 Pin Mini D Sub Connector with Metal Body and High Temperature Resistance
  • Standard export carton packaging
  • Customized specifications including logo and other requirements according to customer needs
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM (Original Design Manufacturing) services.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. Pricing is higher for orders under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also provide air and sea freight options.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
