Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Specifications
Brand Name :
ZSX
Model Number :
MS3112E14-4P
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
MS Connector
Gender :
Male
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description
MS3112E14-4P MIL-DTL-26482 MS Series 4 Pins Circular Plug Male Connector

MS series circular connectors comply with GJB598A-96(MIL-DTL-26482), featuring a bayonet type quick connection. The termination form is welding, and the socket installation options include flange type, cable type, wall-penetrating type, and nut clamping type, among others. The five-key position has a blind insertion function. Plug and socket can be equipped with both pins and holes.It is widely applied in the connection between electronic and electrical equipment in aviation, aerospace, navigation, power and other fields.

Product display
Product Performance Details
Product model MS3112E14-4P Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 25A

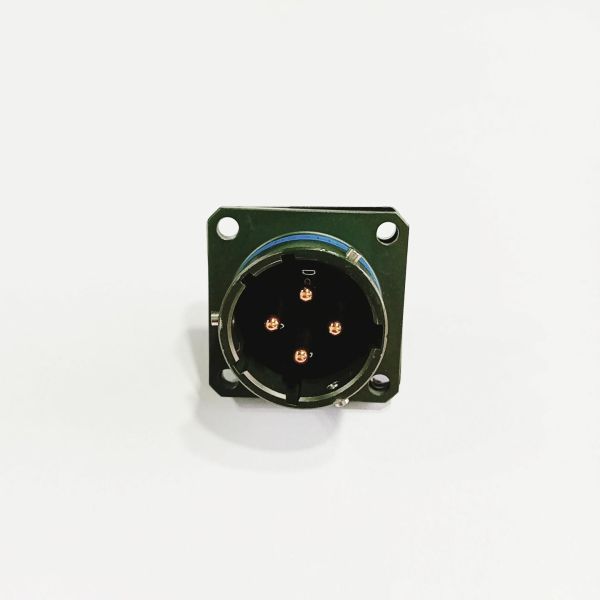

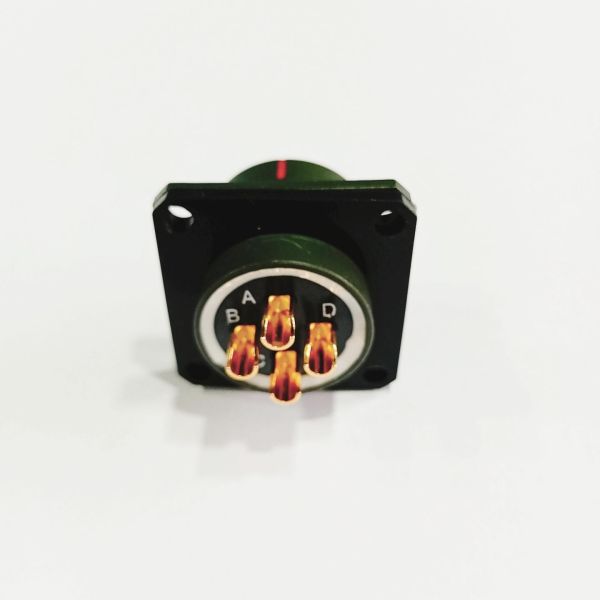

Physical product display
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P

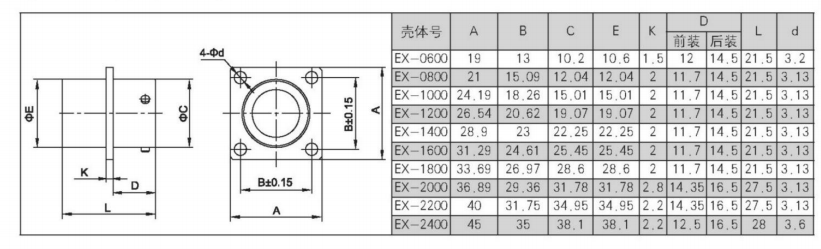

Product external dimensions
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Related product recommendations
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Display of Strength
Production Plant Area
Machining production workshop
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Precision Assembly Production Workshop
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Glass-to-metal sealed production workshop
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Obtained Certification Certificate
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4PCircular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Customer visit
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Product packaging
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
Packaging and Shipping
Circular MS Connector 4 Pin MIL-DTL-26482 Connector MS3112E14-4P
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
