1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Specifications
Brand Name :
ZSX
Model Number :
MS3112E14-12PNN
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
MIL-DTL-26482 Connectors
Gender :
Male
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description
MIL-DTL-26482 MS Series 12 Pins Circular Plug Male Connector MS3112E14-12PNN

MS series circular connectors comply with GJB598A-96(MIL-DTL-26482), featuring a bayonet type quick connection. The termination form is welding, and the socket installation options include flange type, cable type, wall-penetrating type, and nut clamping type, among others. The five-key position has a blind insertion function. Plug and socket can be equipped with both pins and holes.It is widely applied in the connection between electronic and electrical equipment in aviation, aerospace, navigation, power and other fields.

Product display
Product Performance Details
Product model MS3112E14-12PNN Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 25A

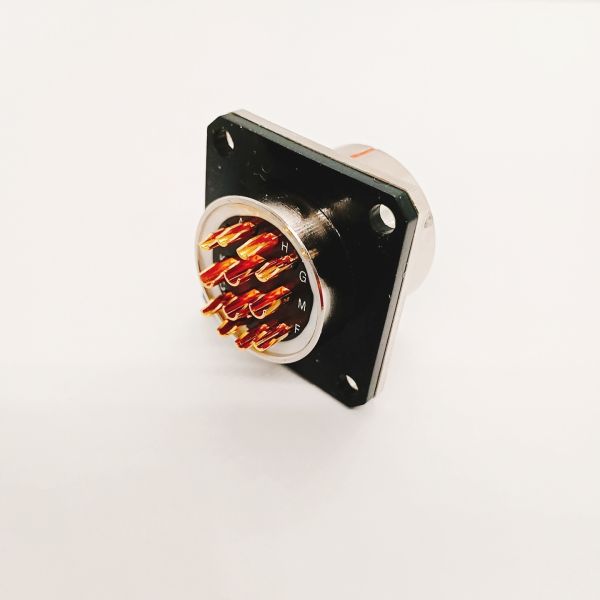

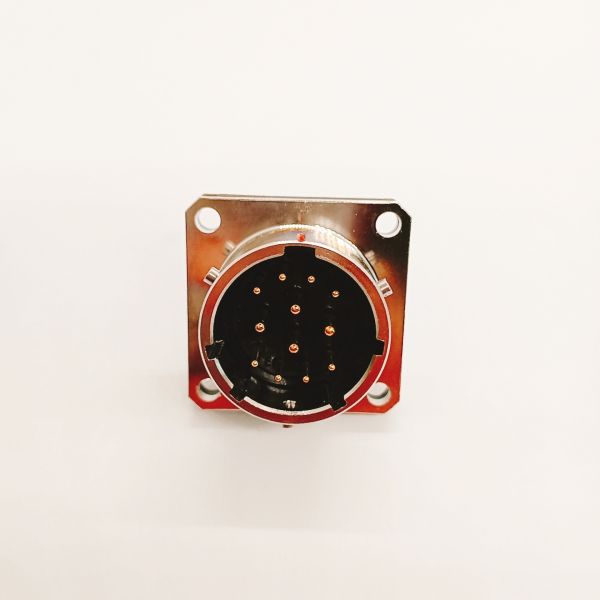

Physical product display
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Product external dimensions
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Related product recommendations
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Display of Strength
Office area
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Production Plant Area
Machining production workshop
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Precision Assembly Production Workshop
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Glass-to-metal sealed production workshop
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Obtained Certification Certificate
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Customer visit
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Product packaging
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection 1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
Packaging and Shipping
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
1500V Withstand Voltage MIL-DTL-26482 Circular Connector with Aluminum Alloy Body and Bayonet Quick Connection
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
