Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Specifications
Brand Name :
ZSX
Model Number :
YH3116F-12-10P
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Aviation Plug Connector
Gender :
Male
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description
YH3116F-12-10P YH Series Circular Connector 10 Pin Plug Connector With Backshell

The shell of the YH series products is made of high-strength aluminum alloy material and connected by a bayon-type outer groove. It features a small volume, light weight, ease of use, resistance to plugging and unplugging, good sealing performance, corrosion resistance, good electrical conductivity and excellent pressure resistance. And it can be interchanged with the YP series, making it an ideal replacement for the old-fashioned P-type connectors. It is widely applicable to the circuit connection between electrical equipment and various instruments and meters.

Product display
Product Performance Details
Product model YH3116F-12-10P Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 490m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 7.5 A

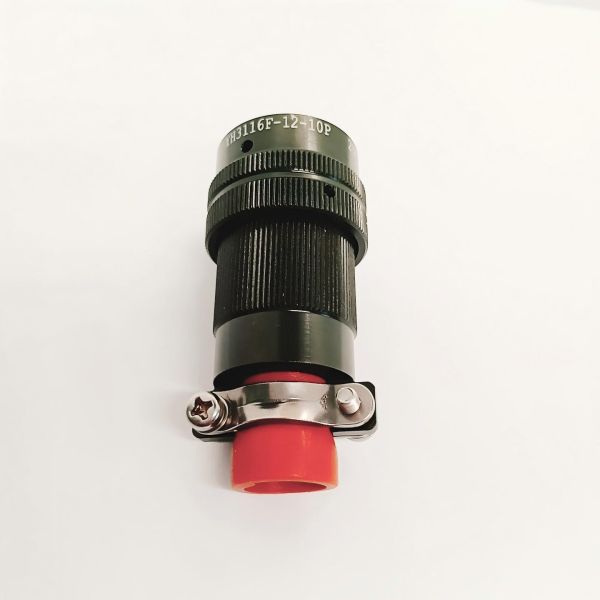

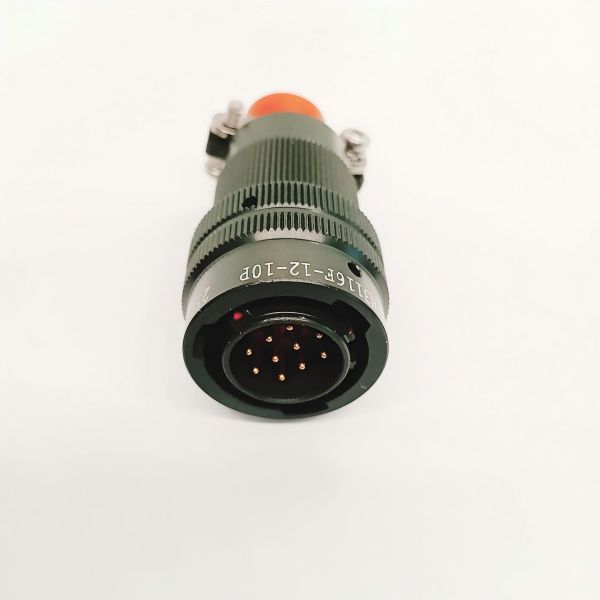

Physical product display
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell

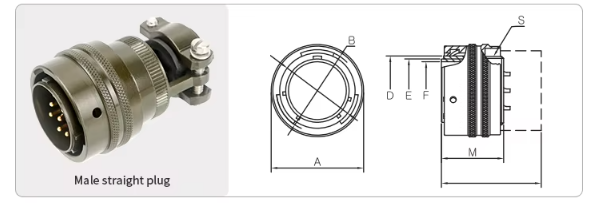

Product external dimensions
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Related product recommendations
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Display of Strength
Office area
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Production Plant Area
Machining production workshop
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Precision Assembly Production Workshop
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Glass-to-metal sealed production workshop
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Obtained Certification Certificate
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Customer visit
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Product packaging
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
Packaging and Shipping
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Aluminum Alloy Aviation Plug Connector Circular 10 Pin Plug Connector Small With Backshell
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
