50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
Specifications
Brand Name :
ZSX
Model Number :
SMC-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.80-$0.99(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
SMC Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector SMC-C-J-1.5 SMC Male Crimping Type Connector For Rg316

SMC connector is a miniaturized threaded locking type RF coaxial connector, an important branch of the Subminiature series of RF connectors. It focuses on high reliability and wideband transmission capability. It adopts a coaxial structure and its size lies between that of SMA connectors and the miniature derivative models of SMC. The housing diameter is approximately 4.8mm. Adapt to high-density installation requirements. The inner conductor is made of beryllium bronze with gold plating to ensure low contact resistance and wear resistance. The insulator is made of polytetrafluoroethylene (PTFE), which features high-temperature resistance and low dielectric loss. The shells are mostly nickel-plated or gold-plated brass to enhance corrosion resistance and electromagnetic shielding effects.It features an anti-misinsertion polarization design. Some models are equipped with positioning keys to prevent device damage caused by reverse insertion and removal. It is widely compatible with interconnection scenarios of RF modules, communication equipment and test instruments

Product display
Product Performance Details
Product model SMC-C-J-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤5mΩ

Outer contact:≤2.5mΩ

 Temperature range -45℃~+125℃

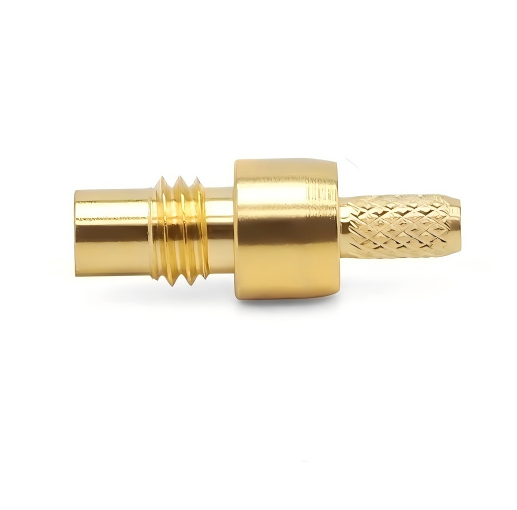

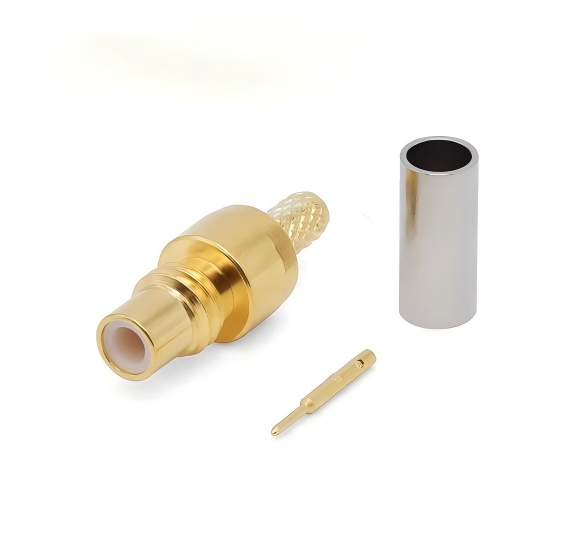

Physical product display

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg31650 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

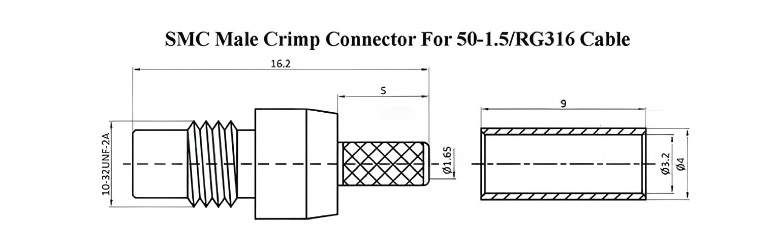

Product external dimensions

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Related product recommendations

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Display of Strength
Office area

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Production Plant Area
Machining production workshop

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Precision Assembly Production Workshop

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Glass-to-metal sealed production workshop

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Obtained Certification Certificate

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg31650 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Customer visit

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Product packaging

50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316

Packaging and Shipping
  • Standard export carton 50 Ohm SMC Connector RF Crimp Style Connectors ODM SMC-C-J-1.5 For Rg316
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
