Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Specifications
Brand Name :
ZSX
Model Number :
SSMC-C-J-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$1.70-$2.26 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Radio Frequency Connectors
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

SSMC-J3 SSMC-C-J-1.5 Gold Plated Brass SSMC Male Crimp Type Connector For Rg316/Rg174 Cable

SSMC-C-J-1.5 is a compact 50Ω RF coaxial connector operating up to 12.4 GHz, featuring gold-plated contacts, high-performance insulation, and a threaded coupling design for excellent anti-vibration and durability. It supports PCB mounting and is widely used in aerospace, aerospace, avionics and high-frequency communication systems. We provide full ODM & OEM customization services to meet your specific requirements.

Product display
Product Performance Details
Product model SSMC-C-J-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤5mΩ
Outer contact:≤2.5mΩ		 Temperature range -45℃~+125℃

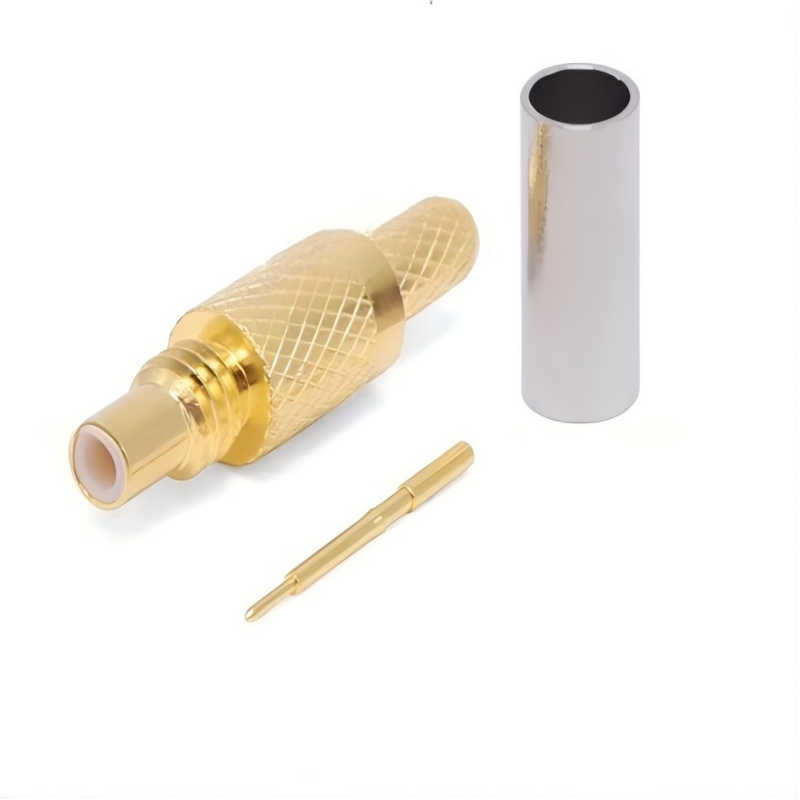

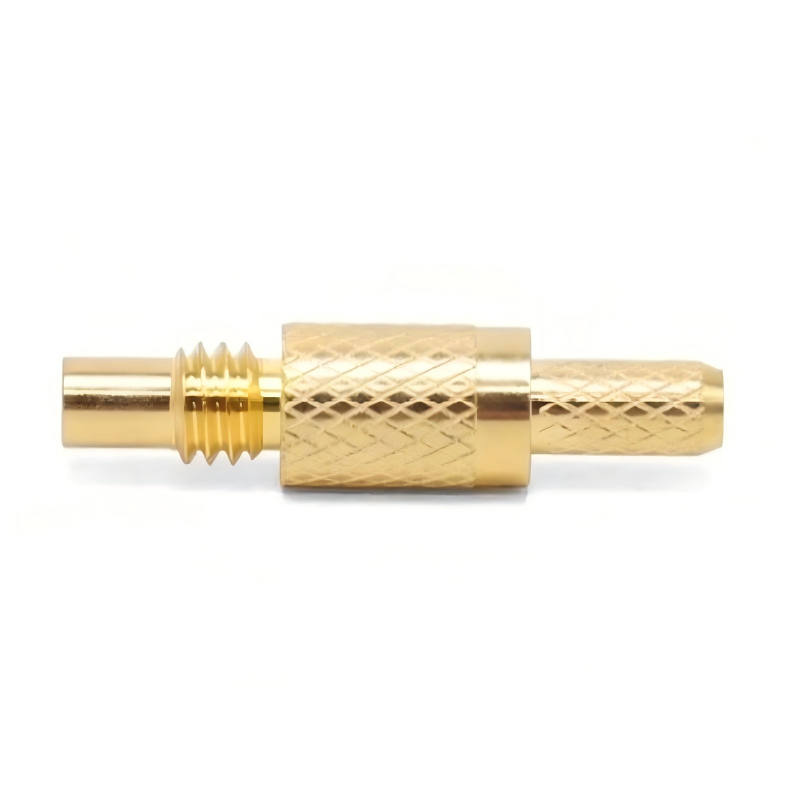

Physical product display
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications

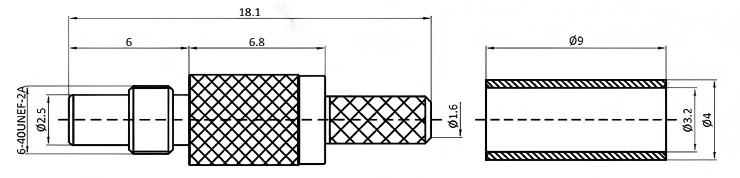

Product external dimensions
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Related product recommendations
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Display of Strength

Production Plant Area
Machining production workshop
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Precision Assembly Production Workshop
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Glass-to-metal sealed production workshop
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Obtained Certification Certificate
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Customer visit
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Product packaging
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
Packaging and Shipping
Gold Plated Brass SSMC Connector with 50Ω Impedance and DC-6GHz Frequency Range for RF Applications
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
