Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Specifications
Brand Name :
ZSX
Model Number :
Y50X-0802ZK14
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
PT Series Connector
Gender :
Female
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description
Aviation Y50X Series Female Connector Y50X-0802ZK14

Y50 series circular electrical connector is a Aeronautics and Astronautics high-reliability connector independently developed in China, conforming to the national Aeronautics and Astronautics standard GJB 101A-1997. It features resistance to harsh environments, multi-core integration, and rapid connection. It adopts a circular bayonet locking structure, and the plug and socket can be quickly connected and locked through a rotating bayonet. Compared with threaded connections, The insertion and extraction efficiency has been increased by more than 50%, and after locking, it has strong anti-vibration and anti-shock capabilities and is not easy to loosen. The shell is made of high-strength alloy materials (such as brass and aluminum alloy), and its surface undergoes anti-corrosion treatments such as cadmium plating and zinc plating passivation, making it suitable for harsh environments like dampness and salt spray. The internal insulating parts are made of high-temperature resistant thermosetting plastics (such as phenolic glass fiber) to ensure stable insulation performance. Equipped with an anti-misinsertion polarization design, it distinguishes models by different key angles or keyway numbers, completely avoiding equipment short circuits or damage caused by misinsertion. It is widely used in fields such as aerospace, defense equipment, and rail transit, where connection stability is strictly required.

Product display
Product Performance Details
Product model Y50X-0802ZK14 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 25A

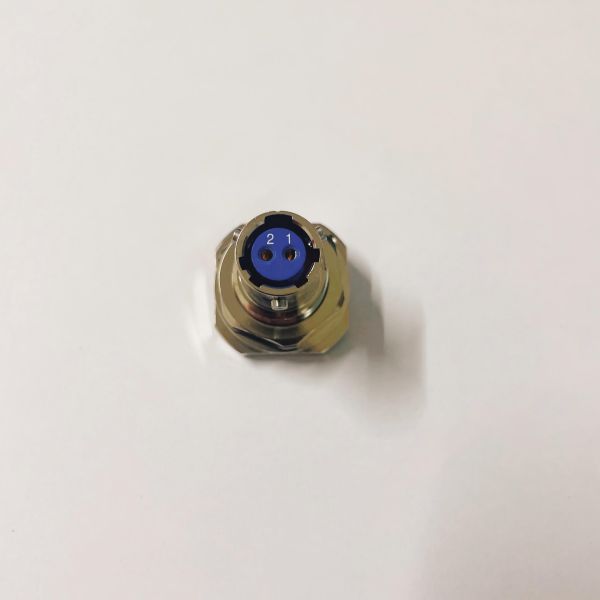

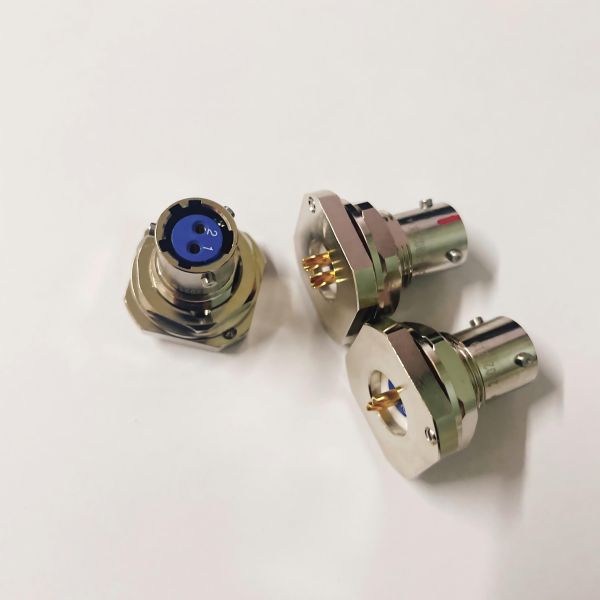

Physical product display
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell

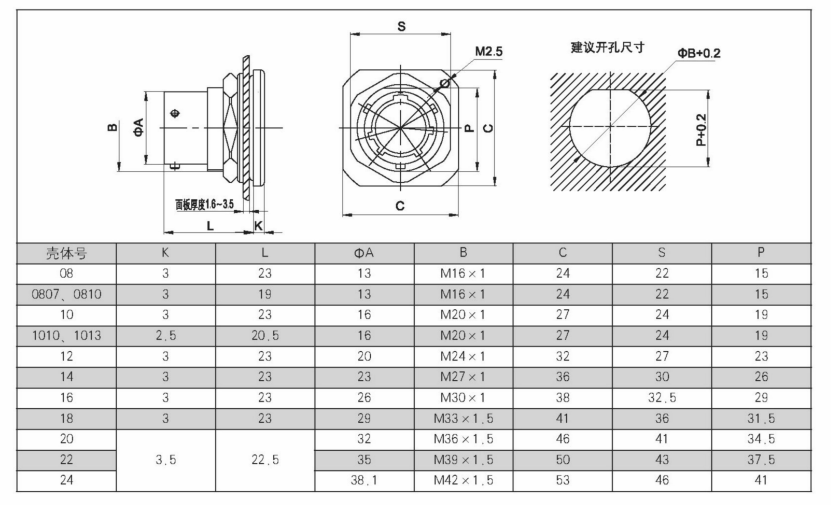

Product external dimensions
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Related product recommendations
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Display of Strength
Production Plant Area
Machining production workshop
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Precision Assembly Production Workshop
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Glass-to-metal sealed production workshop
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Obtained Certification Certificate
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Customer visit
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Product packaging
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
Packaging and Shipping
Y50X Aeronautics and Astronautics Circular Connector Female Aviation Electrical Connector with 25A Working Current 1500V Withstand Voltage and Aluminum Alloy Shell
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
