Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Specifications
Brand Name :
ZSX
Model Number :
Y50X-0807TJ1
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$13.85-$18.20 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Y50X Series Connector
Gender :
Male
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description

Y50X-0807TJ1 Straight Plug 7 Pin Connector For Aerospace & Industrial Equipment

Y50X-0807TJ1 is a 7-pin bayonet-style circular connector built to meet GJB101A-97 specifications, delivering stable and reliable electrical connections in harsh operating environments. Featuring a compact size 08 shell, quick bayonet coupling for fast installation and maintenance, and gold-plated contacts for low resistance and high conductivity, this connector ensures excellent performance under vibration, shock, temperature changes, humidity and corrosion. Designed as a straight plug with male pins and a strain-relief tail clamp, it is widely applied in aerospace equipment, communication systems, industrial control, automotive electronics and marine devices where durable and secure interconnections are required.

Product display
Product Performance Details
Product model Y50X-0807TJ1 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 25A

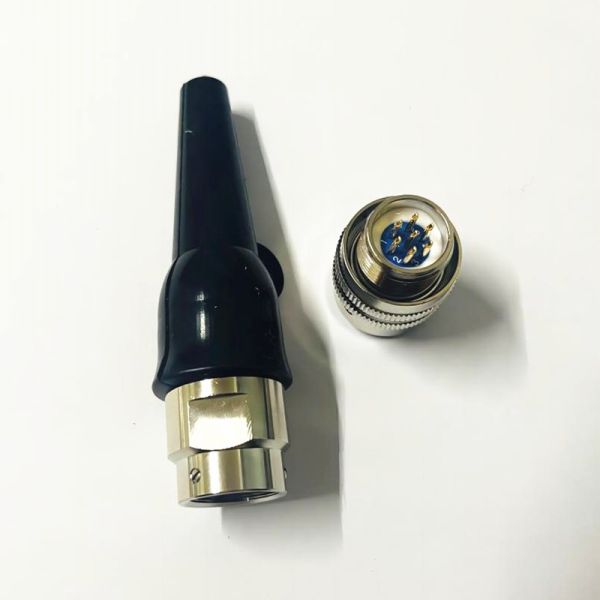

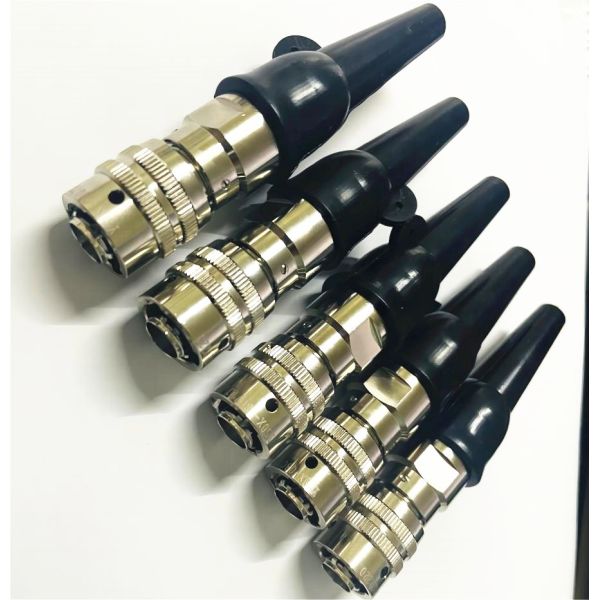

Physical product display
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Product external dimensions

Related product recommendations
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Display of Strength
Production Plant Area
Machining production workshop
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Precision Assembly Production Workshop
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Glass-to-metal sealed production workshop
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Obtained Certification Certificate
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Customer visit
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Product packaging
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
Packaging and Shipping
Y50X-0807TJ1 7 Pin Circular Connector with Aluminum Alloy Shell, Gold-Plated Contacts, and Bayonet Coupling for Aerospace & Industrial Equipment
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
