Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Specifications
Brand Name :
ZSX
Model Number :
N-C-J-4
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$0.99 --$1.25 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
N Connector
Gender :
Male
Boday Material :
Nickel-plated brass
Insulator material :
Brass
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector N Type For Crimping With LMR240 Coaxial Cable

RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.

Product display
Product Performance Details
Product model N-C-J-4 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Connection sleeve Nickel-plated brass
Medium pressure resistance ≥2500V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤1mΩ
Outer contact:≤1mΩ		 Temperature range -45℃~+125℃

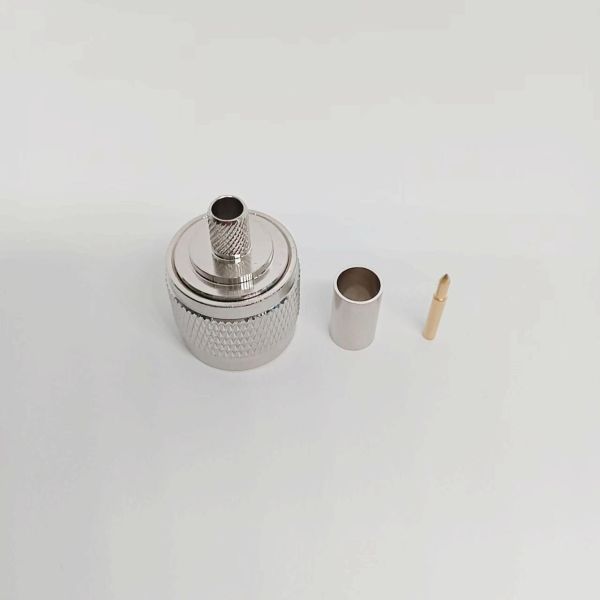

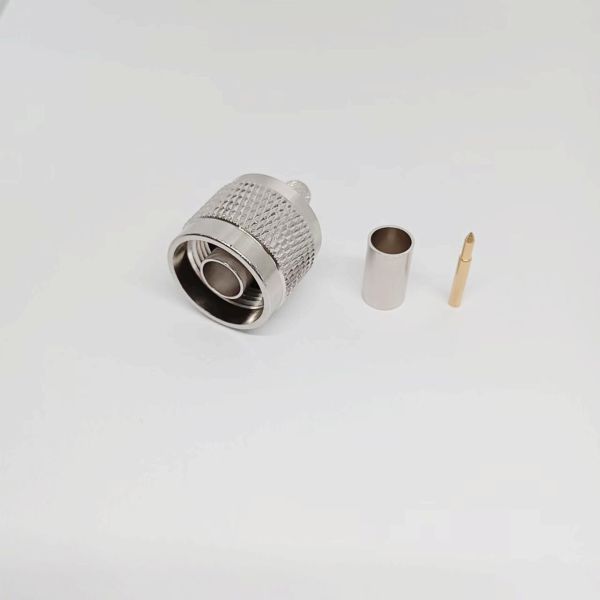

Physical product display
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping

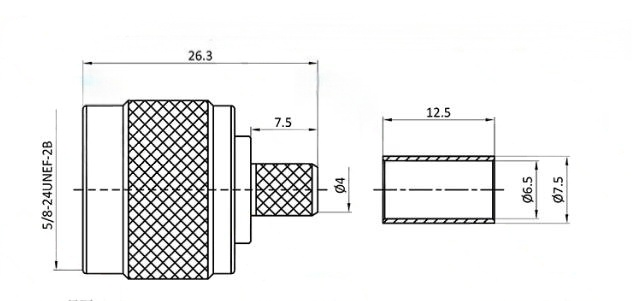

Product external dimensions
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Related product recommendations
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Display of Strength

Production Plant Area
Machining production workshop
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Precision Assembly Production Workshop
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Glass-to-metal sealed production workshop
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Obtained Certification Certificate
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Customer visit
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Product packaging
Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
Packaging and Shipping
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements Male N Connector DC-6GHz LMR 240 N Type Connector ODM For Crimping
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
