DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Specifications
Brand Name :
ZSX
Model Number :
N-K-1/2S
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.55-$1.98 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
N Type Female Connectors
Gender :
Female
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
DC-3GHz N Type Female Connectors RF Feeder Cable Connector

N-type Female RF Feeder Connector For 1/2 And 50-9 Super-flexible Cables. Radio Frequency Connectors (RF connectors) are separable electronic components installed on cables or equipment for the transmission of radio frequency signals, used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz.

Product Performance Specifications
Product Model N-K-1/2S Dielectric Constant ≥5000MΩ
Characteristic Impedance 50 ohm Body Material Gold-plated brass
Frequency Range DC-3GHz Central Conductor Gold-plated brass
Voltage Standing Wave Ratio ≤1.15 Insulator Material PTFE
Medium Pressure Resistance ≥2500V RMS, 50Hz, at sea level Durability ≥500 Cycles
Contact Resistance Center contact: ≤1mΩ
Outer contact: ≤0.2mΩ		 Temperature Range -45℃ ~ +125℃

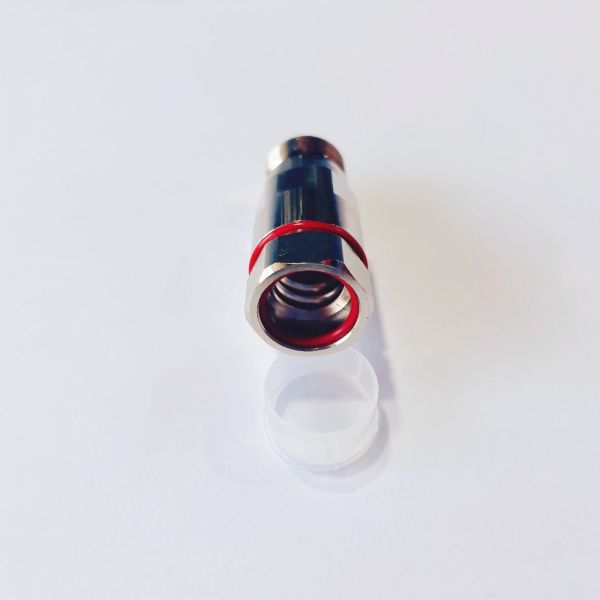

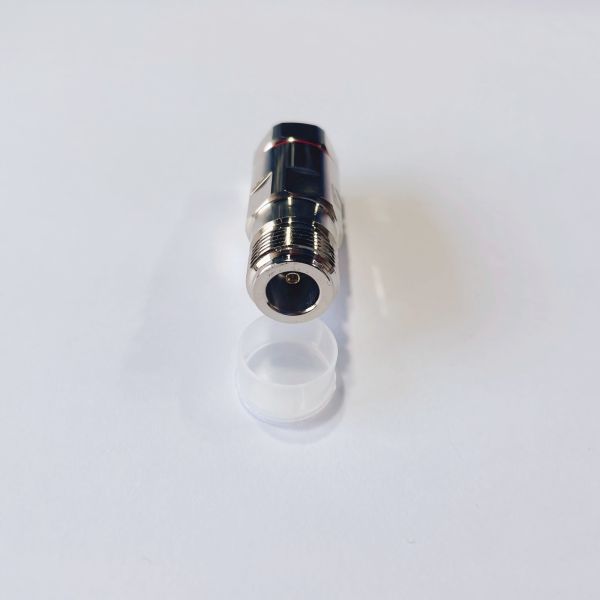

Product Display
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables

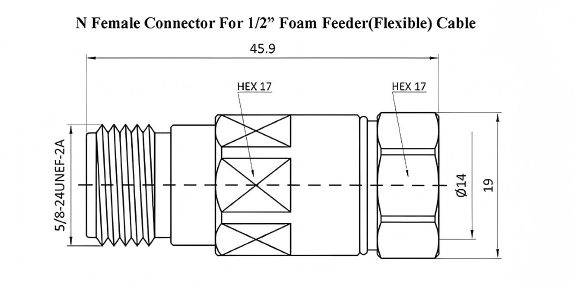

Product External Dimensions
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Related Product Recommendations
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Manufacturing Capabilities
Production Facilities
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Precision Assembly Production Workshop
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Glass-to-Metal Sealed Production Workshop
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Quality Certifications
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Customer Engagement
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Product Packaging
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
Packaging and Shipping Information
DC-3GHz N Type Female RF Feeder Connector with Gold-plated Brass and PTFE Insulator for Super Flexible Cables
  • Standard export carton packaging
  • Customized specifications available (logo, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantities and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics, Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is higher for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
