Specifications
Brand Name :
ZSX
Model Number :
PT06E-16-23S(SR)
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$22.50-$29.60(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Aviation Plug Connector
Gender :
Female
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Working temperature :
-55℃~+125℃
Withstand voltage :
1500V
Description
PT 26482 Series Circular Aviation Socket Connector

PT06E-16-23S(SR) is a high-reliability 23-position female straight plug, compliant with MIL-DTL-26482 Series I standards. Featuring a bayonet locking mechanism, aluminum alloy housing, and gold-plated contacts, it delivers 600V rated performance with excellent corrosion resistance and mechanical durability. Designed for cable mount applications, it ensures secure, vibration-proof connections in aerospace, defense, industrial control, and harsh environment systems, with reliable signal and power transmission.

Product display
Product Performance Details
Product model PT06E-16-23S(SR) Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1500V
Working temperature -55℃ ~ +125℃ Working Current 25A

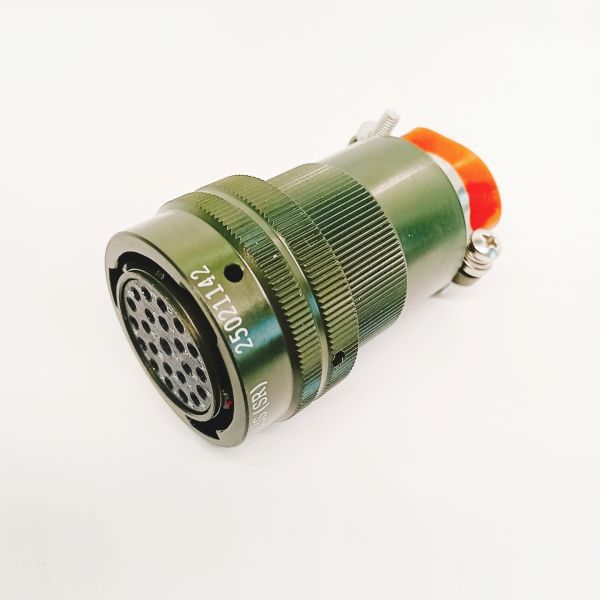

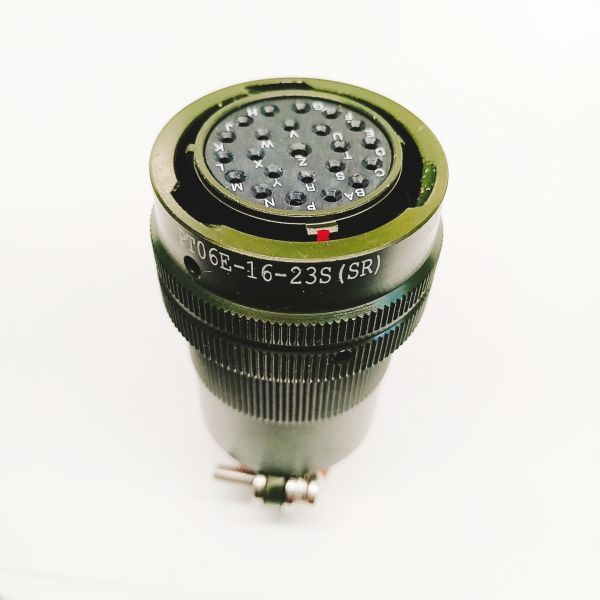

Physical product display
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance

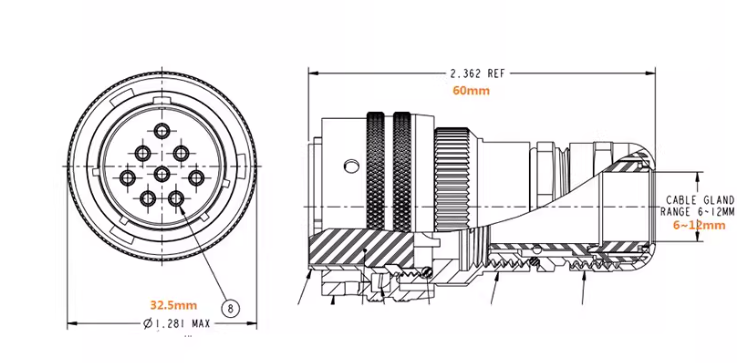

Product external dimensions
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Related product recommendations
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Display of Strength
Production Plant Area
Machining production workshop
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Precision Assembly Production Workshop
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Glass-to-metal sealed production workshop
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Obtained Certification Certificate
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Customer visit
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Product packaging
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
Packaging and Shipping
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Female Aviation Plug Connector with Aluminum Alloy Housing and Gold-Plated Contacts for 600V Rated Performance
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
