RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Specifications
Brand Name :
ZSX
Model Number :
7/16-C-JW-7
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$4.35 --$5.80(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector Din 7/16 Connector
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.13
Description


RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable

7/16-C-JW-7 is a 50Ω high-power right-angle RF coaxial connector designed with a professional crimp termination structure for secure and reliable cable assembly. It features a robust threaded coupling mechanism, gold-plated contacts, and excellent shielding performance, delivering low VSWR, low insertion loss, and stable high-power transmission. The crimp-style design ensures strong mechanical connection, easy installation, and long-term durability in harsh working environments, making it widely used in base stations, communication equipment, radar systems, broadcast devices, and industrial RF applications requiring stable and efficient high-frequency signal transmission.

Product display
Product Performance Details
Product model 7/16-C-JW-7 Dielectric constant ≥10000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.35 Insulator material PTFE
Medium pressure resistance ≥2500V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤1.5mΩ

Outer contact: ≤0.4mΩ

 Temperature range -45℃~+125℃

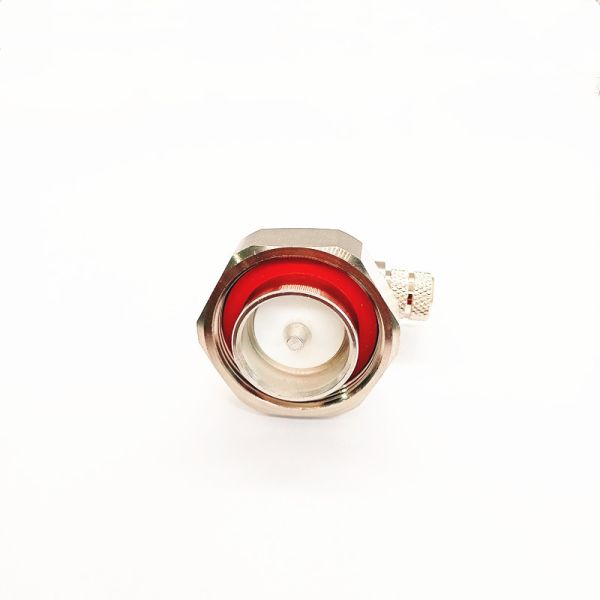

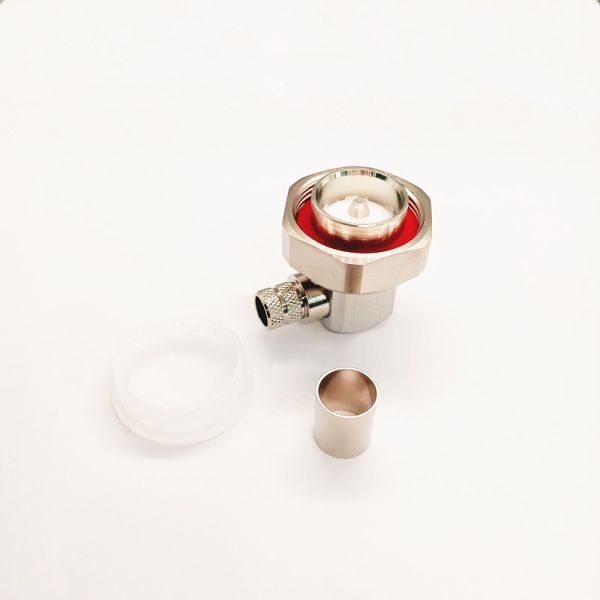

Physical product display
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable

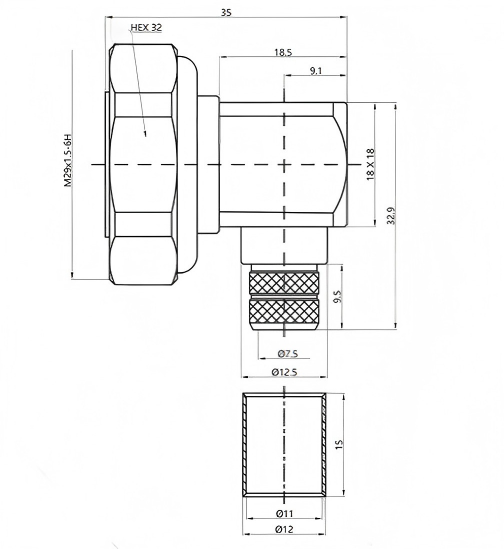

Product external dimensions
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable

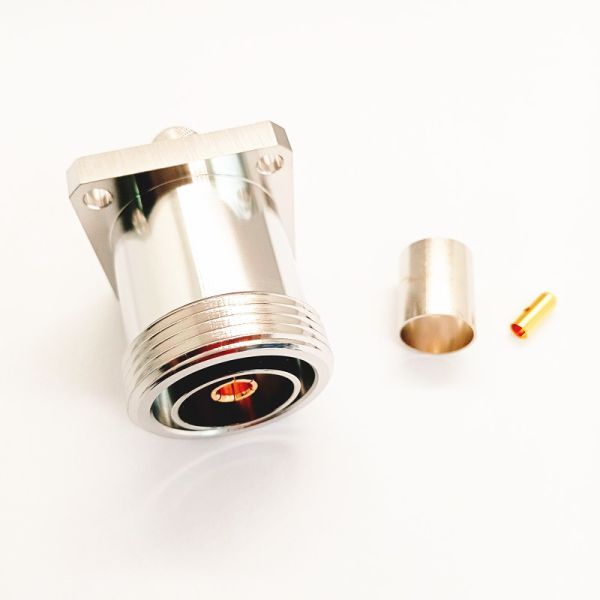

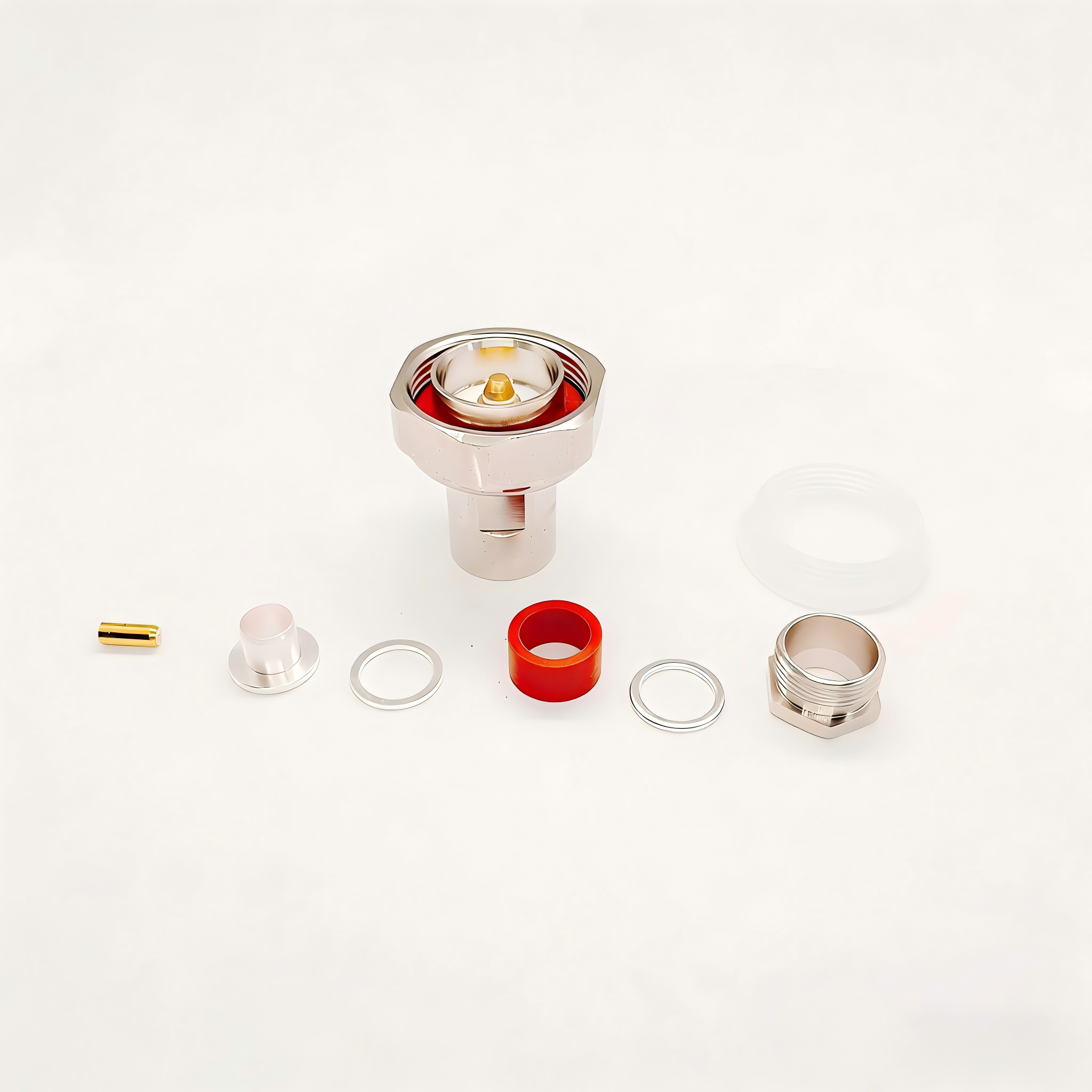

Related product recommendations
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Display of Strength
Office area
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Production Plant Area
Machining production workshop
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Precision Assembly Production Workshop
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Glass-to-metal sealed production workshop
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Obtained Certification Certificate
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Customer visit
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Product packaging
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
Packaging and Shipping
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
