DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Specifications
Brand Name :
ZSX
Model Number :
SMP-C-JW-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$2.56-$2365(Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector
Gender :
Male
Boday Material :
Gold-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector SMP Right Angel Female Crimping Type SMP-C-KW-1.5

SMP-C-JW-1.5 is a 50Ω right-angle SMP male connector designed for 1.5mm RF cables, delivering stable signal transmission up to 6GHz with low VSWR and insertion loss. Its compact, push-on structure enables high-density installation in space-constrained applications, including miniaturized communication modules, aerospace, automotive electronics, test equipment, and wireless systems. Built with durable materials and precision manufacturing, this connector ensures reliable performance and long service life. All products are 100% electrically tested before shipment to support consistent quality for bulk orders and long-term projects.

Product display
Product Performance Details
Product model SMP-C-JW-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥500V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤6mΩ

Outer contact:≤2mΩ

 Temperature range -45℃~+125℃

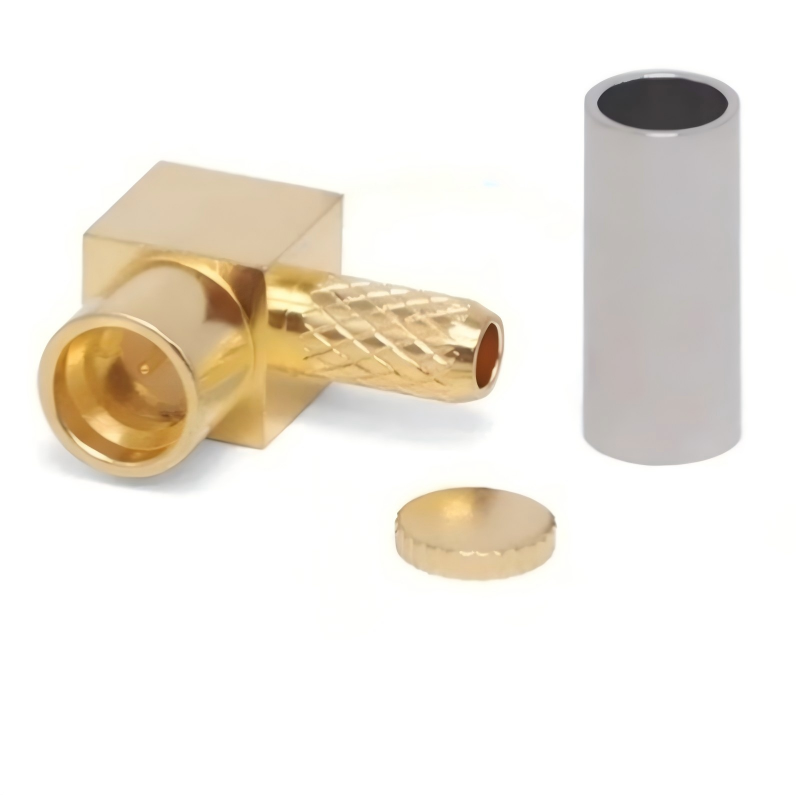

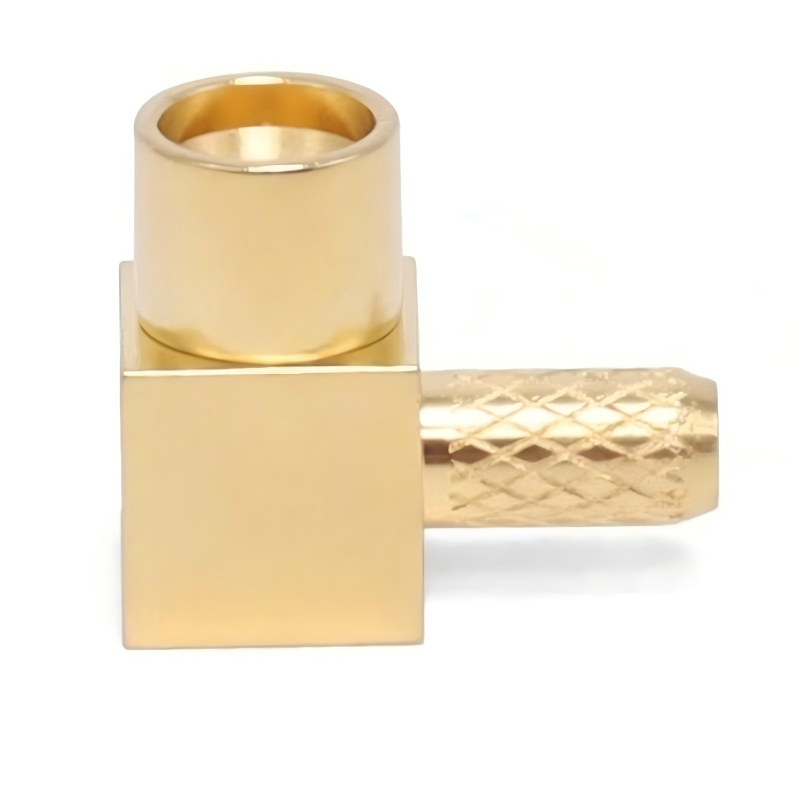

Physical product display
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable

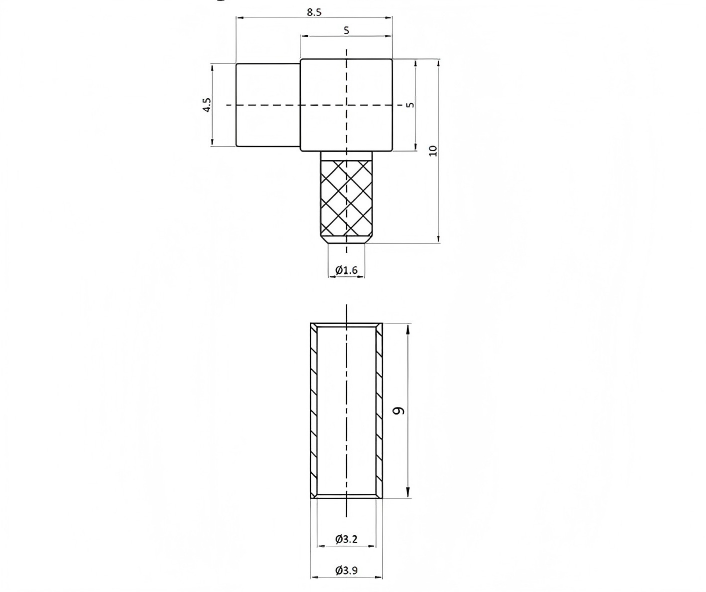

Product external dimensions
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Related product recommendations
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Display of Strength
Office area
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Production Plant Area
Machining production workshop
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Precision Assembly Production Workshop
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Glass-to-metal sealed production workshop
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Obtained Certification Certificate
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable

Customer visit
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
Product packaging
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable

Packaging and Shipping
DC-6GHz SMP Female Right Angle Connector Crimping Type SMP-C-JW-1.5 For Rg316/Rg174 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
