J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Specifications
Supply Ability :
100000Pcs/Year
Name :
J30J Connector
Model Number :
J30J-21TJN
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Price :
$11.80-$13.50(Depending on the quantity)
Boday Material :
Metal
Insulator material :
PPS
MOQ :
10 pcs
Delivery Time :
5-8 Days
Specification :
9~144 pins
Certification :
ISO9001
Packaging Details :
Carton packaging
Place of Origin :
China
Brand Name :
ZSX
Description
M83513 MDM Connector J30J-21TJN 21 Pin Male Plug Straight Welded PCB Connector

J30J-21TJN is a micro rectangular connector with 21 gold-plated twisted pins, straight vertical PCB soldering end and full aluminum shielding shell. It meets GJB2446 & M83513 standards, featuring low contact resistance, strong anti-vibration and anti-interference capacity.Ideal for aerospace, radar, marine and industrial compact board interconnection, mates perfectly with J30J-21ZKN socket.

Product display
Product Performance Details
Product model J30J-21TJN Contact resistance ≤10mΩ
Ambient temperature -55℃~+125℃ Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Medium pressure resistance 800V
Random vibration Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G Mechanical life 500 times
Impact 735m/s2 11ms Rated current 3 A

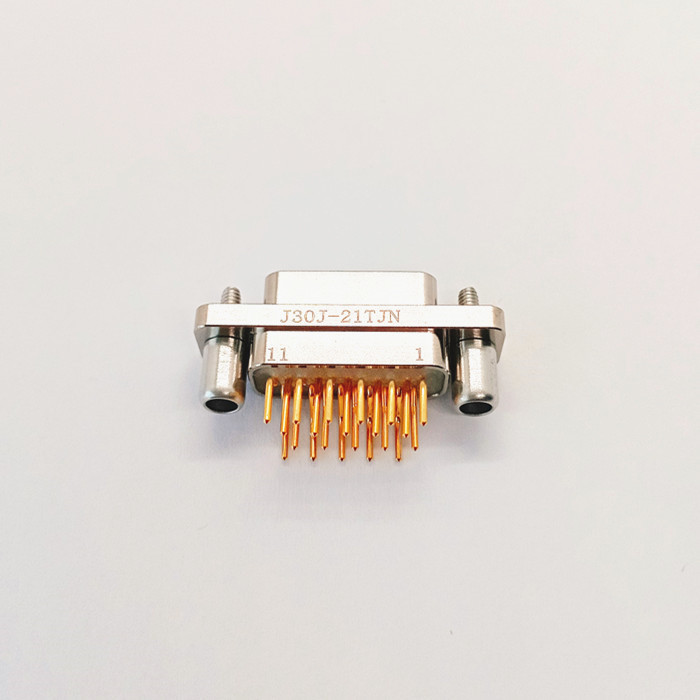

Physical product display
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell

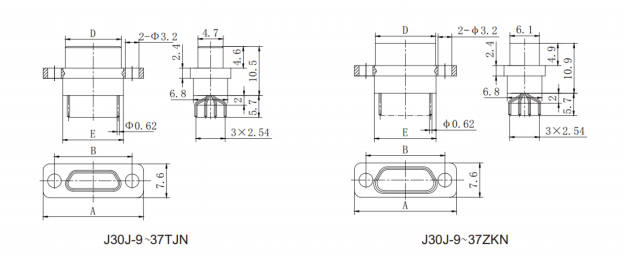

Product appearance drawing
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell

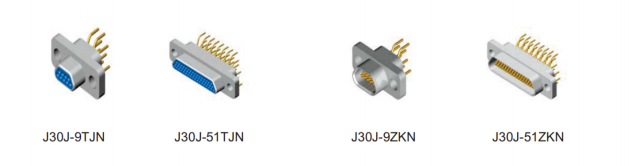

Related product recommendations
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell

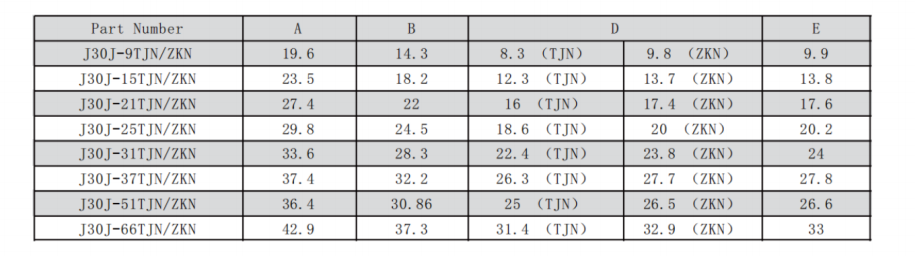

Product selection reference
Shell size
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell

Display of strength
Office area
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Production Plant Area
Machining production workshop
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Precision Assembly Production Workshop
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Glass-to-metal sealed production workshop
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Obtained Certification Certificate
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Customer visit
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Product packaging
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
Packaging and Shipping
J30J Connector M83513 MDM 21 Pin Male Plug with Gold-Plated Pins and Aluminum Shielding Shell
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
