Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Specifications
MOQ :
10 pcs
Delivery Time :
5-8 Days
Specification :
9~144 pins
Insulator material :
PPS
Packaging Details :
Carton packaging
Price :
Depending on the quantity
Boday Material :
Metal
Model Number :
J30J-51TJN-J
Supply Ability :
1000000Pcs/Year
Name :
Rectangular Electrical Connectors
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Description
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight PCB Plug Connector

J30J‑51TJN‑J is a 51‑pin straight PCB plug of J30J Micro‑D subminiature rectangular connector, compliant with GJB2446. It features twisted‑wire gold‑plated contacts, compact high‑density structure, excellent anti‑vibration and anti‑shock performance. The‑J type adopts 1.27×2.54 mm PCB footprint, intermateable with MIL‑DT‑83513 / MDM series. Suitable for aerospace, vehicle‑mounted and industrial high‑reliability electronic systems.

Product display
Product Performance Details
Product model J30J-51TJN-J Contact resistance ≤10mΩ
Ambient temperature -55℃~+125℃ Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Medium pressure resistance 800V
Random vibration Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G Mechanical life 500 times
Impact 735m/s2 11ms Rated current 3 A

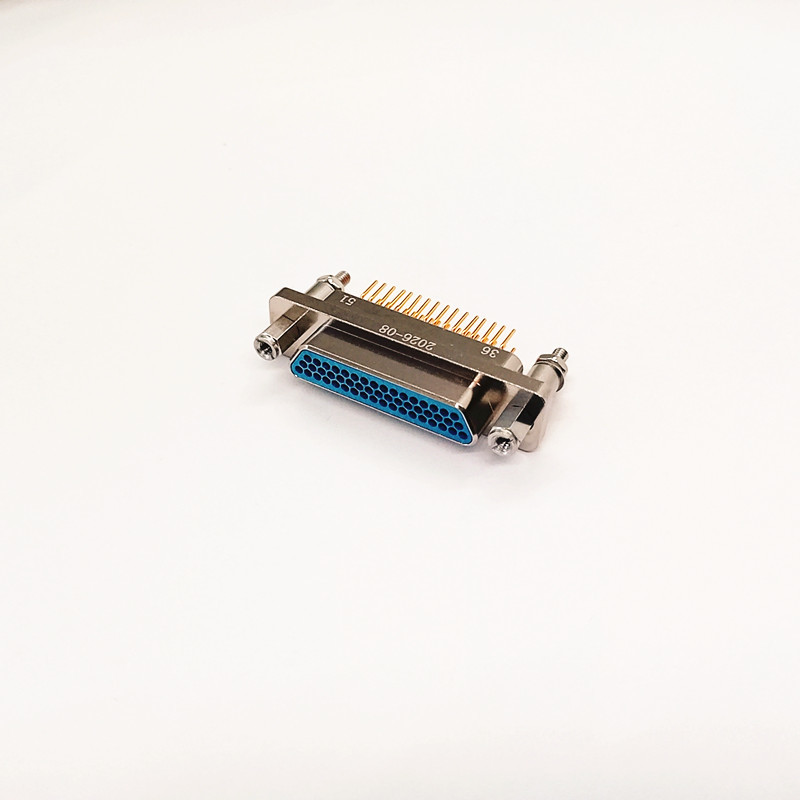

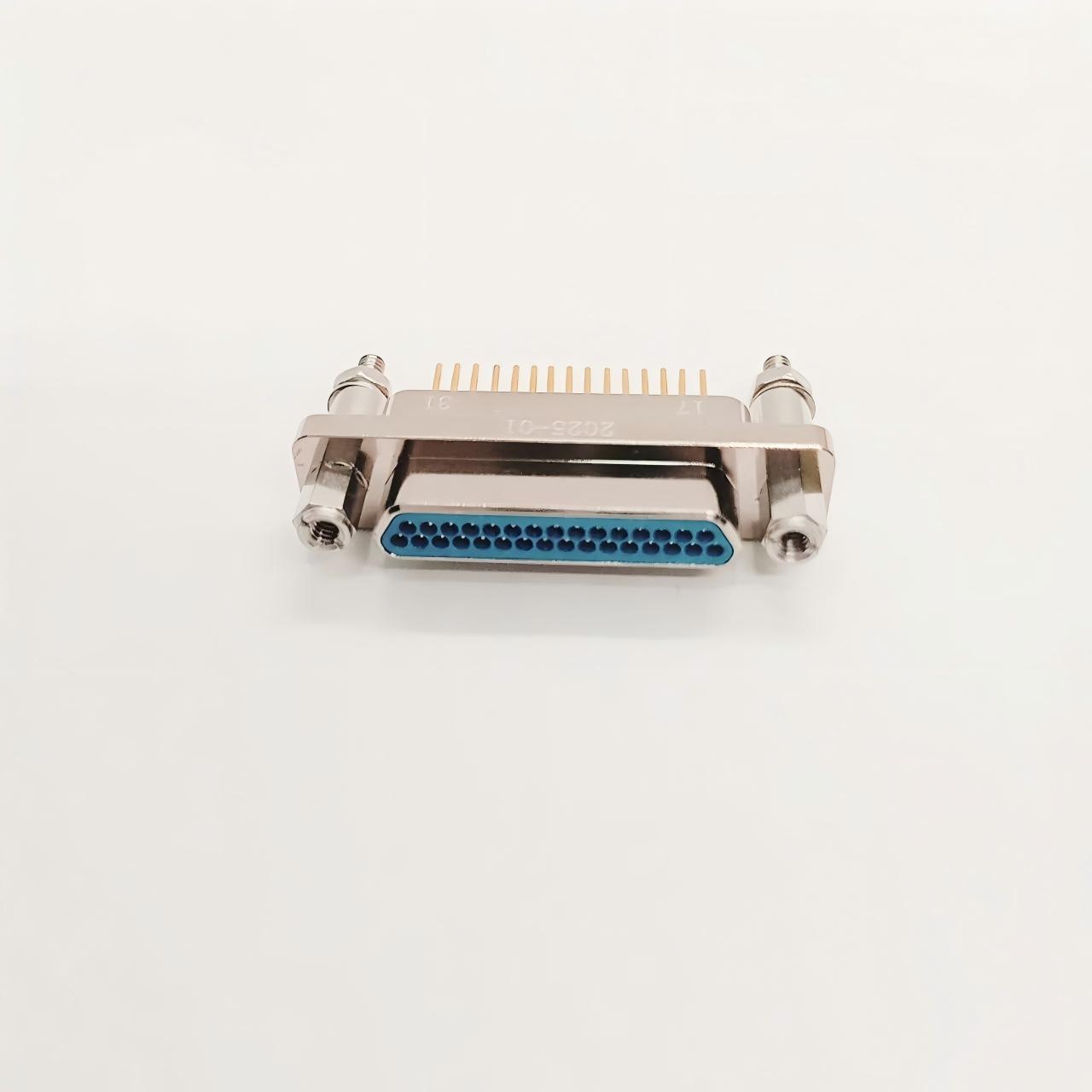

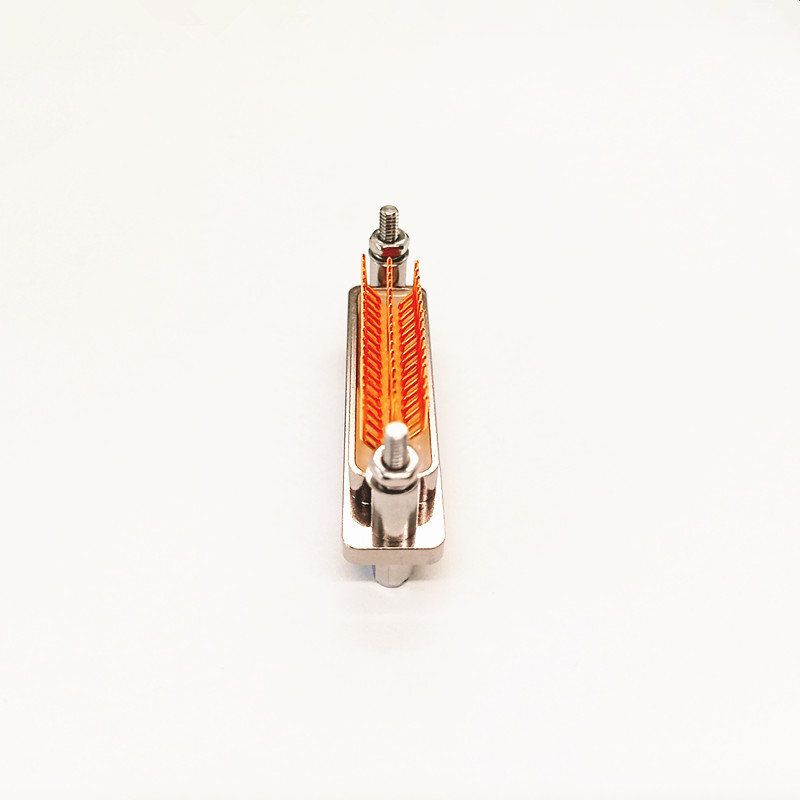

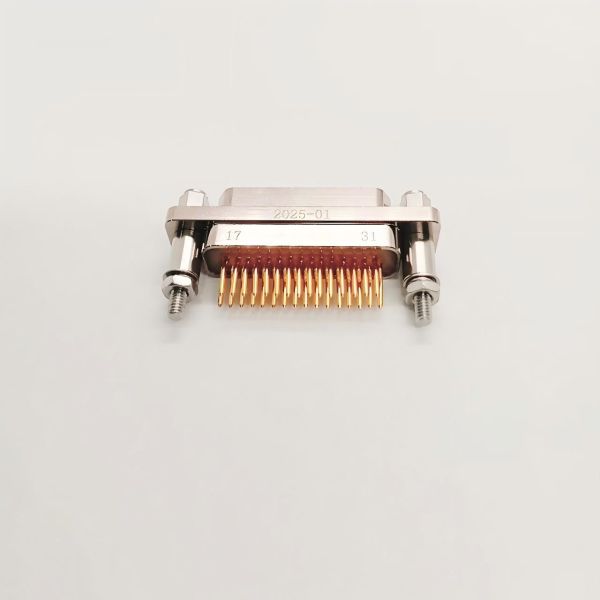

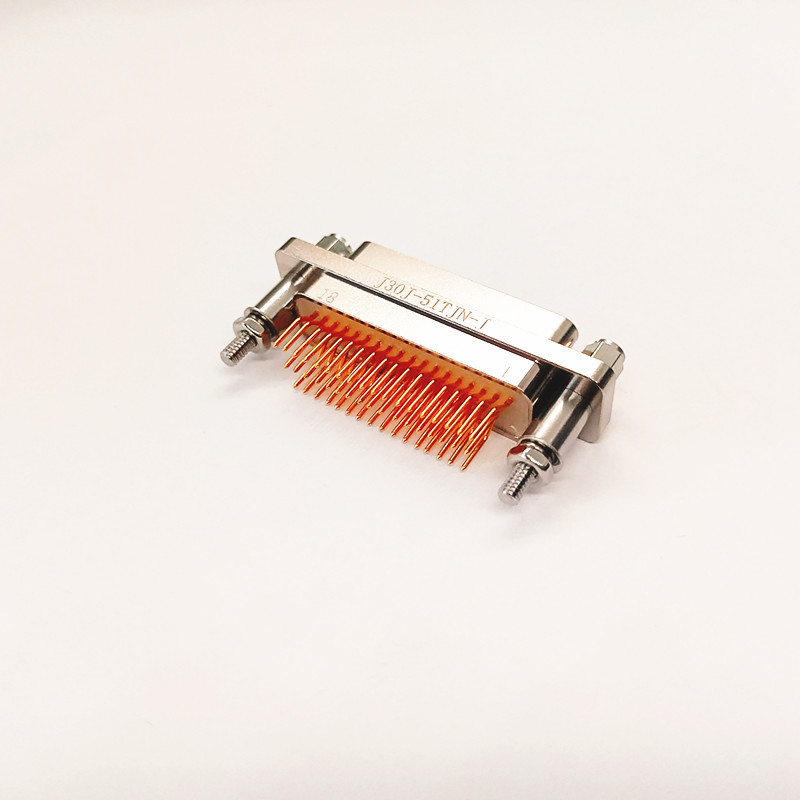

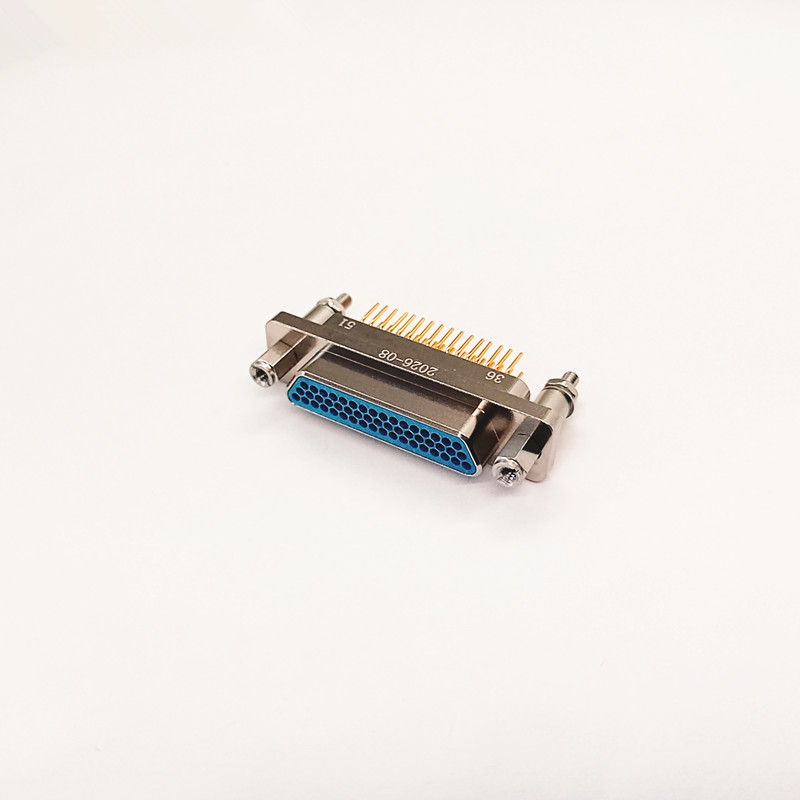

Physical product display
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector

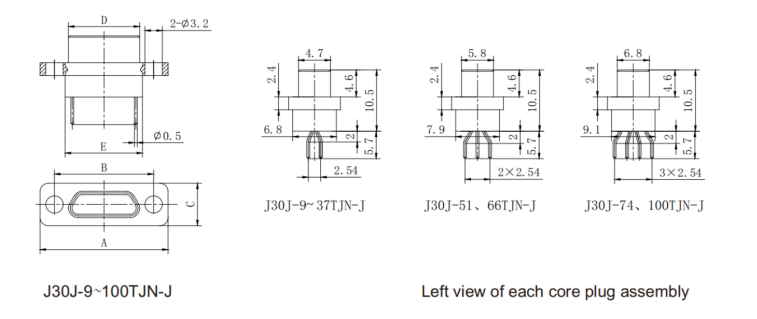

Product external dimensions
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector

Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Related product recommendations
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector

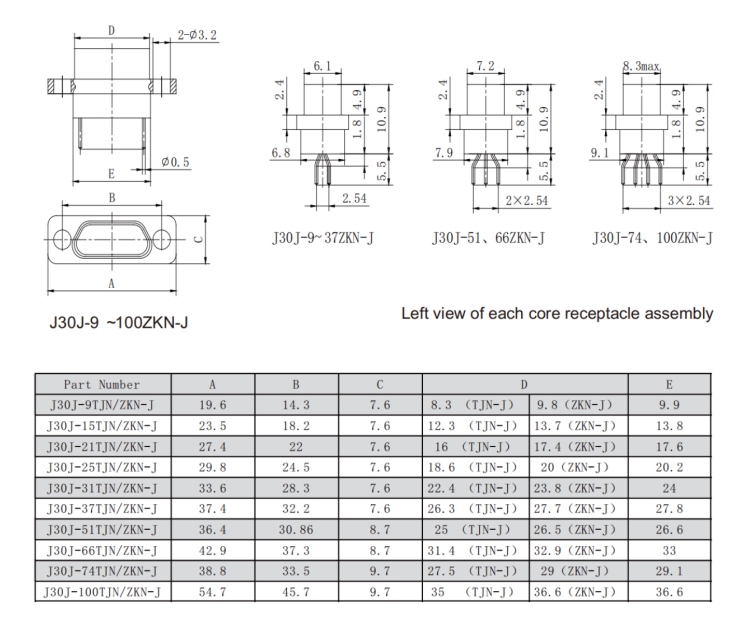

Product selection reference
Plug
Socket
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Display of Strength
Production Plant Area
Machining production workshop
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Precision Assembly Production Workshop
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Glass-to-metal sealed production workshop
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Obtained Certification Certificate
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector

Customer visit
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
Product packaging
Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector

Packaging and Shipping

  • Standard export carton Micro D Subminiature Rectangular Connector J30J‑51TJN‑J 51Pin Straight Male Plug PCB Plug Connector
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
