MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Specifications
MOQ :
10 pcs
Delivery Time :
5-8 Days
Working temperature :
-55℃~+125℃
Price :
$17.50-$ 21.60 (Depending on the quantity)
Withstand voltage :
1500V
Packaging Details :
Carton packaging
Model Number :
MS3112E14-19P
Gender :
Male
Payment Terms :
T/T,D/P,Alipay
Supply Ability :
1000000Pcs/Year
Certification :
ISO9001
Boday Material :
Aluminum alloy
Place of Origin :
China
Insulator material :
Thermosetting plastics
Brand Name :
ZSX
Name :
MS Connector
Description
MS3112E-14‑19P Circular Connector 19 Pin Panel Mount Male Receptacle Connector

MS3112E14‑19P is a MIL‑DTL‑26482 Series I miniature circular panel‑mount male receptacle, featuring size‑14 shell,19 gold‑plated solder contacts and bayonet quick‑coupling; its olive‑drab cadmium‑plated aluminum shell provides reliable corrosion resistance, with each contact rated 7.5A, operating temperature ‑55℃~+125℃ and minimum 500 mating cycles, suited for aerospace, vehicle and industrial automation applications and inter‑mateable with matching Series I plugs.

Product display
Product Performance Details
Product model MS3112E14-19P Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance 5000MΩ
Vibration 10Hz~2000Hz 147m/s2 Working voltage 500V
Insulator Synthetic rubber Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 5000V
Working temperature -55℃ ~ +125℃ Working Current 10A

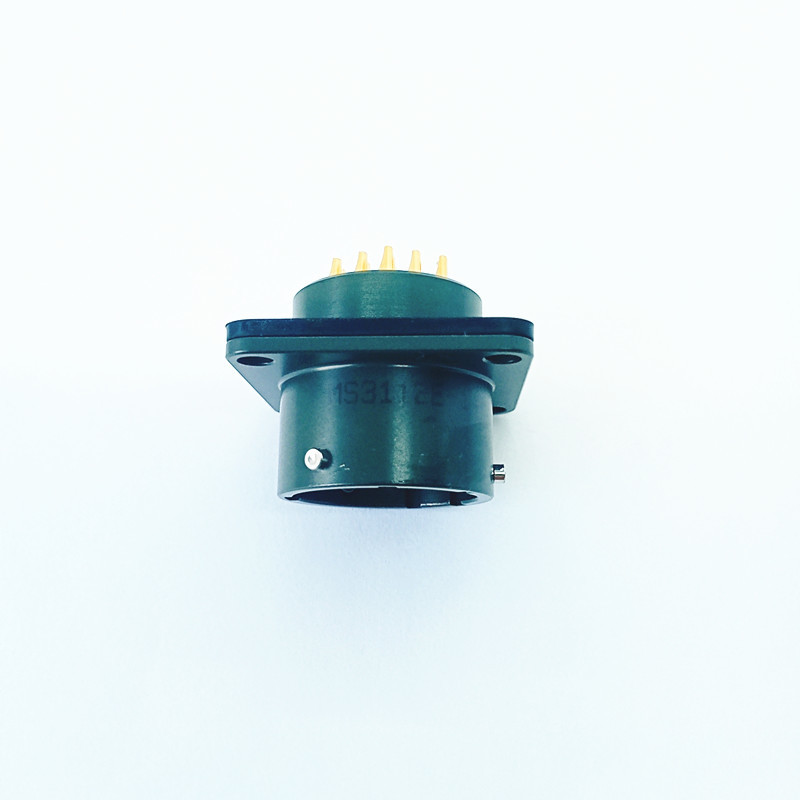

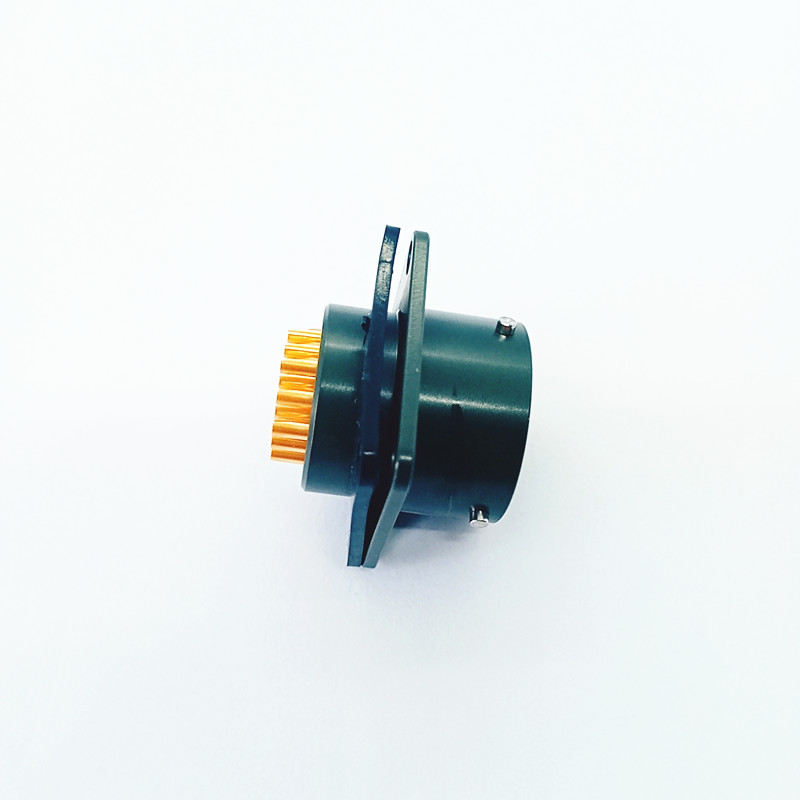

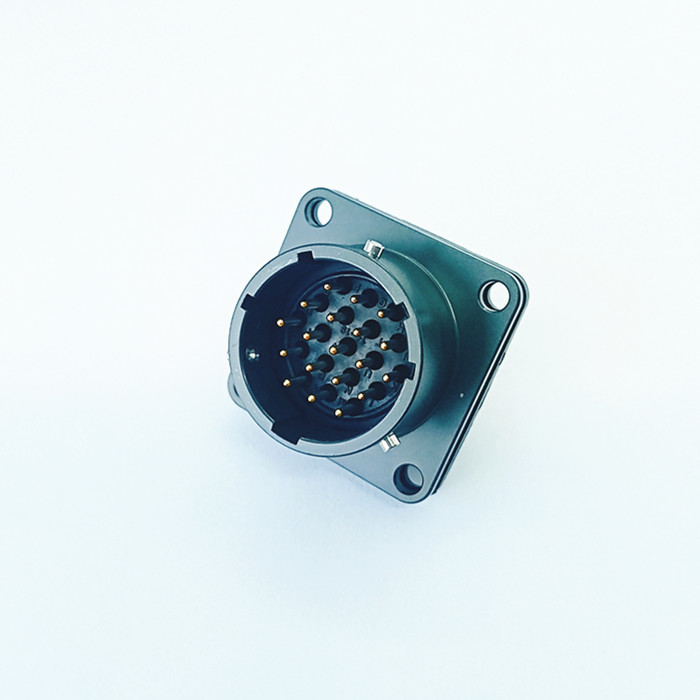

Physical product display
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Product external dimensions
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Related product recommendations
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Display of Strength
Production Plant Area
Machining production workshop
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Precision Assembly Production Workshop
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Glass-to-metal sealed production workshop
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Obtained Certification Certificate
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle ConnectorMS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Customer visit
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Product packaging
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
Packaging and Shipping
MS3112E-14‑19P MIL‑DTL‑26482 Series Circular Connector 19 Pin Panel Mount Male Receptacle Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
