Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Specifications
MOQ :
10 pcs
Delivery Time :
5-8 Days
Withstand voltage :
1500V
Price :
Depending on the quantity
Boday Material :
Aluminum alloy
Insulator material :
Thermosetting plastics
Packaging Details :
Carton packaging
Model Number :
P20J3A
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-40℃~+105℃
Supply Ability :
1000000Pcs/Year
Name :
Aviation Plug Connector P20J3A
Certification :
ISO9001
Place of Origin :
China
Brand Name :
ZSX
Description

Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A

P20J3A is square‑flange straight panel‑mount male receptacle of P‑series thread‑locking circular aviation connector, which mates with P20K3Q cable plug. It adopts 3 solder‑type high‑current contacts rated 25A per contact. Thread‑coupling locking ensures reliable anti‑vibration connection, operating temperature ‑55℃~+70℃ and 500 mating cycles, widely applied for power interconnection of industrial‑control and vehicle‑mounted equipment.

Product display
Product Performance Details
Product model P20J3A Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥500MΩ
Contact resistance ≤5mΩ Rated voltage 250V
Insulator material High temperature resistant engineering plastics Mechanical life 1000 times
Connection method Threaded locking type Withstand voltage 1500V AC
Working temperature -40℃ ~ +105℃ Working Current 10 A

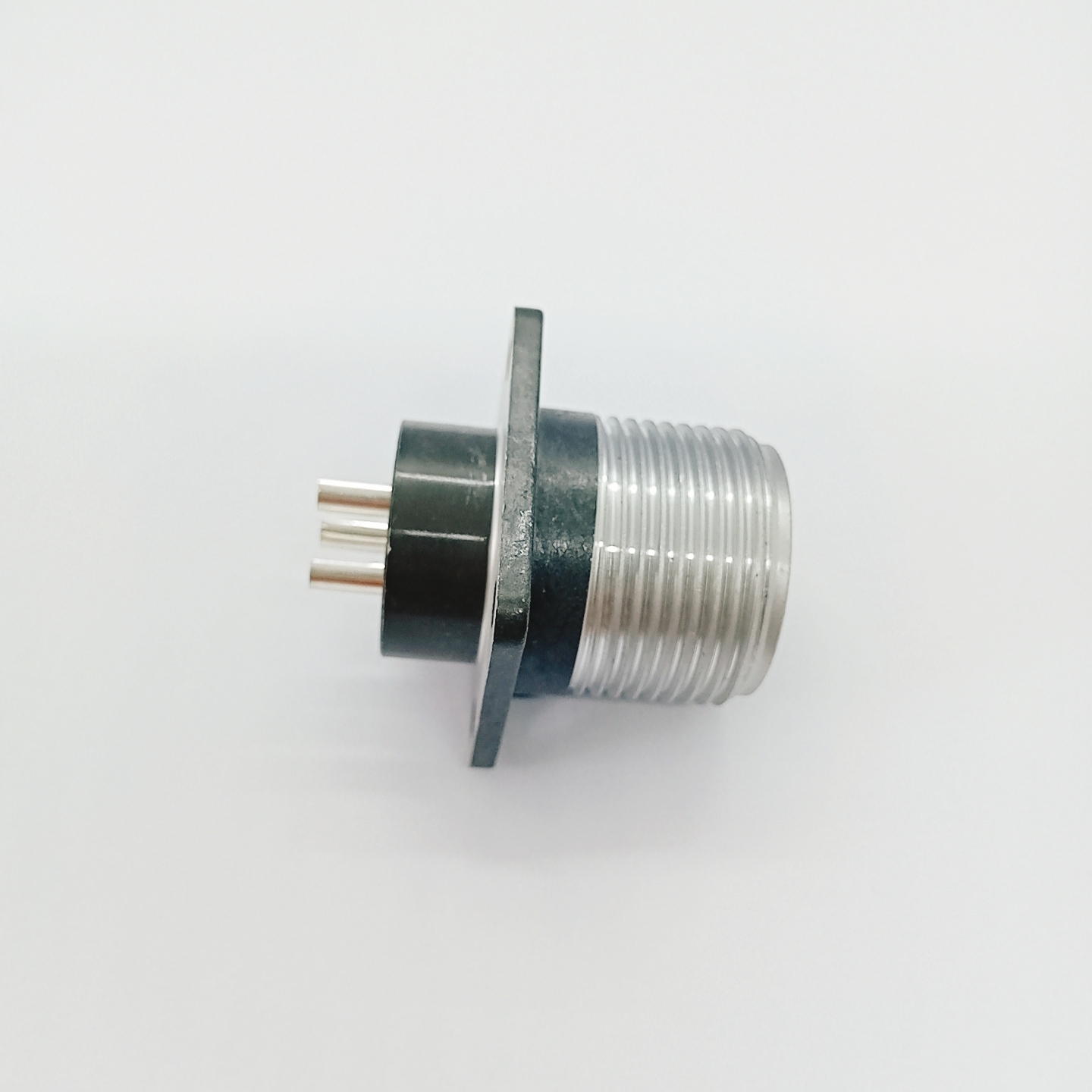

Physical product display
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Product external dimensions

Related product recommendations
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Display of Strength
Production Plant Area
Machining production workshop
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Precision Assembly Production Workshop
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Glass-to-metal sealed production workshop
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Obtained Certification Certificate
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Customer visit
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Product packaging
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
Packaging and Shipping
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Circular Aviation Connector P Series 3 Pin Thread Locking Square Flange Panel Mount Male Receptacle P20J3A
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
