Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Specifications
Model Number :
Y17P*-2004TJ5
MOQ :
10 pcs
Delivery Time :
5-8 Days
Withstand voltage :
1000V
Price :
$22.50-$29.80(Depending on the quantity)
Boday Material :
Aluminum alloy
Certification :
ISO9001
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Working temperature :
-55℃~+125℃
Insulator material :
Thermosetting plastics
Place of Origin :
China
Supply Ability :
1000000Pcs/Year
Name :
Y17 Series Connector
Brand Name :
ZSX
Packaging Details :
Carton packaging
Description
Y17P*‑2004TJ5 4‑Pin Bayonet Circular Plug Connector

Y17P*‑2004TJ5 belongs to Y17 bayonet‑coupling circular connector series. It is a 4‑pin male plug with P* grounded shielding shell and type‑5 thermoplastic cable boot. Bayonet locking ensures reliable connection under vibration and shock. Operating temperature ranges from‑55℃ to +125℃, mechanical service life 500 mating cycles. Mates with Y17P‑2004ZK10 panel‑mount receptacle. Widely used for aerospace and heavy‑duty industrial power‑signal interconnection. Solder contact termination.

Product display
Product Performance Details
Product model Y17P*-2004TJ5 Contact piece Gold plating of copper alloy
Shell material Aluminum alloy Insulation resistance ≥5000MΩ
Vibration 10Hz~2000Hz 196m/s2 Working voltage 600V
Insulator Thermosetting plastics Mechanical life 500 times
Impact 980m/s2 Relative humidity When the temperature is 40±2℃, it is 90% to 95%
Collision Acceleration 392m/s2 Withstand voltage 1000V
Working temperature -55℃ ~ +125℃ Working Current 75A

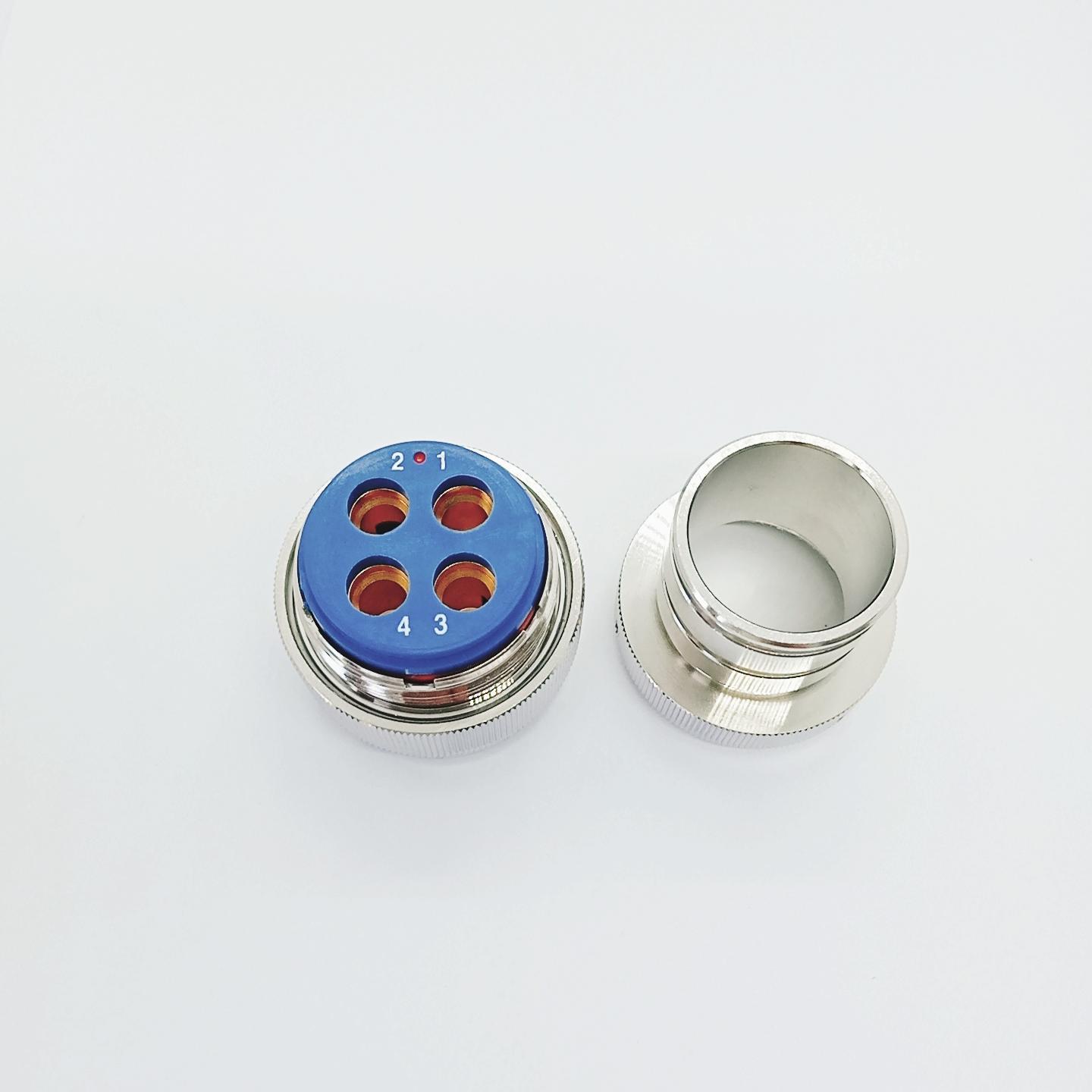

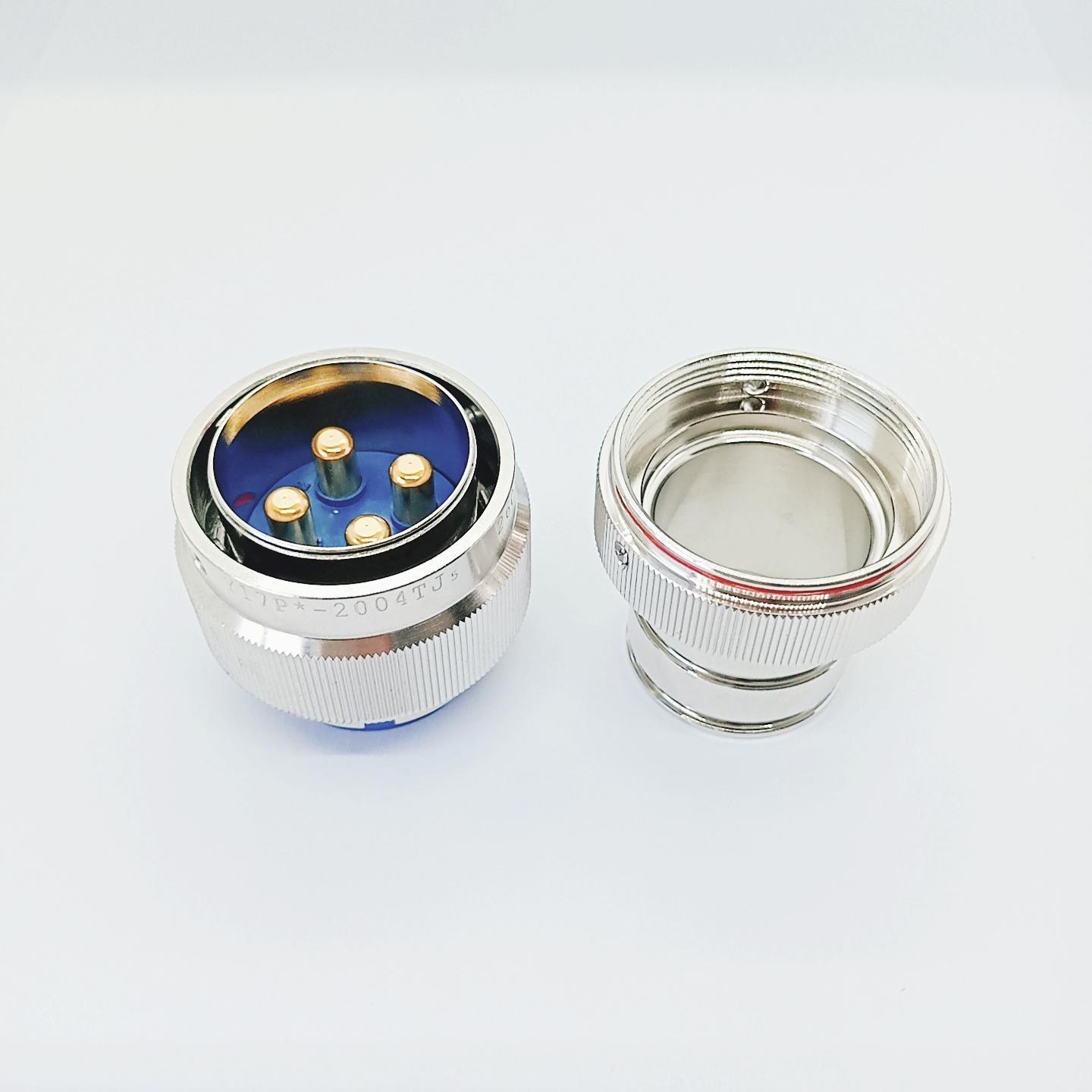

Physical product display
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Product external dimensions
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector

Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector

Related product recommendations
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Display of Strength
Production Plant Area
Machining production workshop
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Precision Assembly Production Workshop
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Glass-to-metal sealed production workshop
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Obtained Certification Certificate
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Customer visit
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Product packaging
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
Packaging and Shipping
Y17P Series Shielding Shell Connector Y17P*‑2004TJ5 4 Pin Male Plug Bayonet Circular Plug Connector
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
