5MWH 30Ft Container Commercial Solar Battery Storage System BESS
5MWH 30Ft Container Commercial Solar Battery Storage System BESS
5MWH 30Ft Container Commercial Solar Battery Storage System BESS
5MWH 30Ft Container Commercial Solar Battery Storage System BESS
5MWH 30Ft Container Commercial Solar Battery Storage System BESS
5MWH 30Ft Container Commercial Solar Battery Storage System BESS
Specifications
Brand Name :
Silk
Model Number :
SFD-CES-5KKA1K3A
Certification :
CE,FCC,MSDS,ROHS,UN38.3
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2containers per month
Delivery Time :
10-30 Days
Packaging Details :
Customized Contianers
Product :
5MW Energy Storage Container 30Feet
Capacity :
5117.9KWH
Voltage :
1142 ~ 1468V
Size :
30Feet (9125*2896*2438mm)
Application1 :
Uninterruptible Power Supply
Application 2 :
Solar System/UPS backup power/Solar Panel system
Description

5MWH 30Ft Container Comercial Solar Battery Storage System BESS Off-grid Power System

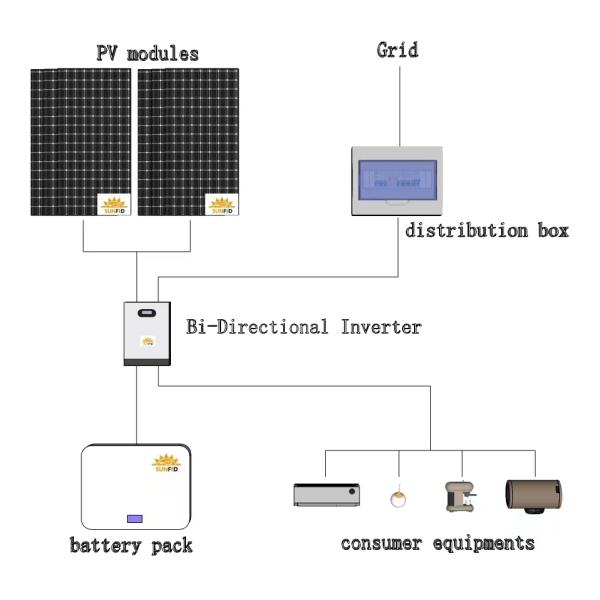

Our Battery Energy Storage System (BESS) can be operated under on-grid and Off-grid operation mode. The BESS system is controlled to cut off the grid connection within 10 seconds and switch to off-grid operation mode when the mains is off. If the BESS has insufficient power, the generator will be started to provide electrical energy to the load. After the utility power is restored, the system can be converted to grid-connected operation mode.

ESS Container Storage Energy System Features

  • Standard 20feet container design, compact design, suitable for small user scenarios
  • 280Ah PACK+PACK level targeted fire + fan speed regulation
  • DC 1500V, 20 years of normal use
  • Main control cabinet, integrating DC confluence, power distribution, communication and control

5MW Outdoor Storage Energy System Parameters:

Item Name Container Energy Storage Battery5117
Cell Type LFP-3.2V-280Ah
Rated Power (KWh) 5117.9
Battery Voltage Range (V) 1142～1468.8
System Parameters
BMS 3 Grade
Size(mm) 9125*2896*2438 (30 Feet)
Weight(KG) 52T
IP Grade IP54
Operation Temperature Range -30°C ~ +50°C
Aux. Power Parameters 35KW-380V/50HZ
Fire Protection Aerosol S/ Heptafluoropropane / Perfluorohexanone
Installation Mode Outdoor Installation
System Communication Protocol Modbus TCP

5MWH 30Ft Container Commercial Solar Battery Storage System BESS
