384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
Specifications
Brand Name :
Silk
Model Number :
OK-CS-ES48100
Certification :
CE,FCC,MSDS,ROHS,UN38.3
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per months
Delivery Time :
30 Days
Packaging Details :
Hard Paper Carton with Foam From Top and Button
Battery Type :
LiFePO4
Nominal Voltage :
384v / 192V / 96V
Capacity :
148kwh
Cycle life :
3000 Times
System Configuration :
AC380V
Application :
Solar Power Storage System
Description

Commercial Solar Battery Storage Systems 148KWH 384V 192V 96V high voltage electric lithium battery solar system

Description of the solar energy storage battery:

1. 148KWH high voltage energy storage power supply

2. 60KW/100KW off grid inverter off grid power storage

3. The shipment could be solar battery storage container

Quick Details:
Place of Origin: China Brand Name: OEM
Model Number: OK-CS-ES48100 Battery Type:LiFePO4
Cell Type: LFP-200Ah Nominal Voltage: 384V / 192V / 96V
Warranty: 5YEARS Weight: 2300kg
Capacity: 148kwh Cycle life: 3000 Times
Application: Solar Energy Storage Systems & Uninterruptible Power Supplies

Specification of lithium battery energy storage:

Battery Capacity(BOL) 147.84kWh

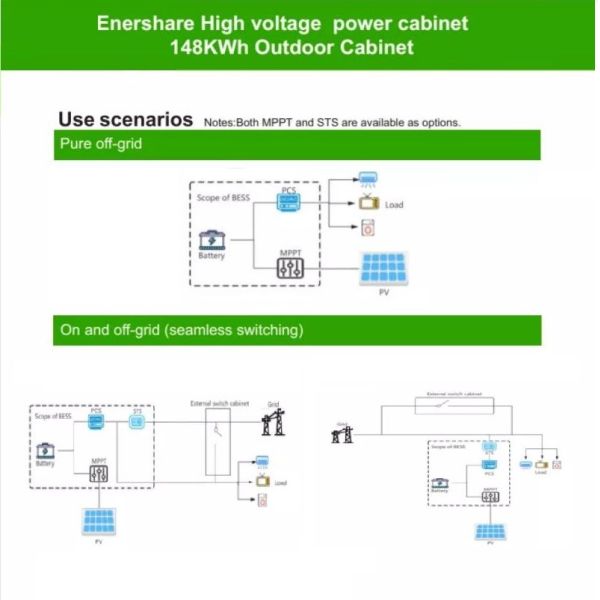

Use scenarios On-grid/Pure off-grid/On and off-grid
AC grid connection parameters
Grid Type 3L+PE
Rated charge/discharge power 60KW
Rated grid voltage 1P210S(21 Modules)
System Configuration AC380V
Rated grid voltage 50Hz/60Hz
Frequency range ±3Hz
Rated current 95A
Power Factor 1(Ahead)~1(Lag)
Output Harmonics ≤3%
Dimension (W*H*D) 1861.5*1267*1835mm
Weight 2300kg
IP Protection Rating IP55
Seismic Intensity Rating 8(IEC60980)
Anti-corrosion grade C4(optional C5)
Operating temperature【1】 -20℃～50℃
Working altitude【2】 ＜2000m
Cycle life 5 years or more than 2000 times
Fire Fighting System Automatic fire extinguishing
Communication protocols Modbus TCP/IP
Cooling method Battery section: air conditioning / power section: forced air cooling

384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
