UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
Specifications
Model Number :
LFP105Ah
Certification :
UN38.3, MSDS, IEC62133, UL
Place of Origin :
China
MOQ :
100pieces
Payment Terms :
T/T
Supply Ability :
10'000Pieces daily
Delivery Time :
within 10days
Packaging Details :
Bulk packing
Nominal Voltage :
3.2V
Typical Capacity :
105Ah
Dimensions :
135*200*36mm
Initial Impedance :
≤0.7mΩ
Cycle Life :
6000times
Weight :
1.9kg
Description
UN38.3 Golf Cart LFP Prismatic Cell 6000 Cycles 105Ah 3.2V Lifepo4
LFP Prismatic Cell Features
  • Lighter in weight, heavier on power than lead acid battery
  • Uses A-grade cells with more than 6000 cycle times
  • Max discharge continuous current: 1C to 3C 5C
  • Maintenance free with parallel and series connection capability
  • Safer performance with comprehensive safety testing
  • Optional: Lithium Battery built with BMS
Lifepo4 Prismatic Cell 3.2V 105Ah Specifications
Battery TypeLFP battery prismatic cell
Model105 AH
DimensionH200*W130*T36mm
Nominal capacity105Ah
Nominal voltage3.2v
AC Impedance Resistance0.5mΩ
Discharging cut-off Voltage1C
Pulse discharge rate (30s)3C
Pricewholesale price
Customizeyes
Weight1.9kg
Cycle lifemore than 6000 times
Operating temperatureDischarge: -20°C--60°C
Charge: 0°C--45°C
Other Hot Sale Lithium Iron Phosphate Battery Cells
Model No. Standard Voltage Standard Capacity (Ah) Impendence (mΩ) Weight (Kg) Height (mm) Width (mm) Thickness (mm)
LFP503.2V50Ah≤0.7mΩ1.4Kg185.3±0.5135.3±0.529.3±0.5
LFP803.2V80Ah≤0.5mΩ1.68Kg170±0.5130.3±0.536.7±0.5
LFP903.2V90Ah≤0.5mΩ2.0Kg200.5±0.5130.3±0.536.7±0.5
LFP1003.2V100Ah≤0.5mΩ1.92Kg118±0.5160±0.549.9±0.5
LFP1053.2V105Ah≤0.5mΩ1.98Kg200.5±0.5130±0.536.7±0.5
LFP1733.2V173Ah≤0.5mΩ3.25Kg207.2±0.5173.9±0.541.0±0.5
LFP2303.2V230Ah≤0.25mΩ4.11Kg207.0±0.5173.9±0.554.0±0.5
LFP2803.2V280Ah≤0.25mΩ5.42Kg207.5±0.5173.7±0.572.0±0.5
LFP3043.2V304Ah≤0.5mΩ5.49Kg208.8±0.5173.5±0.572.0±0.5

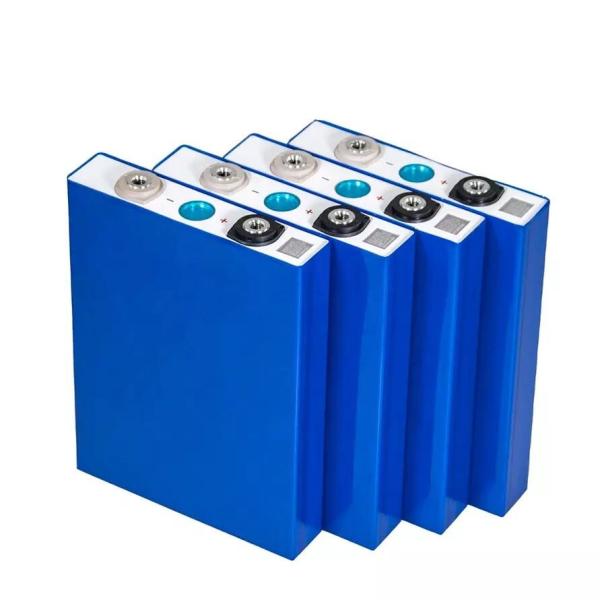

Product Images
UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
Why Choose Us
Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R & D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
Certificates
CE RoHs BIS KC CB UL MSDS UN38.3 IEC61233
UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
Factory Tour
UN38.3 Certified 3.2V 105Ah LFP Prismatic Cell with 6000 Cycles Lifepo4 Battery
