Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Specifications
Capacity :
7Ah
Max Charge Current :
3A
Max Discharge Current :
6A
Model Number :
LFP24V7
Certification :
UN38.3, MSDS, RoHS
Place of Origin :
China
MOQ :
100pieces
Payment Terms :
T/T
Supply Ability :
5000Pieces daily
Delivery Time :
within 20days
Packaging Details :
Carton box
Energy :
179.2Wh
Cycle Life :
>3000 Cycles
Voltage :
24V
Description
Customized 24V 7Ah LiFePO4 Lithium Battery Pack For Solar Street Light System
Product Specifications
Electrical Characteristics
Nominal Voltage 25.6V
Nominal Capacity 7Ah @ 0.2C
Energy 179.2Wh
Battery Type LiFePO4
Cycle Life >3000 Cycles @ 0.2C Charge/Discharge at 100% DOD, End of Life 70% Capacity
Months Self Discharge ≤3.5% per month at 25℃
Standard Charge
Charge Voltage 29.2±0.2V
Charge Mode (CC/CV) At 0℃~45℃ temperature, charged to 29.2V at constant current of 0.2C, then constant voltage of 29.2V until current ≤0.02C
Charger Current 1.2A
Max. Charge Current 3A
Standard Discharge
Discharge Current 1.2A
Max. Continuous Current 6A
Max. Pulse Current 20A (<3S)
Discharge Cut-off Voltage 16.0V
Environmental
Charge Temperature 0℃ to 45℃ (32℉ to 113℉) @ 60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃ (-4℉ to 140℉) @ 60±25% Relative Humidity
Storage Temperature 0℃ to 45℃ (32℉ to 113℉) @ 60±25% Relative Humidity
Water Dust Resistance None
Mechanical
Cell LiFePO4
Plastic Case None
Dimension (L*W*H) Customized
Weight Approx. 1.3Kg
Other Hot Sale LiFePO4 Rechargeable Battery Packs
Voltage Typical Capacity Charge Discharge Dimension (mm) with case Weight (Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52

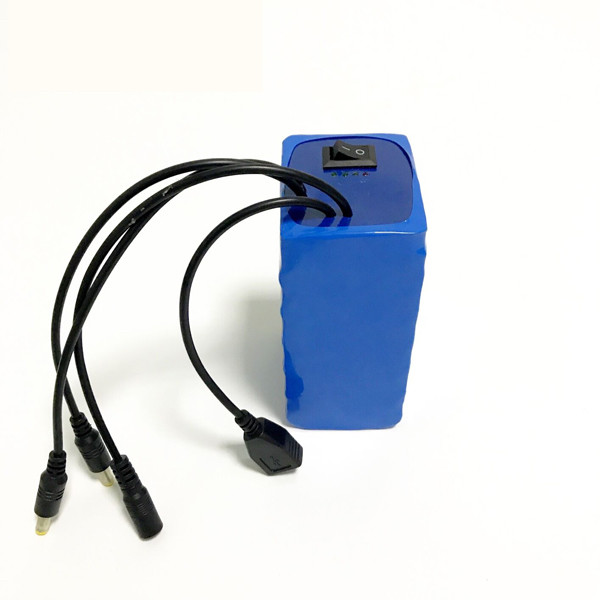

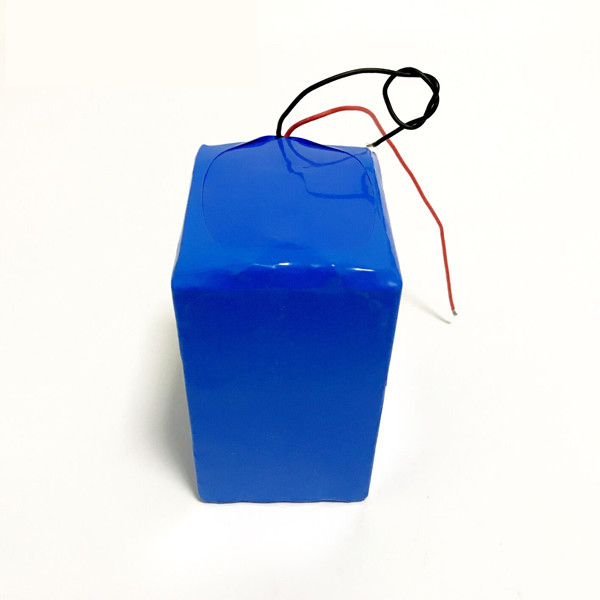

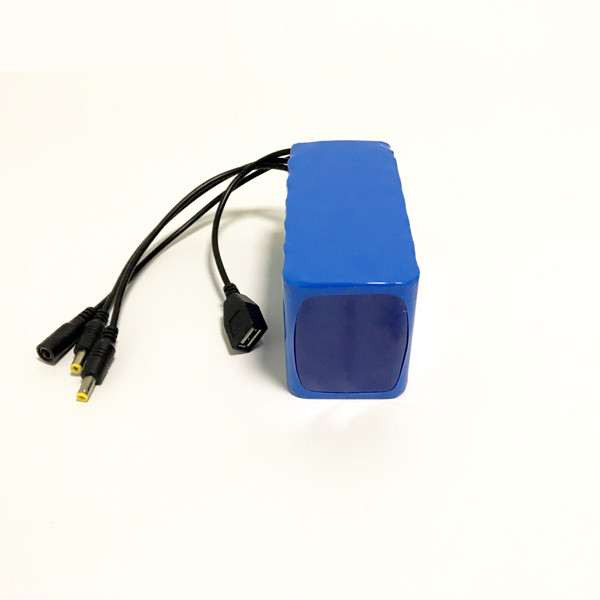

Product Images
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Why Choose Us
Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applied
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R & D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Quality Control
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Certificates
CE RoHS BIS KC CB UL MSDS UN38.3 IEC61233
Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.

Customized 24V 7Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Street Light System
