5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake
Specifications
Brand Name :
RanCheng
Model Number :
5T trailer
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard shipping
Loading ability :
5t
Material :
Steel / Aluminum
Carriage Size :
5000X2200mm
Overall Size :
6500X2800X750mm
Tire :
ST235/80R16 Tubeless Tire X4
brake type :
Double-axle electric brake
Description

5t 5m*2.2m Platform Truck Semi Trailer Axle Double-Axle Electric Brake

Product Description

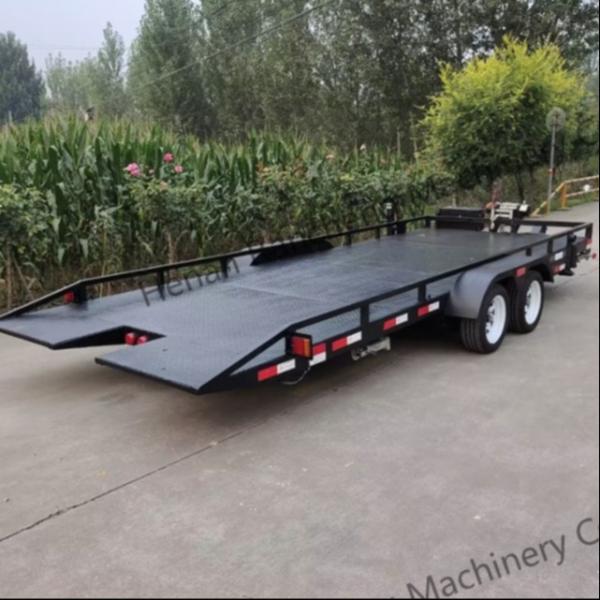

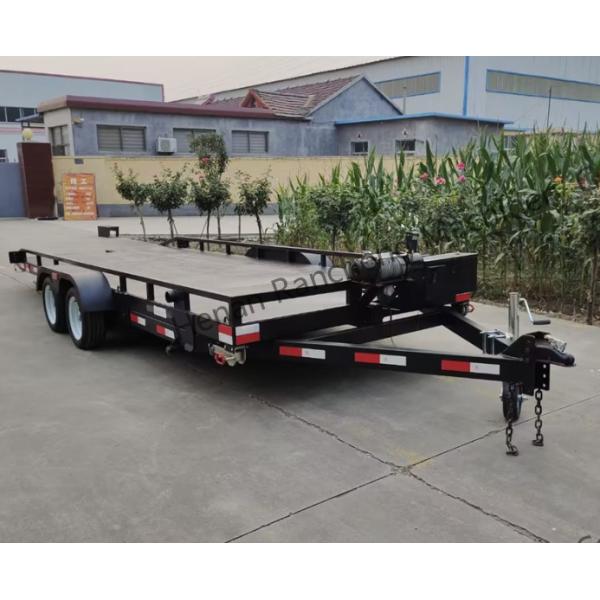

This flatbed trailer features a steel and aluminum structure for high strength and light weight. Its spacious 5000×2200 mm platform is suitable for transporting a variety of large cargoes. With an overall size of 6,500 × 2,800 × 750 mm, it is compact and easy to operate.

Equipped with four ST235/80R16 tubeless tires, it has excellent grip and enhanced puncture resistance. The trailer is equipped with a dual-axle coupling system, front and rear floating suspension, supported by steel plate shock absorbers, which can travel efficiently on rough roads. The dual-axle electric braking system brakes quickly to ensure safe driving.

The triangular tow bar with support frame ensures compatibility with a variety of tractors. The main frame is made of 12 and 14-inch steel sections, and the platform is made of 3mm Q235 steel plate to ensure durability and load capacity.

The rear unloading function is driven by a system of two hydraulic cylinders, an independent hydraulic station and a 12V battery, making unloading efficient and convenient.

technical data

Material Steel / Aluminum
Maximum Payload 5T
Carriage Size 5000X2200mm
Overall Size 6500X2800X750mm
Tire ST235/80R16 Tubeless Tire X4
Suspension form Double-bridge linkage, front and rear floating type structure, with linkage steel plates installed at the front and rear for shock absorption
brake type Double-axle electric brake

Traction form

 Triangular traction rods are equipped with traction support frames
additional device Taillights, seven-hole socket, mudguard, traction support frame, connector, safety chain, D-ring, mechanical outriggers X4, electric winch, and 12V battery
Material 12# 14# Channel steel, 3mm patterned plate, material Q235
Self-unloading form Double oil top (rear-tipping self-unloading), equipped with an independent hydraulic station, 12V battery
surface treatment Primer + topcoat
