Specifications
Brand Name :
RanCheng
Model Number :
RCF280C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Full Hydraulic Water Well Drilling Machine
Model :
RCF280C
Bore Depth :
280m
Bore diameter（hammer） :
100-350mm
Pipe diameter :
89mm/102mm
Pipe length :
3m/6m
Max torque of rotary :
7000-9000Nm
Diesel engine :
75KW Yuchai engine
Description

280m Water Well Drilling Rig | Diesel/Hydraulic Power | CE/ISO Certified | For Village/Irrigation

Product Description

RCF280C deepwater well drilling rig is a product independently developed by our company. This new generation of down-the-hole drilling rig (DTH) plays a key role in improving drilling speed, combined with higher gas output.

The drilling rig adopts the latest model and advanced hydraulic technology, with low power consumption, large rotation torque, not easy to deflect, high-quality materials, stylish and compact design, higher efficiency, lower failure rate, economical and durable, and higher comprehensive cost performance. Our deepwater drilling rigs are widely praised in the market and have received positive feedback from many customers.


Technical Parameters

Model RCF280C
Bore diameter(Hammer) 100-350mm
Bore depth 280m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4100×1900×2600mm
Weight 7000Kg
Diesel engine 70KW Yuchai engine

Application

Our water well drilling machines are mainly used for well drilling in resource exploration and hydrology wells, civil water wells, agricultural irrigation projects, etc.

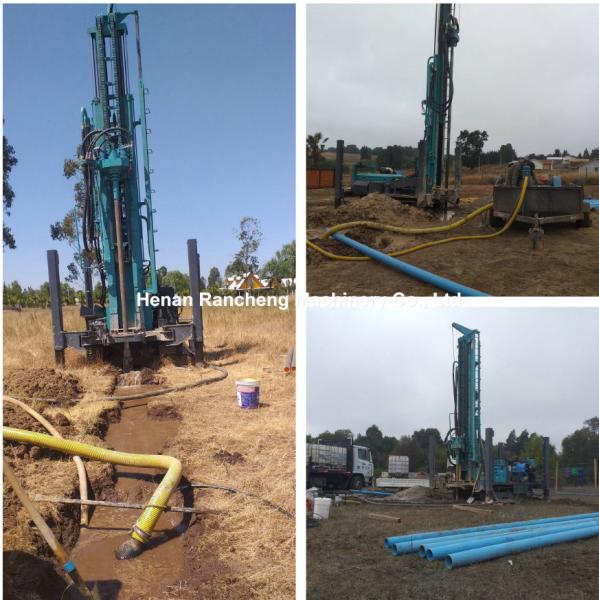

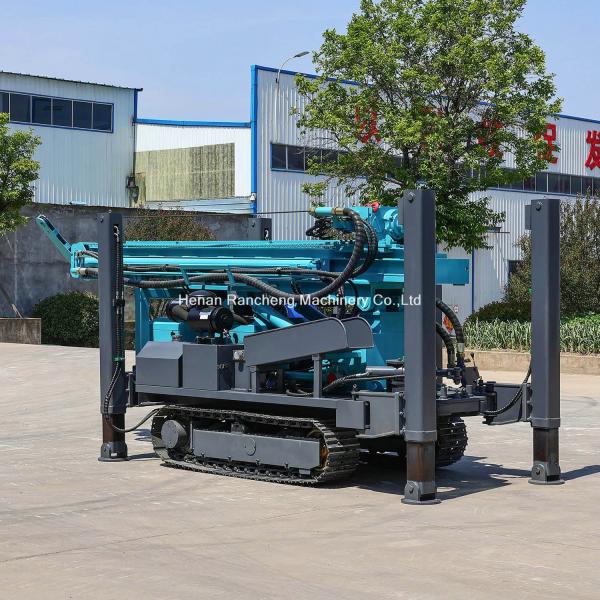

Machine Picture Display

280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation

280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation280m Water Well Drilling Rig Diesel Hydraulic Power CE/ISO Certified For Village / Irrigation
