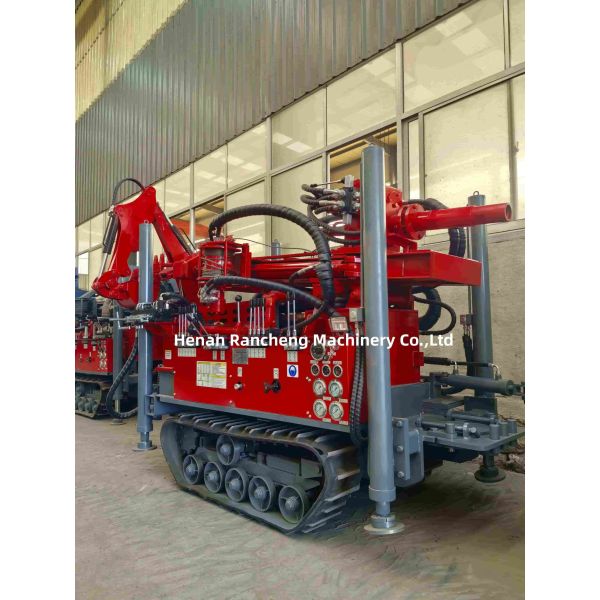

RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe
Specifications
Brand Name :
RanCheng
Model Number :
RCF180S
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
$ 23000-27000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Bore diameter（hammer） :
90-300mm
Bore depth :
180m
Air consumption :
17-31m³/min
Air pressure :
1.7-2.5Mpa
Once-time advance length :
2.4m
Pipe diameter :
76mm/89mm
Description

RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm for 76mm/89mm pipe

Product Description

Tailored to the evolving demands of our European partners, the RCF180S water drill is jointly developed to tackle points in on-site operations.

It resolves a prevalent industry issue: low efficiency caused by deploying multiple dedicated machines for one single project.

The RCF180S enables precise drilling and fulfills all excavation and site preparation tasks without equipment replacement.

Boasting outstanding mobility and full-range performance, it is perfectly suited for construction firms working in rural, remote and hard-to-access areas.

Product Upgrade

1. Drilling & Excavation All-in-One Machine

It integrates a compact water well drilling unit at the front and a 0.8-ton digging arm at the rear. Operators can freely switch between drilling and excavation on-site, with no extra equipment required.

2. Reliable Drilling Performance for Multi-Layer Strata

Powered by a high-performance diesel engine and fitted with a stable rotary drill head, it delivers high-efficiency drilling in soil, sand, gravel and hard rock formations. It is perfectly applicable for drinking water wells, domestic water wells, farm irrigation wells, geothermal wells and small foundation pile drilling.

3. Flexible Digging Arm for On-Site Construction

The 0.8-ton digging arm supports trenching, waste clearance, ground leveling, pipe laying and pre-drilling site preparation. It features responsive control and stable operation, adapting well to confined working spaces.

4. Compact Structure for Narrow Work Areas

Optimized for urban sites, private yards, small construction plots and rugged terrain. The tracked chassis and compact body greatly improve flexibility on narrow passages and soft ground.

5. Upgraded Hydraulic System for Dual Functions

The optimized hydraulic system ensures safe and stable operation for both drilling and digging. Reasonable flow distribution maintains steady torque, lifting capacity and excavation power at all times.

6. Convenient Transportation Design

Equipped with hydraulic outriggers and flexible crawler walking, the machine can be easily loaded onto a light truck. It enables fast deployment for drilling work or quick relocation for excavation tasks.

7. Heavy-Duty Durable Configuration

Key structural components, hydraulic assemblies and wear-resistant parts are adopted to endure long-hour continuous operation. The whole machine is engineered to reduce downtime and lower overall maintenance costs.
