RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
RCF800C Water Well Drilling Machine With Precise Angle Adjustment
Specifications
Brand Name :
RanCheng
Model Number :
RCF800C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 40" container
Name :
Water Well Drilling Machine
Model :
RCF800C
Geology Drilled :
All kind
Drill System and Operation :
Hydraulic
Max Hole Depth :
800m
Hole Diameter :
140-500m
Diesel Engine :
154KW Cummins
Dimension :
6300×2300×2650mm
Description

RCF800C Water Well Drilling Machine with Precise Angle Adjustment

Machine Introduction

The RCF800C revolutionizes water well drilling with its intelligent dual-pump hydraulic system that automatically optimizes power output for maximum efficiency and fuel savings. Engineered for extreme conditions, this rugged crawler-mounted rig features a reinforced steel chassis that withstands the toughest terrains while maintaining exceptional stability. With an industry-leading 800-meter drilling capacity, it effortlessly handles deep water well projects, geological surveys, and mineral exploration. The advanced hydraulic controls provide unparalleled precision, enabling operators to drill perfectly vertical boreholes or smoothly adjust angles up to 90° for specialized applications. Combining brute strength with smart technology, the RCF800C delivers unmatched versatility - whether you're developing water resources, conducting core sampling, or executing complex directional drilling operations in challenging environments. Its innovative design represents the perfect balance of power, precision and operational economy for modern drilling professionals.

Specification

Model RC800C
Drilling way Both mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Diesel engine 154KW Cummins
Max hole depth 800m
Hole diameter

140-500mm
Air consumption

17-42m³/min
Length of drilling pipe 1m/2m/3m/6m
Diameter of drilling pipe

102/108/114mm
Total Weight 13ton
Dimension (L * W * H)

6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

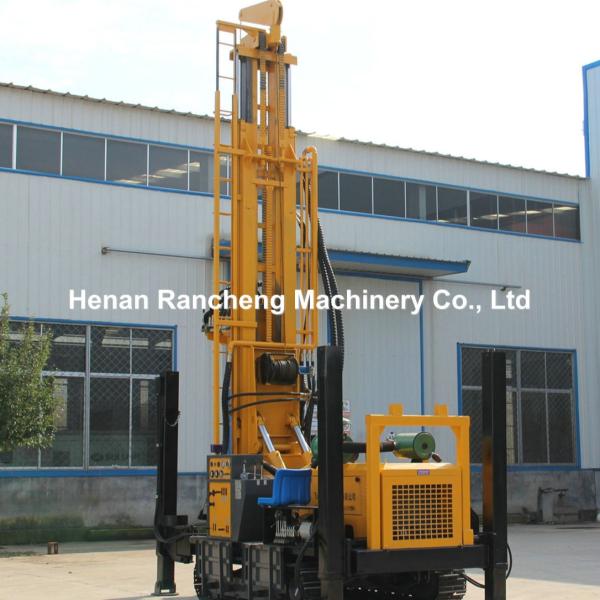

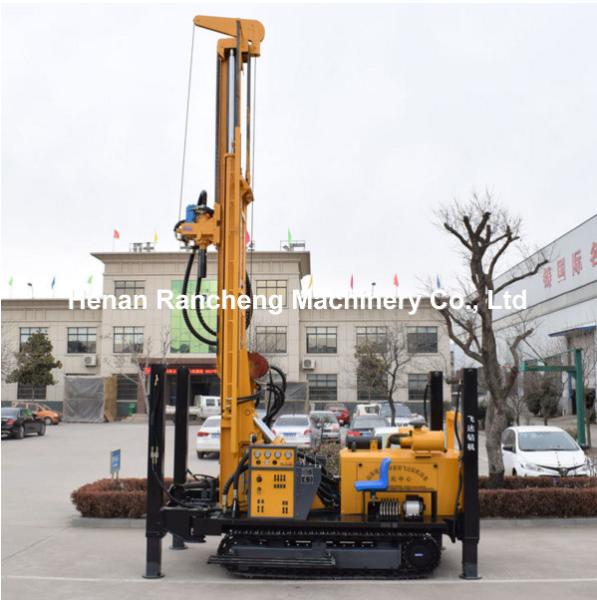

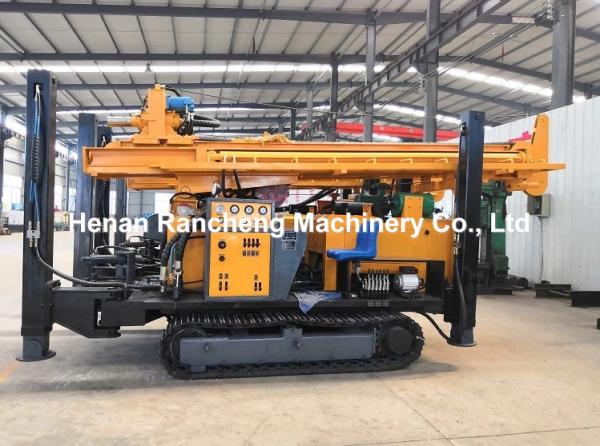

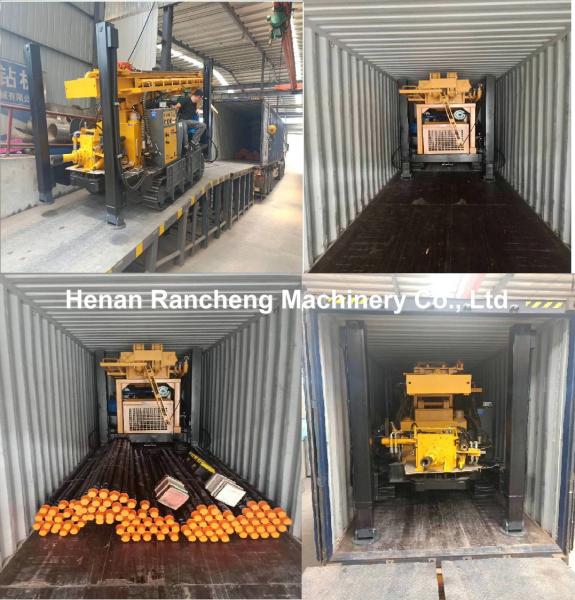

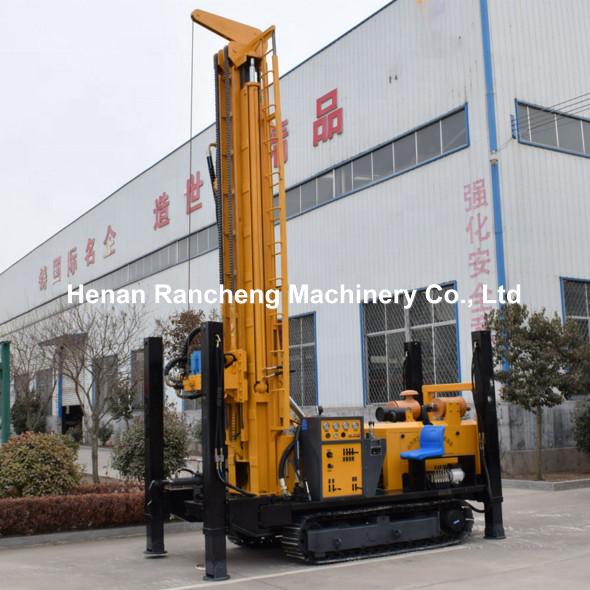

Machine Pictures

RCF800C Water Well Drilling Machine With Precise Angle AdjustmentRCF800C Water Well Drilling Machine With Precise Angle AdjustmentRCF800C Water Well Drilling Machine With Precise Angle AdjustmentRCF800C Water Well Drilling Machine With Precise Angle Adjustment
