Specifications
Brand Name :
RanCheng
Model Number :
RCF350C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Crawler Mounted Water Well Drilling Machine
Model :
RCF350C
Bore Depth :
350m
Diesel Engine :
91KW Yuchai engine
Drilling Way :
Air compressor drilling or mud pump drilling
Operating System :
Full hydraulic operation
Description

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Product Description

RCF350C deepwater water well drilling rig is our self-developed product. This new generation of down-the-hole drilling rig is equipped with stronger air power, which plays an important role in achieving faster drilling speed.

The drilling rig adopts the latest model and advanced hydraulic technology, with low energy consumption, large rotation torque, and convenient hole deviation adjustment. It is made of high-quality materials, with a stylish appearance and compact design, which makes our drilling rig not only more efficient and less prone to failure, but also more economical and durable, with outstanding comprehensive cost performance. Our water well drilling rig has been truly verified by the market and received positive feedback from most customers.



Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


Application

Our water well drilling rigs are mainly used for drilling operations in resource exploration wells, hydrological wells, civil water wells, agricultural irrigation and other projects. Whether it is the location of water sources in underground resource exploration, the excavation of drinking water wells in the field of people's livelihood, or the construction of water sources for farmland irrigation systems, this equipment can play a key role and provide professional support for drilling needs in different scenarios.

After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

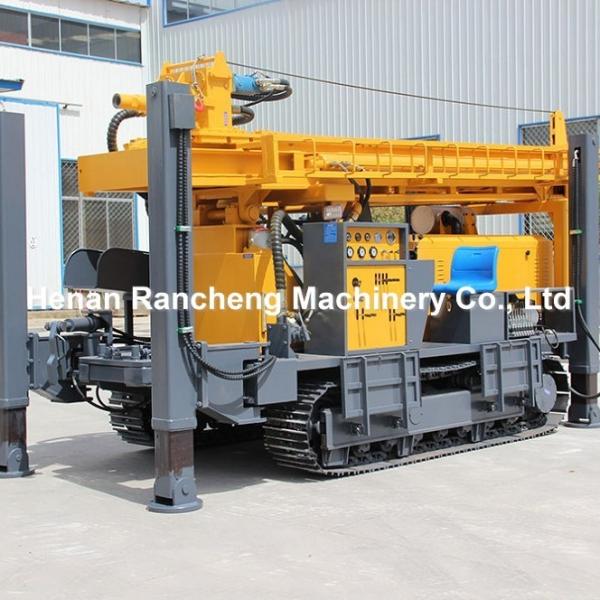

Machine picture display

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig
350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig
350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig
350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig
