RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
Specifications
Brand Name :
RanCheng
Model Number :
RCF180S
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
$ 23000-27000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :

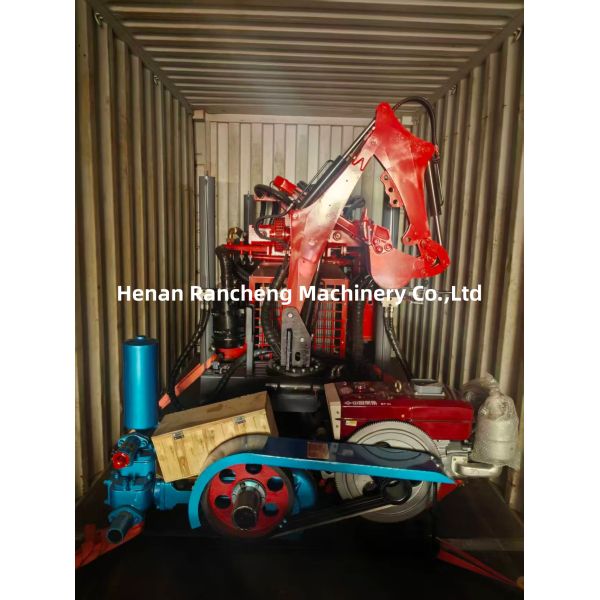

It can be shipped by one 20" container
Bore depth :
180m
Pipe diameter :
76mm/89mm
Bore diameter（hammer） :
90-300mm
Air consumption :
17-31m³/min
Diesel engine :
77.3kw
Once-time advance length :
2.4m
Description

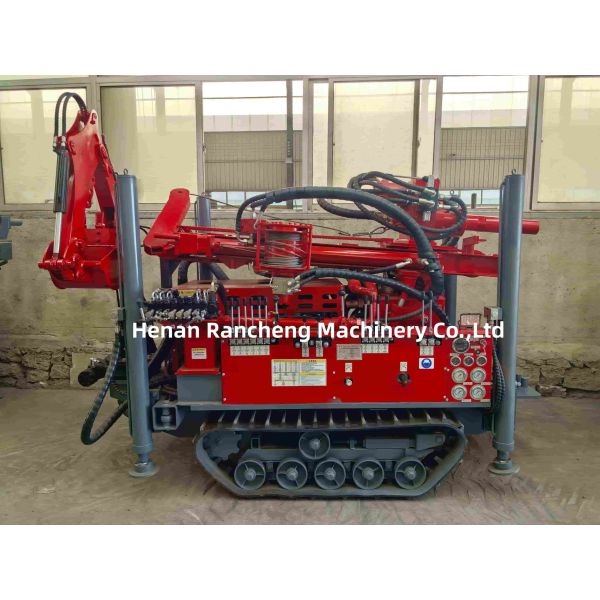

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

Product Description

The RCF180S mini water well drilling rig is equipped with a 77.3kW Yuchai diesel engine, providing powerful performance. It boasts a maximum drilling depth of 180 meters, a rotary head torque of 4600 N·m, and a lifting capacity of 15 tons, offering compact yet powerful capabilities.

Weighing only 2700 kg, the rig features a compact structure, flexible operation, and comes with a 2-meter drill pipe for easy loading and unloading. It utilizes a dual-motor top-drive system, supports both mud and air compressor drilling methods, and includes hydraulic outriggers for convenient transportation.

Suitable for various drilling projects including farmland irrigation, geothermal wells, and deep wells.

Product Upgrade

1. Powerful and High-Performance: Equipped with a 77.3kW Yuchai engine, it boasts a maximum drilling depth of 180 meters and a borehole diameter of 90–300mm. Dual-motor top-drive configuration delivers high torque and efficiency.

2. Compact and Flexible with High Adaptability: Small in size and lightweight, its rubber tracks allow for operation in courtyards and confined spaces, making it suitable for various projects including farmland, geothermal fields, and deep wells.

3. Stable, Reliable, and Convenient to Transport: Fully hydraulic operation with hydraulic outriggers ensures stable operation. Optimized structural design supports truck transport. Dual-purpose for mud/air compressor operation, offering high practicality.


RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale

RCF180S Portable 180-Meter Mini Water Well Drilling Rig For Sale
