RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
Specifications
Brand Name :
RanCheng
Model Number :
RCF200C
Certification :
CE,ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
15 working days
Packaging Details :
It can be shipped by one 20" container
Model :
RCF200C
Pipe length :
3m
Bore Depth :
200m
Pipe diameter :
76mm/89mm
Lifting force :
15T
Diesel engine :
58KW Yuchai
Description
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
The RCF200C deep water well drilling rig is an independently developed product of our company. As a new-generation DTH drilling rig, it is equipped with enhanced air power to deliver a faster drilling speed and higher working efficiency. Adopting advanced hydraulic technology and the latest structural design, this drilling rig features low energy consumption, large rotary torque and flexible hole deflection. It is widely applicable for resource exploration, hydrological wells, civil water supply, agricultural irrigation and other drilling projects.
Manufactured with high-quality raw materials, the machine boasts a compact and exquisite structure. It ensures stable operation, low failure rate, excellent durability and superior cost performance. Verified by the market, our drilling rigs have gained widespread recognition and positive feedback from global customers.
Technical Specifications
Parameter Specification
Model RCF200C
Bore diameter (Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
Feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension (L×W×H) 4000×1800×2300mm
Weight 5000Kg
Diesel engine 58KW Yuchai
Key Advantages

  • 1. Powerful Performance, Exceptional Efficiency
    Featuring a newly developed, proprietary down-the-hole (DTH) drilling configuration, this machine combines upgraded pneumatic power with advanced hydraulic technology. It boasts low energy consumption, high rotational torque, flexible hole positioning, and rapid drilling speeds, making it ideally suited for a wide range of engineering applications—including resource exploration, civil water wells, and agricultural irrigation.

    2. Precision Engineering, Stable and Durable
    Constructed from premium-grade raw materials, the machine features a compact and streamlined structure. It operates smoothly with a low failure rate; its robust chassis ensures exceptional durability, allowing for prolonged, continuous operation without prone to mechanical issues.

    3. High Cost-Effectiveness, Excellent Market Reputation
    Offering outstanding overall economic value and a superior price-performance ratio, this equipment has been rigorously field-tested across global markets. It has garnered widespread recognition and positive reviews from a vast base of satisfied customers.

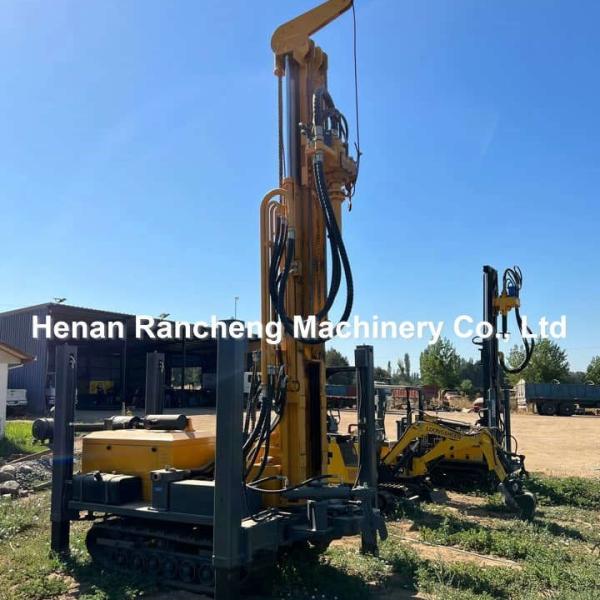

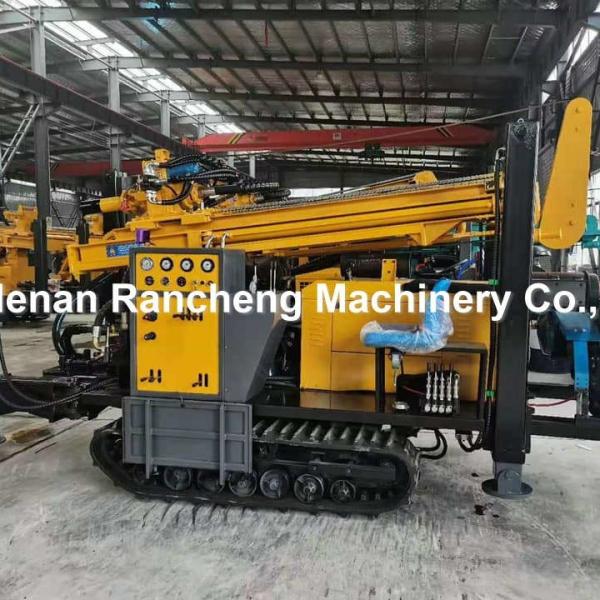

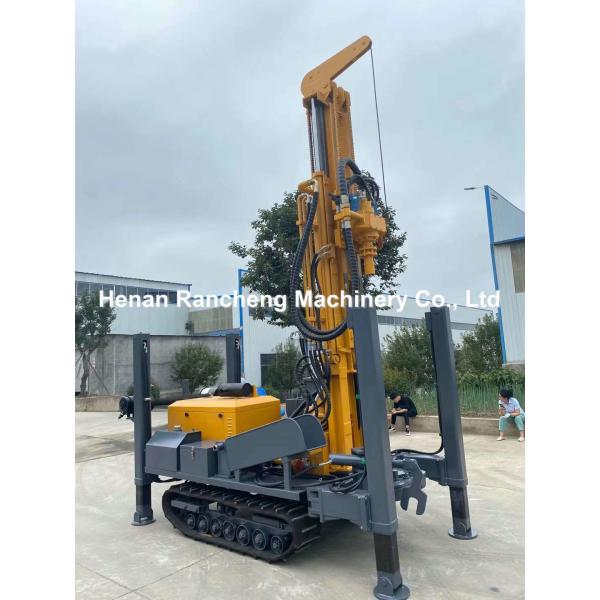

Product Images
RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
