Specifications
Brand Name :
RanCheng
Model Number :
RCF350C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
$ 23000-28000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 40" container
Drill depth :
350m
Max torque of rotary :
6200-9000Nm
Hoist lifting capacity :
2T
Mud Pump flow :
450L/min (option)
Engine :
diesel engine
Drilling way :
Air compressor drilling or mud pump drilling
Description

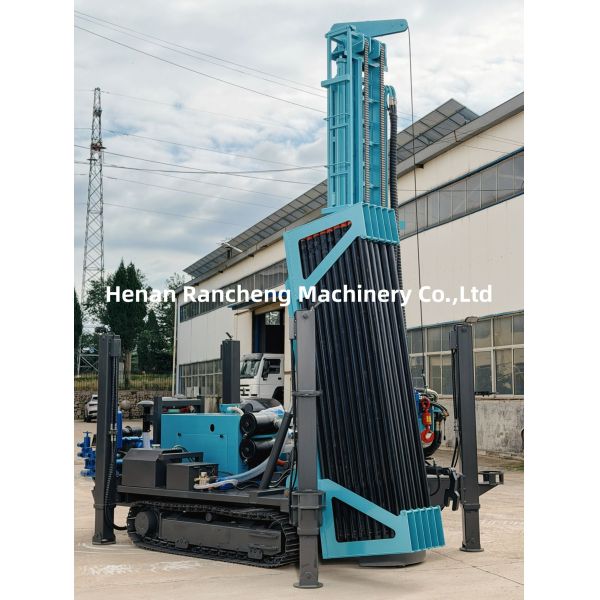

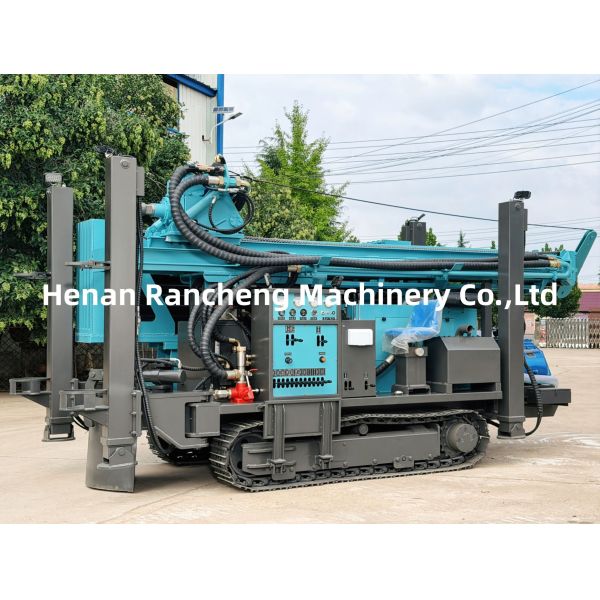

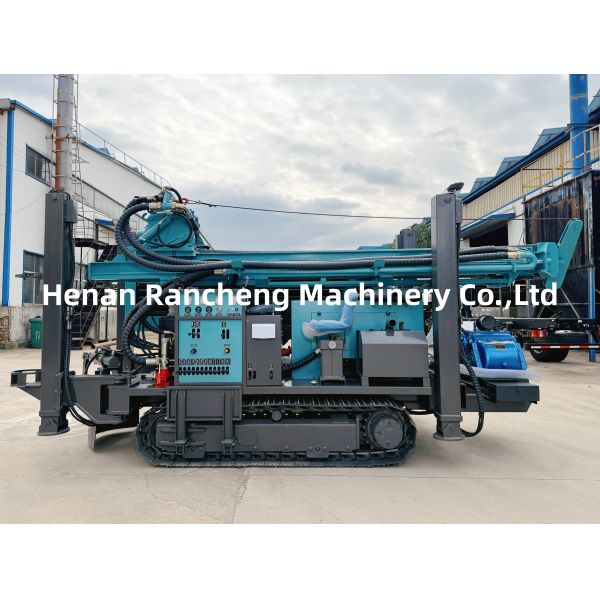

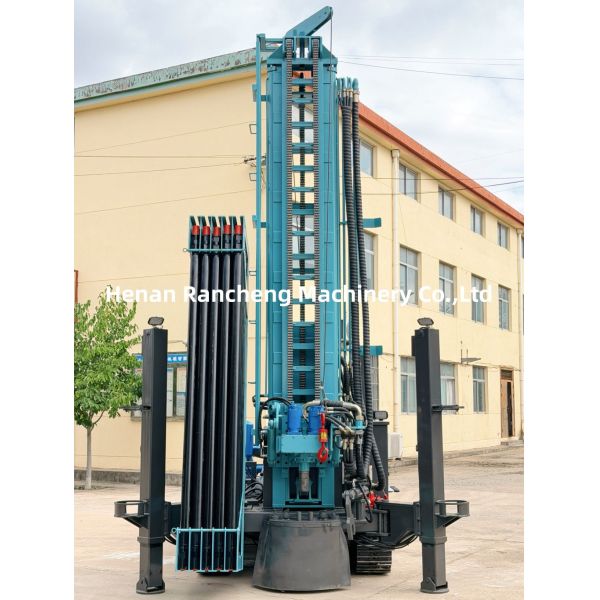

RCF350C Hydraulic Tracked Water Well Drilling Rig Mud Pump Air Compressor

Product Description

The RCF350C is a high-efficiency, multi-functional DTH pneumatic-hydraulic water well drilling rig. It boasts powerful performance, flexible mobility, and adaptability to various geological formations and water well drilling projects, offering outstanding practicality.

Core Parameters and Configuration

1. Power Configuration: Equipped with a 92 kW diesel engine, dual-motor drive, and a top-mounted rotating power head, it can be used in conjunction with mud pumps and air compressors.

2. Drilling Capacity: Maximum drilling depth of 350 meters, borehole diameter of 100-350 mm, easily handling various geological formations such as hard rock, clay, soil, and sand.

3. Mobility and Transportation: Hydraulic rubber track chassis for convenient site relocation; equipped with four 1.7-meter-high hydraulic outriggers for easier truck transport.

Applicable Scenarios

Widely used for drilling various types of water wells, including domestic drinking water wells, agricultural irrigation wells, industrial water wells, geothermal wells, and hydrological monitoring wells, adaptable to diverse civil and industrial drilling needs.

Technical parameters

Bore diameter(hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of rotary 6200-9000Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
weight 8600Kg
Diesel engine 91KW Yuchai engine 4 cylinders
Drilling way Air compressor drilling or mud pump drilling
