RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
Specifications
Brand Name :
RanCheng
Model Number :
RCF260C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
USD21480-USD26480
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
hydraulic water well drilling rig
Model :
RCF260C
Drilling Diameter :
90-350mm
Pipe Length :
1m,2m,3m
Max Torque of the Rotary :
4000-5300Nm
Color :
Customizable
Description
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
Machine Description

RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine

The RCF260C deep-water drilling rig is a new generation of deep-water drilling equipment independently developed by our company. Thanks to its upgraded pneumatic power system, this rig has achieved significant results in improving drilling efficiency.

Our water well drilling rigs adopt the latest model design and advanced hydraulic power technology, featuring low energy consumption, high torque output, and convenient well location and inclination angle adjustment. They are mainly used in resource exploration, hydrological drilling, domestic water well construction, and agricultural irrigation projects.

Our water well drilling rigs are constructed with high-quality materials, featuring a compact structure, reliable performance, and low failure rate. They are economical, efficient, durable, and offer excellent value for money, thus winning widespread market recognition and consistent praise from customers.

Technical Parameters
Parameter Value
Bore diameter (Hammer) 90-350mm
Bore depth 260m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 15T
Lifting speed 2.5m/min
Feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of the rotary 4000-5300Nm
Rotary speed 45-70r/min
Mud Pump flow 200L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension (L×W×H) 4×1.85×2.3M
Weight 6500Kg
Diesel engine 70KW FAW engine
Our Service
  • 24/7 service by chat online and phone
  • Lifelong and free technical support
  • Service overseas: if you need, we can dispatch an engineer to your door

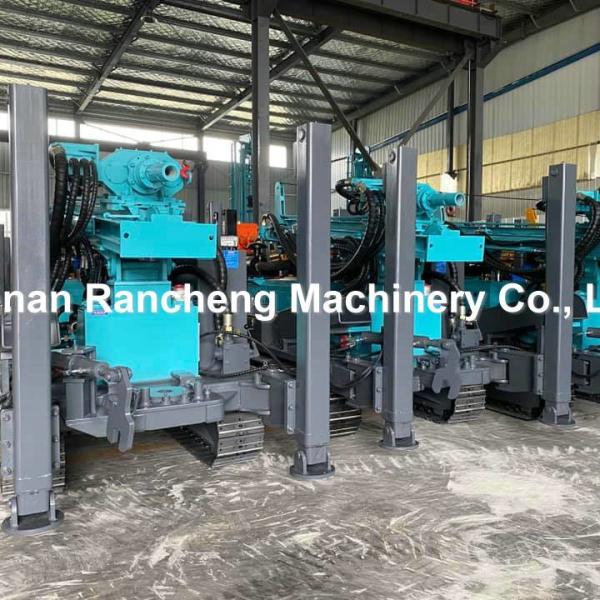

Machine Picture Display
RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine RCF260C Crawler Water Well Drill Rig Hydraulic Rotary Bore Hole 70kw Diesel Water Well Drilling Rig Machine
