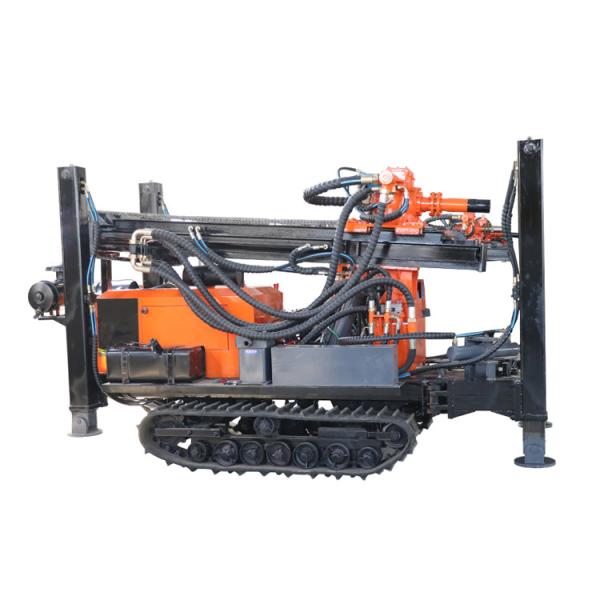

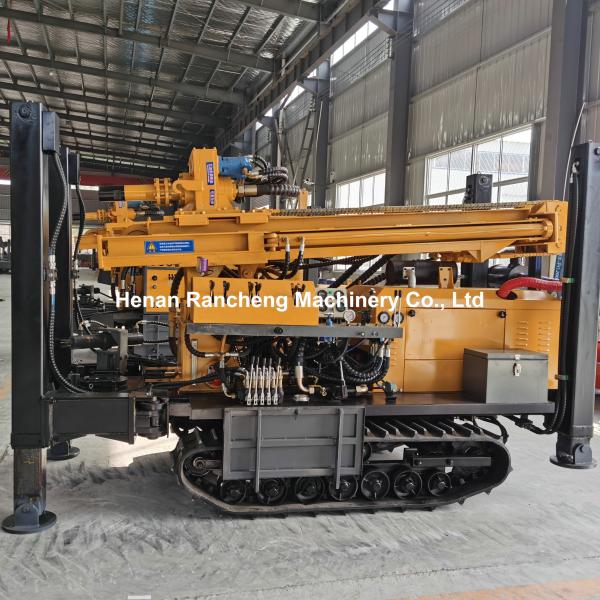

180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
Specifications
Brand Name :
RanCheng
Model Number :
RCF180C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Water Well Drilling Machine
Model :
RCF180C
Bore diameter :
90-300mm
Bore depth :
180m
Air consumption :
17-31m³/min
Air pressure :
1.7-2.5Mpa
Pipe diameter :
76mm/89mm
Pipe length :
3m
Weight :
4500kg
Diesel engine :
55KW Quanchai
Description

180m Depth 90 - 300mm Diameter Crawler Mounted Water Well Drilling Machine 55KW

Product Description


RCF180C crawler mounted water well drilling machine adopts crawler - type walking mode, which is convenient for walking on rough roads and has high safety. The drilling diameter can be adjusted within the range of 90 - 300mm, and the drilling depth is 180m. At the same time, this water well drilling rig has 1.5m high hydraulic legs facilitate the transportation and movement of the machine. Trucks can be used for mobile drilling in various places. This rawler mounted water well drilling machine has a wide range of applications and is favored by customers and has received many praises. Finally, this water well drilling rig can use mud pump and air compressor, which is highly efficient and of good quality.

Technical Parameters

Model RCF180C
Drilling way Mud pump drilling and air DTH hammer drilling
Operation system Full hydraulic operating
Bore diameter(Hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3200-4600Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 3×1.5×2.2M
Weight 4500kg
Diesel engine 55KW Quanchai

Advantages

The drilling rig parameters can be adjusted at any time according to different working conditions and process requirements; the drill pipe can be connected and disassembled conveniently and quickly, which significantly improves the operating efficiency; the down - the - hole hammer is used for penetration in rock formations, with a faster penetration speed; in loose formations Excellent performance and wide applicability; fully hydraulic, top - drive rotary propulsion lift, easy to operate, high operating efficiency; equipped with high hydraulic outriggers and rubber crawler chassis for easy transportation and operation; equipped with a 55KW all - diesel engine, reliable performance; design The unique combined tower has a double - cylinder lifting capacity of up to 12 tons, ensuring stability and load - bearing capacity.

Pictures

180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia

180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia

180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia

180m Depth Crawler Mounted Drill Rig Machine 55KW 90mm - 300mm Dia
