Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Specifications
Brand Name :
RAYTECH
Model Number :
HT-225A
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
500units per month
Delivery Time :
5 working days
Packaging Details :
Standard Export Carton
Product Name :
Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
Test range :
10~60Mpa
Standard impact energy :
2.207J（0.225Kgf.m)
Stroke of rebound hammer :
75mm
Friction of pointer slider :
0.5N~0.8N
Sphere radius of rebound pole SR :
25mm±1mm
Description

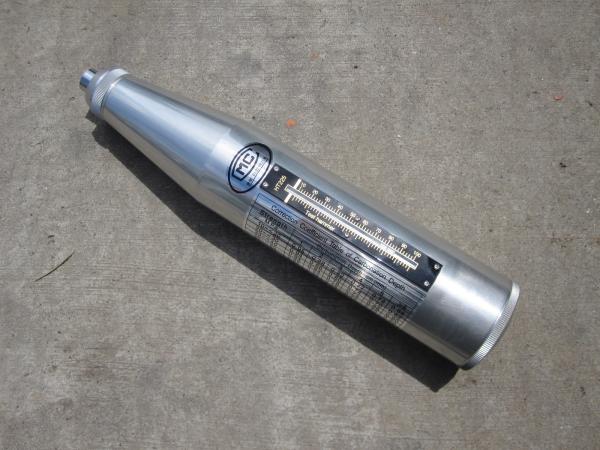

Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer

Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer

Brief introduction:

The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2001. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.

Trait:

1)Center rod is made from imported material, high accuracy and durable resistance.

2)The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.

3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Parameter

Test range

10~60Mpa
Standard impact energy

2.207J(0.225Kgf.m)
Stroke of rebound hammer

75mm
Friction of pointer slider

0.5N~0.8N
Sphere radius of rebound pole SR

25mm±1mm
Average rebound value on steel anvil Rm

80±2
Size

Φ54*278mm
Weight

≈1KG

HT-225 A same as HT-225, just added spare parts:Strike tension spring and screw driver.

Manual Concrete Test Hammer, Schmidt Test Hammer, Concrete Rebound Hammer
