Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
Specifications
Brand Name :
RAYFON
Model Number :
RCFE
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$15000-200000
Payment Terms :
,T/T,Western Union
Supply Ability :
1000pcs
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Production capacity :
300 - 3000kg/h
Automatic grad :
Automatic
Color :
Customized
Voltage :
380v 50hz 3phase
Plastic type :
Hard Plastic& Soft Plastic
Applicable industries :
Manufacturing Plant, Machinery Repair Shops, Construction works, Farms, Building Material Shops
Keywords :
Plastic Floating Sinking Separation Tank, PET Sink Float Separation Machine, Hydrocyclone Separator for Plastic Recycling, PET Flakes Sink Float Separator, Plastic Washing Line Float Sink Tank, Plastic Flakes Sink-Float Separator, HDPE Sink Float Separatio
Motor :
Wannan Brand
Item Name :
Sinking-Floating Separation Tank for Plastic Recycling
Description

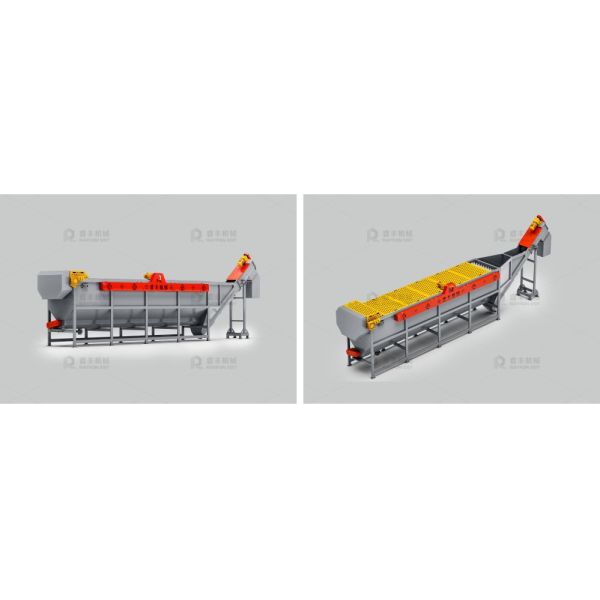

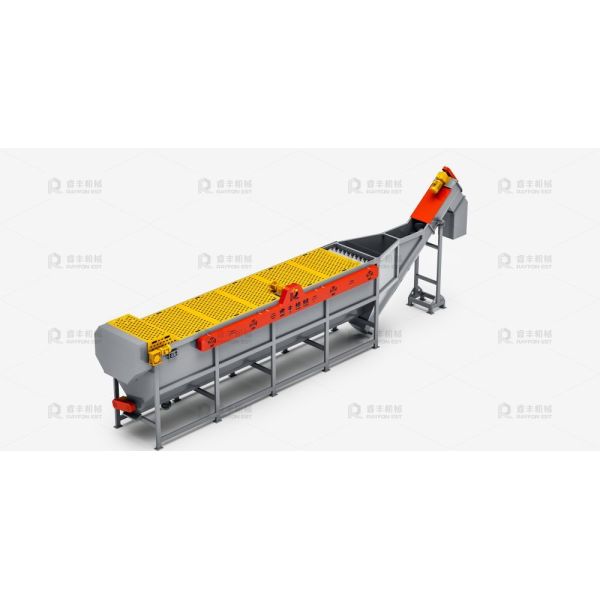

Plastic Sink-Float Separation Tank & Bottom Discharge Conveyor for Plastic Recycling Machine

Plastic Sink Float Separation Tank Automated With Bottom Discharge ConveyorFunction:
The RAYFON EST Plastic Sink-Float Separation Tank & Bottom Discharge integrated system is designed for density-based separation and automated material handling in plastic recycling processes. It separates mixed plastic flakes by utilizing differences in specific gravity — lighter materials float and are skimmed off, while heavier materials sink and are extracted from the bottom. The bottom discharge conveyor continuously removes settled solids, ensuring uninterrupted operation and high-purity output.

Key Features:

1.High-Efficiency Separation Tank:Adjustable water flow & density control for precise separation of plastics.

2.Automated Bottom Discharge Conveyor: Submerged screw convey system for continuous removal of sunk materials.

3.Integrated Filtration & Water Recycling: Multi-stage filtration units to remove fine contaminants and maintain water clarity.Closed-loop water system minimizes water consumption and environmental impact.

4.Smart Control System: PLC-based automation with touchscreen HMI for real-time monitoring of separation efficiency.Sensors to detect material levels and prevent conveyor overload or dry running.

Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor

Equipment Specification:

ITEM UNIT RCFA-1260 RGJS-1580
Motor Power kW/HP 5.9/8 5.9/8
Machine Length mm 6000 8000
Machine Width mm 1200 1500
Machine Height mm 2515 2975

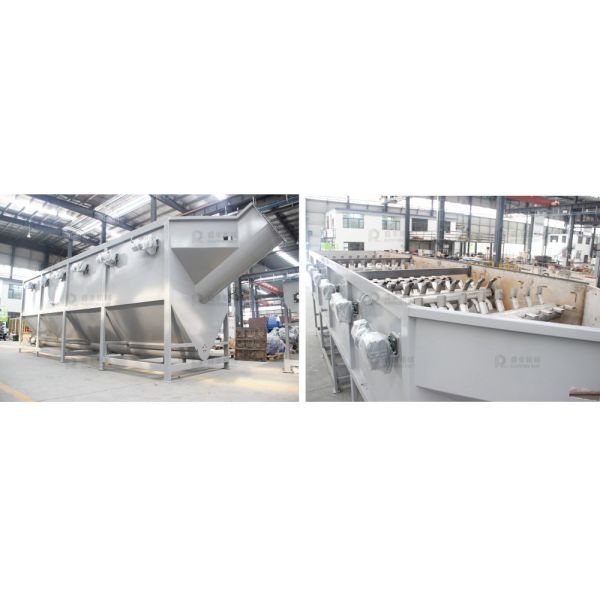

Physical Pictures:

Plastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor

Applications:

Post-consumer plastic recycling: Separation of mixed plastic flakes (e.g., PET bottles, HDPE containers, PVC fragments).
Customizable for specific material streams: Can be adapted for nylon, PC, or composite material separation by adjusting medium density.
Plastic Sink Float Separation Tank Automated With Bottom Discharge ConveyorPlastic Sink Float Separation Tank Automated With Bottom Discharge Conveyor
