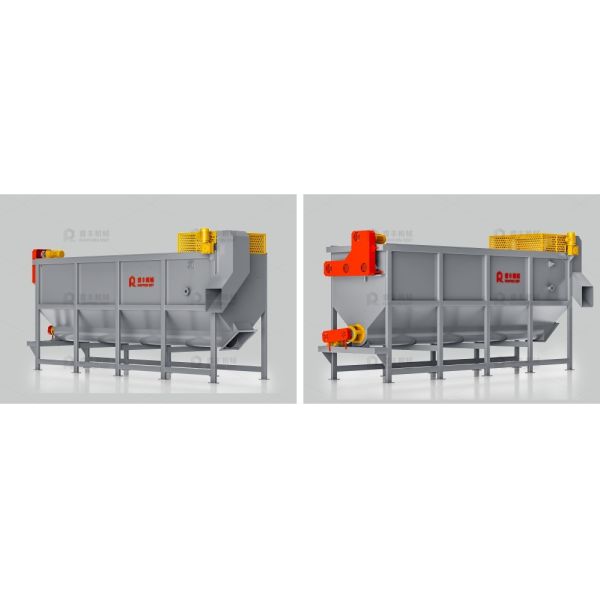

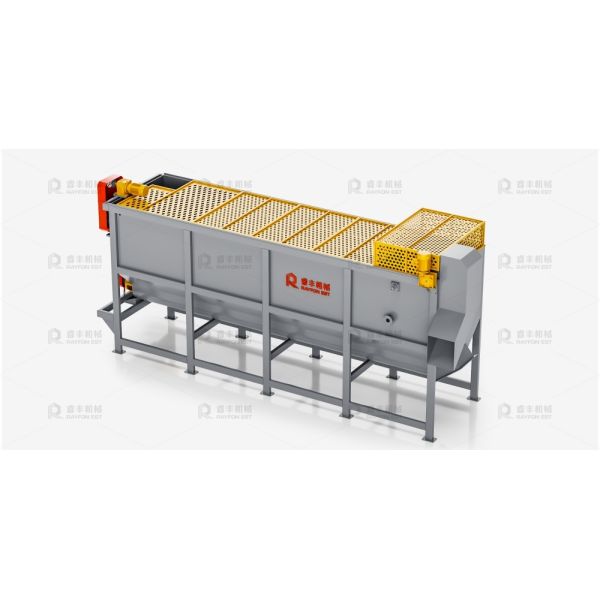

Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
Specifications
Brand Name :
RAYFON
Model Number :
RCFC
Place of Origin :
China
MOQ :
1
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Motor Power :
7.5kW
Plastic Type :
PP/PE, PET, hard plastics, HDPE
Material :
Carbon Steel/SUS 304
Processing Capacity :
500-2000kg/h
Dimensions :
1200*6000*1200 Mm(customizable)
Applicable materials :
Plastic Flakes after crushing
Description

Plastic Flakes Three-Pass Cleaning Washing Tank

Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing TankFunction:
Utilizes a multi-chamber, counter-current flow principle to continuously separate and settle heavy contaminants from plastic flakes in a water medium. It effectively sinks debris like sand and stones while allowing clean flakes to overflow for the next stage, ensuring deep impurity removal.

Key Features:

1.Three-Stage Sedimentation Design: Features three interconnected compartments that guide materials through progressively cleaner water, allowing for repeated and thorough settling of heavy contaminants, resulting in superior cleaning efficiency.

2.Robust & Corrosion-Resistant Construction: The tank body is fabricated from high-grade stainless steel (e.g., SS304 or SS316) or carbon steel with anti-corrosion coating, ensuring long service life and resistance to rust and abrasion.

3.Efficient Agitation & Separation: Equipped with specially designed paddle agitators in each compartment. These agitators keep the plastic flakes in suspension, preventing them from sinking while vigorously separating adhered dirt and guiding heavy particles to settle at the bottom.

4.Continuous Sludge Removal System: The bottom of each sedimentation chamber is designed with a conical or sloped base and is equipped with sludge discharge valves, allowing for periodic or continuous removal of accumulated sediments without interrupting the production process.

Three Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank

Equipment Specification:

ITEM UNIT RCFC-1260
Motor Power kW/HP 6/9
Machine Length mm 6850
Machine Width mm 1620
Machine Height mm 3105

Applications:

All kinds of normal hard plastic flakes,such as PET,PE,PP,HDPE plastic flakes and so on

PET plastic bottle

HDPE daily household waste containers

PP plastic busket, beverage cup

ABS PS Toy carThree Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing TankThree Stage Float Sink Tank Corrosion Resistant Plastic Flakes Washing Tank
