22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
Specifications
Brand Name :
RAYFON
Model Number :
RTSA
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$20000-$40000
Payment Terms :
,T/T,Western Union
Supply Ability :
1000pcs
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Motor Power :
22-37kw
Plastic Type :
PP/PE, PET, hard plastics, HDPE
Processing Capacity :
500-2000kg/h
Power Supply :
380V/50Hz, Customizable
Control System :
PLC + Touch Screen
Separation Efficiency :
≥99%
Body Material :
304 Stainless Steel
Maintenance Cycle :
≥3000 Working Hours
Automation Degree :
Full-Automatic
Applicable Industry :
Waste Plastic Recycling
Description

Plastic Screening Machine Plastic Rubber Separator

22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine

Function:
The RAYFON EST Plastic Rubber Separator is a specialized density-based sorting machine designed to efficiently separate rubber and other heavy contaminants from plastic flakes. It utilizes the difference in specific gravity between materials in a controlled water medium to ensure high-purity plastic output for superior recycling quality.

Key Features:

1.High-Precision Separation: Effectively separates rubber, silicone, and other heavy impurities from various plastic types.

2.Gentle Washing Action: Cleans plastic flakes without causing damage, preserving material integrity.

3.Continuous Operation: Automated feeding and discharging enable high-volume, uninterrupted processing.

4.Water Recycling System: Integrated water circulation and filtration minimize fresh water consumption and waste.

5.Robust Construction: Built with corrosion-resistant materials for durability in demanding environments.

6.Adjustable Parameters: Allows for optimization of water flow and other settings for different material mixes.

22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine

Equipment Specification:

ITEM UNIT RTSW-5012D RTSW-6012D RTSW-8015D
Rotor diameter mm 500 600​ 800
Rotor width mm 1200 1200 1500
Motor power kW/HP 22/30 30/40 55/75
Machine Length mm 2230 2530 2750
Machine Width mm 1630 1990 2230
Machine Height mm 3450 3600 3700
Dehydrating Rate % 98.5% 98.5% 98.5%
Process Capacity KG/H ≤1000 ≤3000 ≤5000

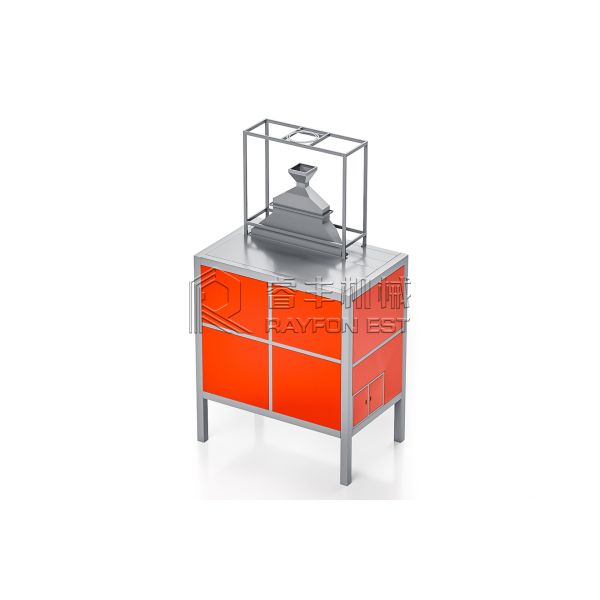

Physical Pictures:

22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine

Applications:

All kinds of normal hard plastic flakes,such as PET,PE,PP,HDPE plastic flakes and so on

Recycling of post-consumer plastics like PET bottles, HDPE containers, and PP products.
Purification of plastic flakes from end-of-life vehicles
Processing of electronic waste plastics to remove rubber seals and contaminants.
Cleaning of post-industrial plastic scrap from manufacturing processes.

22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine22-37kw Plastic Screening Machine Customizable 304 Stainless Steel Plastic Recycling Machine
