Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
Specifications
Brand Name :
RAYFON
Model Number :
RTSA
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5000-200000
Payment Terms :
,T/T,Western Union
Supply Ability :
1000pcs
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Plastic Type :
PET/PP/PE Flakes
Production capacity :
300 - 2000kg/h
Color :
Customized
Voltage :
380v 50hz 3phase
Applicable industries :
Manufacturing Plant, Machinery Repair Shops, Construction works, Farms, Building Material Shops
Automatic grad :
Automatic
Dust Cover :
with inspection windows
Vibration Amplitude :
5mm
Mesh Size Range :
0.5mm - 25mm
Description

Plastic Recycling Vibrating Screen Machine

Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 PhaseFunction:
The RAYFON EST Plastic Recycling Vibrating Screen Machine is designed for efficient classification and removal of fine contaminants from plastic flakes. Utilizing high-frequency vibration, it separates materials based on particle size to ensure consistent product quality and eliminate undersized particles from the recycling stream.

Key Features:

1.Multi-layer screen design enables simultaneous classification into different size fractions.

2.High-frequency linear vibration mechanism prevents screen clogging.

3.Fully enclosed structure prevents dust emission and material spillage.

4.Quick-release screen frames allow for easy screen replacement and cleaning.

5.Rubber spring suspension system provides effective vibration isolation.

6.Low-power vibration motor with adjustable amplitude control.

Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase

Equipment Specification:

ITEM UNIT RTSW-5012D RTSW-6012D RTSW-8015D
Rotor diameter mm 500 600​ 800
Rotor width mm 1200 1200 1500
Motor power kW/HP 22/30 30/40 55/75
Machine Length mm 2230 2530 2750
Machine Width mm 1630 1990 2230
Machine Height mm 3450 3600 3700
Dehydrating Rate % 98.5% 98.5% 98.5%
Process Capacity KG/H ≤1000 ≤3000 ≤5000

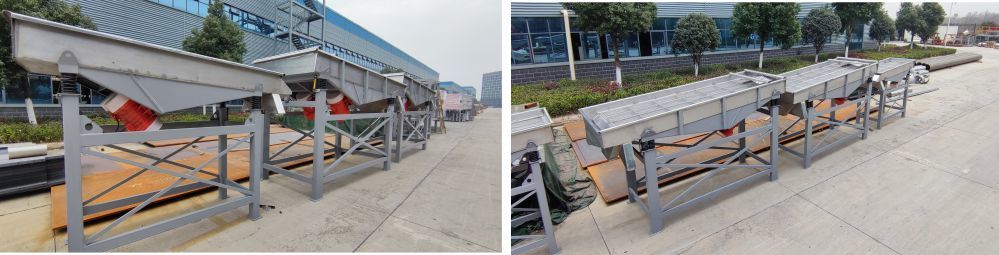

Physical Pictures:

Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase

Applications:

Classification of PET flakes after washing and drying processes.
Removal of fine contaminants and dust from plastic regrind materials.
Size grading of recycled PP/PE flakes for pelletizing operations.
Quality control screening in plastic compounding and manufacturing.
Separation of film fragments from rigid plastic flakes in mixed streams.Plastic Recycling Vibrating Screen Machine 300-2000kg/H 3 PhasePlastic Recycling Vibrating Screen Machine 300-2000kg/H 3 Phase
