Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
Specifications
Brand Name :
RAYFON
Model Number :
RLXD-4050U
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$6000-$10000
Payment Terms :
,T/T,Western Union
Supply Ability :
1000pcs
Delivery Time :
30-45days
Packaging Details :
Containers
Warranty Period :
1 year
Motor Power :
2.2kw
Plastic Type :
PP/PE, PET, hard plastics, HDPE
Size :
φ400mm*L5000mm
Screw Thickness :
5mm
Trough Type :
U-Trough
Industry Application :
Waste Plastic Recycling
Suitable for Material Type :
Powders, Granules, Pellets, Flakes
Screw Materia :
Carbon Steel, Stainless Steel 304
Inclination Angle :
0°, 20°, 45°
Description

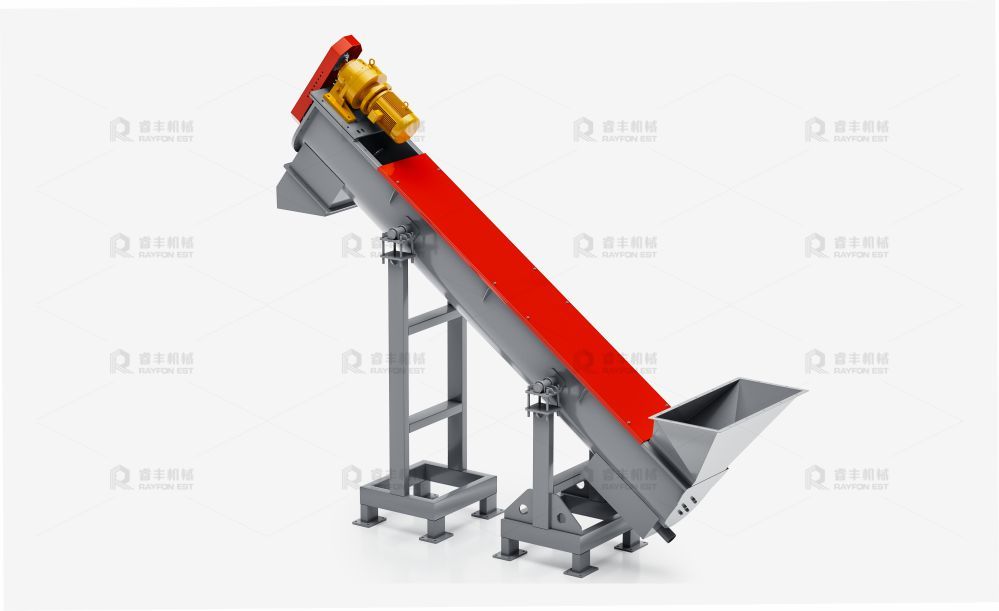

Plastic Single Screw Conveyor

Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped TroughFunction:
The RAYFON EST Plastic Single Screw Conveyor is designed for continuous horizontal or inclined transportation of plastic materials such as flakes, granules, and powders. It efficiently moves bulk materials through a closed trough using a rotating helical screw, ensuring dust-free and controlled transfer between processing stages.

Key Features:

1.Fully enclosed U-shaped trough design prevents material spillage and contamination.

2.Modular construction allows for customizable length and configuration.

3.Wear-resistant screw flight with specialized coatings for extended service life.

4.Low maintenance design with easy-access inspection covers.

5.Energy-efficient motor with variable speed control for precise flow adjustment.

6.Smooth inner surface prevents material accumulation and bridging.

Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough

Equipment Specification:

ITEM UNIT RTSW-5012D RTSW-6012D RTSW-8015D
Rotor diameter mm 500 600​ 800
Rotor width mm 1200 1200 1500
Motor power kW/HP 22/30 30/40 55/75
Machine Length mm 2230 2530 2750
Machine Width mm 1630 1990 2230
Machine Height mm 3450 3600 3700
Dehydrating Rate % 98.5% 98.5% 98.5%
Process Capacity KG/H ≤1000 ≤3000 ≤5000

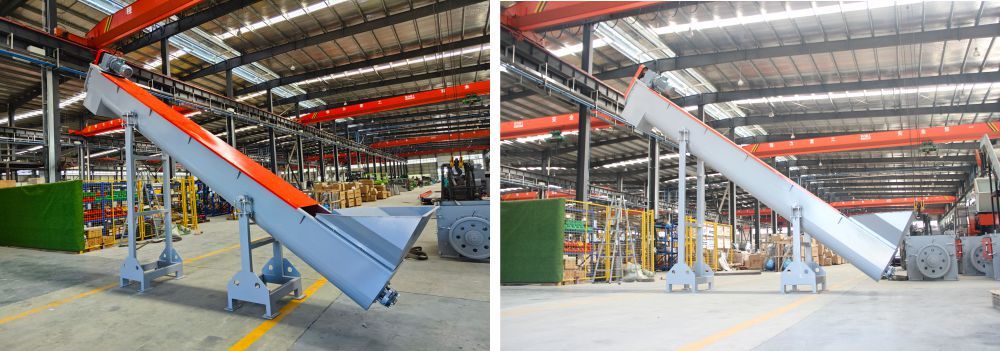

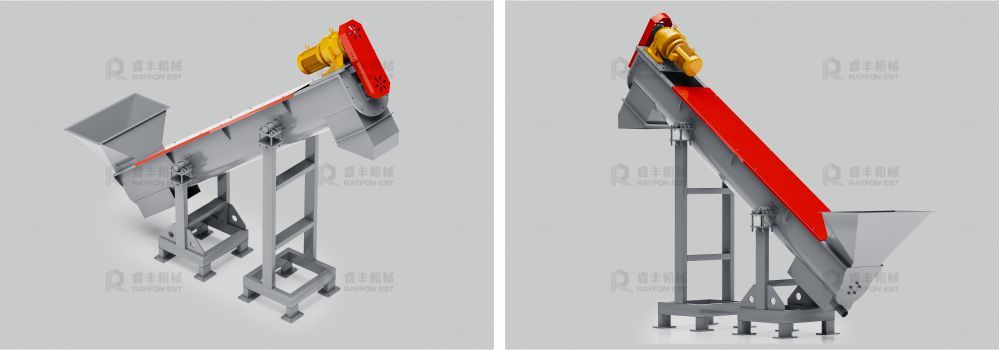

Physical Pictures:

Plastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough

Applications:

Feeding washed flakes to dewatering and drying systems in recycling plants
Transporting plastic granules between silos and processing machines
Conveying plastic powders in compounding and manufacturing facilities
Moving regrind materials in injection molding and extrusion workshops
Handling PET flakes, PE/PP granules, and PVC powders across various industriesPlastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped TroughPlastic Conveyor Equipment Single Screw Conveyor 2.2kw Modular With U Shaped Trough
