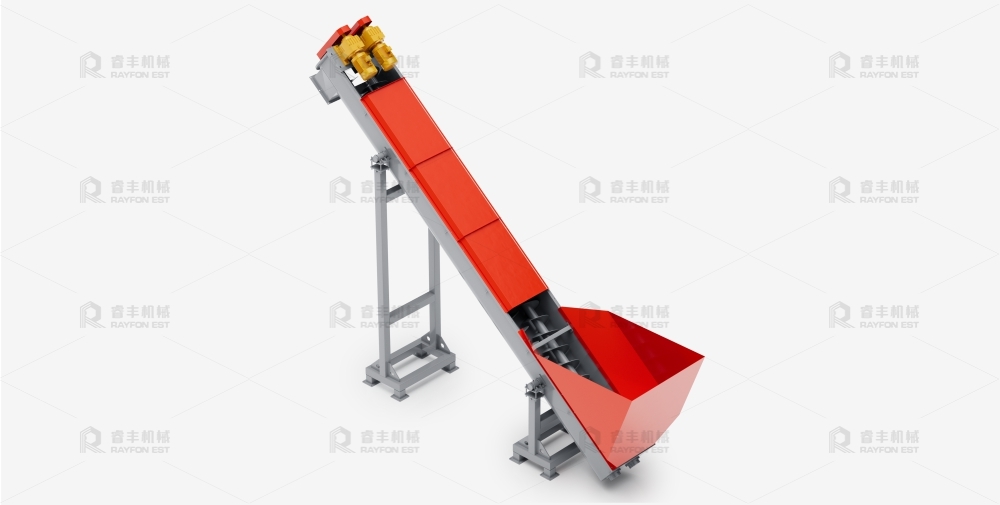

Double Screw Material Loading Feeding Machine for Plastic Recycling

Function:

The Double Screw Material Loading Feeding Machine is designed for continuous and stable feeding of large quantities of whole plastic bottles and rigid containers into the crushing stage. It is widely used in PET bottle recycling lines, HDPE container recycling lines, and high-capacity plastic washing plants, ensuring smooth material flow and improving the overall efficiency of the recycling process.

Key Features:

1. High-capacity feeding performance
Suitable for plastic recycling production lines with capacities of 3 tons/h and above, providing continuous feeding of large volumes of bottles before crushing.

2. Flexible installation design

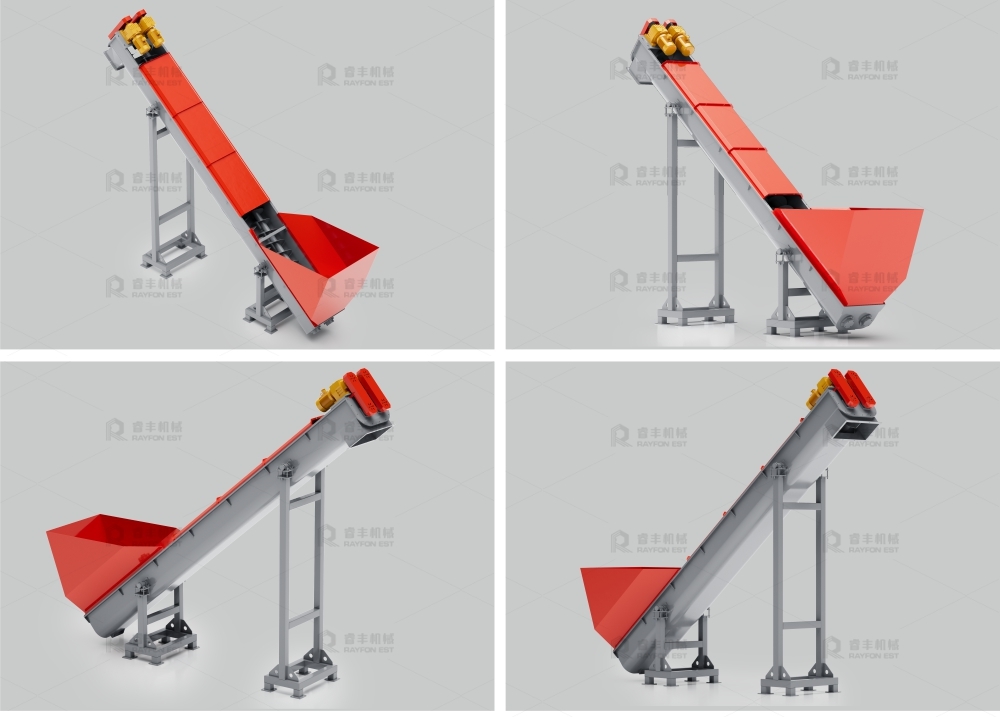

The feeding machine can be installed in horizontal, inclined, or vertical configurations according to different factory layouts and production requirements, helping optimize plant space utilization.

3. Stable and safe operation
Equipped with a standard top safety cover to improve operational safety and prevent material overflow. The cycloidal pin gear reducer provides strong torque, stable transmission, and reliable long-term operation.

4. Easy cleaning and maintenance
A reserved waste discharge outlet at the bottom allows convenient removal of impurities and residual materials, reducing maintenance time during daily operation.

5. Adjustable support structure
The support legs are equipped with saddle-type fine adjustment modules, allowing precise height and level adjustment for easier installation and stable connection with upstream and downstream equipment.

Equipment Specification:

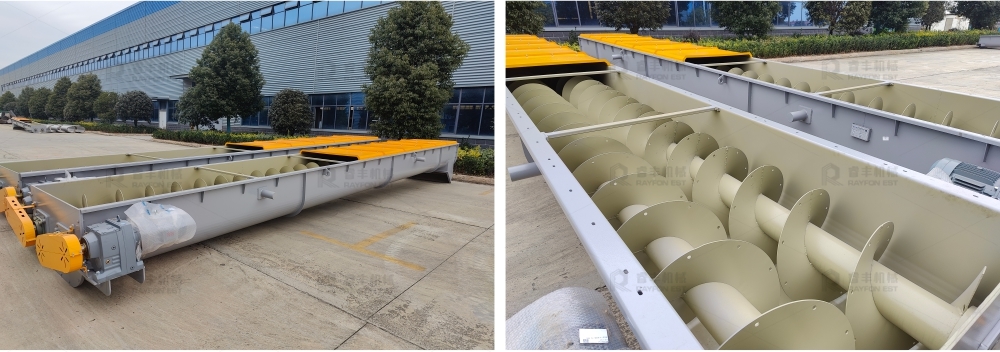

Physical Pictures:

Applications:

All kinds of normal bottles

PET plastic bottles

HDPE daily household waste containers
