Sgnss60' 70t Payload Flatbed Rail Car TSI EN UIC Standard
Sgnss60' 70t Payload Flatbed Rail Car TSI EN UIC Standard
Specifications
Brand Name :
Railteco
Model Number :
Sgnss60
Certification :
TSI EN UIC
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Railway Container Wagon TYPE Sgnss60
Axle Load :
≤22.5 T
Tare weight :
≤20t
Max. Operating speed(empty) :
120km/h
Rim (single wagon) :
75m
Track Gauge :
1435mm
Standard :
EN,TSI,UIC
Payload :
70t
Coupler type :
Screw coupler
Description

Flatbed Rail Car Railway Container Wagon Flat Wagon Rail Standard Gauge Wagon Freight Wagon

Y25 Bogie Wagon Sgnsss60' Container Wagon

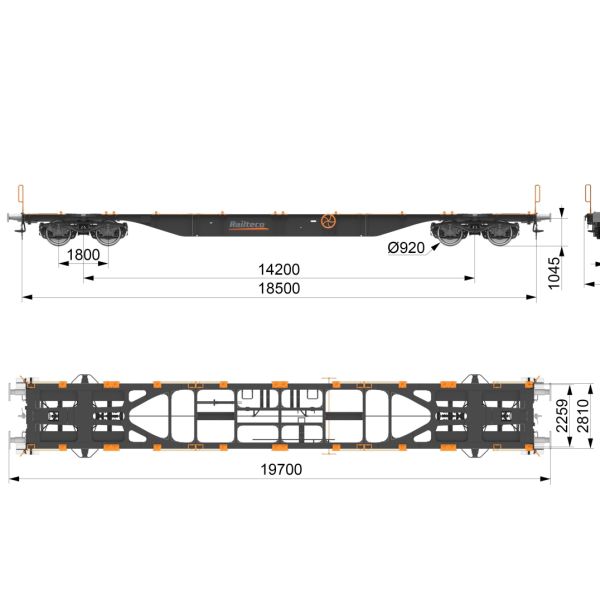

Parameters of Railway Container Wagon:

Tare weight ≤20t
Payload 70t (3TEU)
Loading height 1155mm
Axle load ≤22.5t
Length over the coupler 19700mm
Track gauge 1435mm
Rim (single wagon) 75m
Bogie type Y25Lsd-1
Max. operation speed (empty) 120km/h
Max. operation speed (load) 100km/h
Kinematical gauge G1-TSI
Brake type GP-A-K
Coupler type Screw coupler

Description of Railway Container Wagon:

The max. operation speed(empty) is 120km/h.

The wagon design meets the requirements of TSI, EN, UIC standard.

The wagon is suitable for carrying containers and swap bodies of various lengths (20', 30', 40') classified in UIC592.

Series 1 freight containers - 1CX, 1C, 1CC, 1BX, 1B, 1BB, 1AX, 1A, 1AA.

Symmetrical swap bodies - 20,21,22,23,24,26,29,30,31,40,42,44,45.

Asymmetrical swap bodies - NA+81,82,84,85,(86)(1), (60)(2)(3).

Loading possibilities are in accordance with loading diagram.
