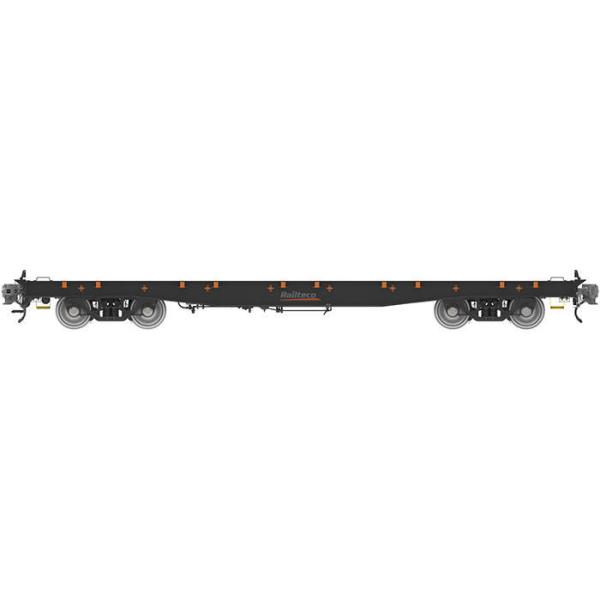

Light Weight Flatbed Rail Car Heavy Load 88m Minimum Curve Radius
Light Weight Flatbed Rail Car Heavy Load 88m Minimum Curve Radius
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Payment Terms :
T/T, L/C
Supply Ability :
According to customer's requirement
Delivery Time :
6 months
Packaging Details :
Railteco Standard Packing
Name :
Flatbed Rail Car
Tare weight :
≤16t
Load capacity :
44 T
Axle load :
17.5 T
Gauge :
1000mm
Min. Curve Radius :
88m
Price :
Negotiable
Description

Flatbed Rail Car Railway General Purpose Flat Wagon Freight Wagon Rail Flat Wagon Container Wagon

Main Characteristics of Railway Flat Wagon:

1) The wagon has the characteristics of light weight, heavy load, and wide adaptability of loading cargo;

2) It can add movable side wall and movable end wall according to the customer's requirements.

Application of Railway Flat Wagon:

The wagon has the function of loading multiple cargoes. It can not only load international standard containers of 20GP or 40GP, but also transport cargos such as steel, automobiles, boxed goods, and large concrete bridges, etc.

Parameters of Railway Flat Wagon:

Tare Weight ≤16t
Gauge 1000mm
Load Capacity 44t
Axle Load 17.5t
Min. Curve Radius 88m
Maximum Operating Speed (empty, loaded) 75km/h
Length 13650mm
Height from track surface to container load surface (unloaded) 1053mm
Height from track surface to coupler center line (unloaded ) 585mm
