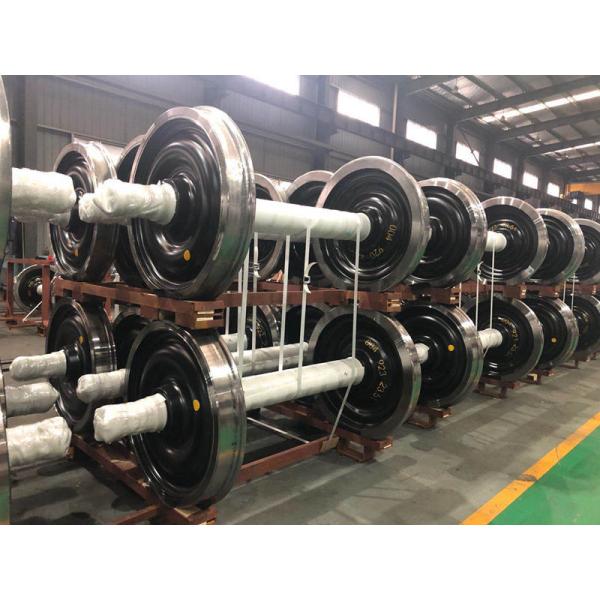

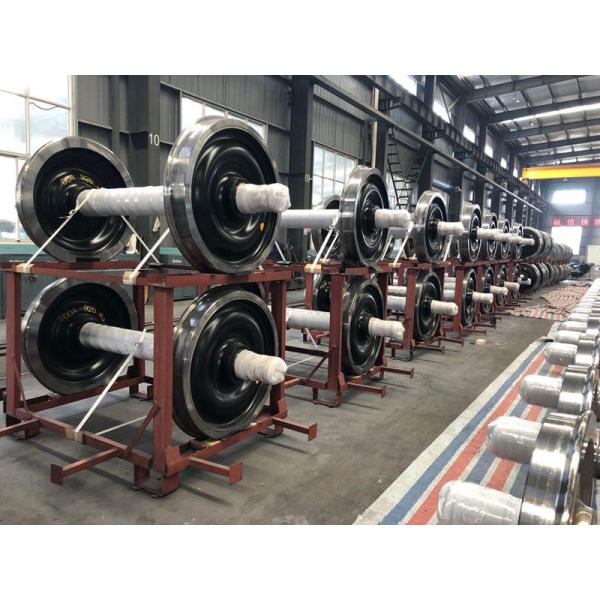

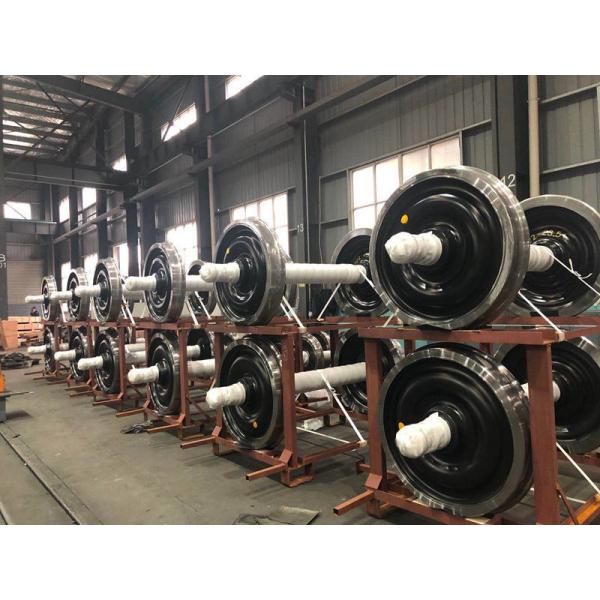

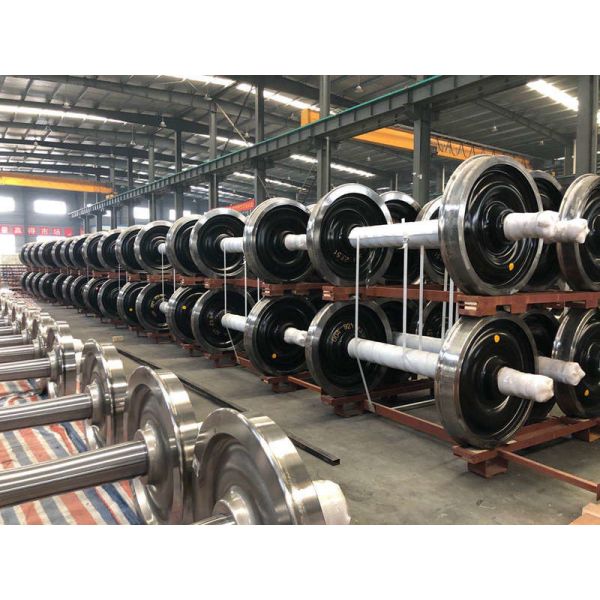

23.5t Railway Wheel Set
23.5t Railway Wheel Set
23.5t Railway Wheel Set
23.5t Railway Wheel Set
23.5t Railway Wheel Set
23.5t Railway Wheel Set
Specifications
Brand Name :
Railteco
Model Number :
BA004 wheel set
Certification :
TSI IRIS AAR ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
10000/per month
Delivery Time :
30days

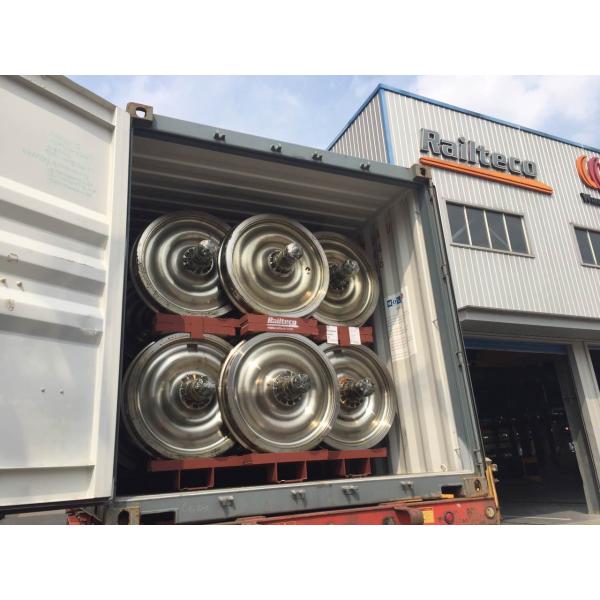

Packaging Details :
PALLET
Type :
wheelset
Application :
Freight Wagon Wheelset
Wheel diameter :
920mm
Standard :
TSI,AAR,ISO
Process :
Forging
Warranty :
5years
Axle :
BA002
Wheel :
BA004
Description

TSI Certified BA004 Wheelset , TSI Wheelset , Axle load 23.5t Wheelset , Railway wheelset

Wheelsets ,gauge 1435 mm, with monoblock wheels of 920 mm ,for axle load of 22,5 tonsaccording to EN technical specification EN13260 (wheelset);EN13261 (axles) and EN13262 (wheels).

EC Declaration of Conformity published by the authorized representative of manufacturer in accordance with DIRECTIVE 2008/57/EC

23.5t Railway Wheel Set

　 Standard Material Axle load
- Railteco BA004 wheel set
 EN13260 ER7&EA1N 23.5t
- Railteco BA004 wheel
 EN13262 ER7 23.5t
- Railteco BA002 axle
 EN13261 EA1N 23.5t

23.5t Railway Wheel Set

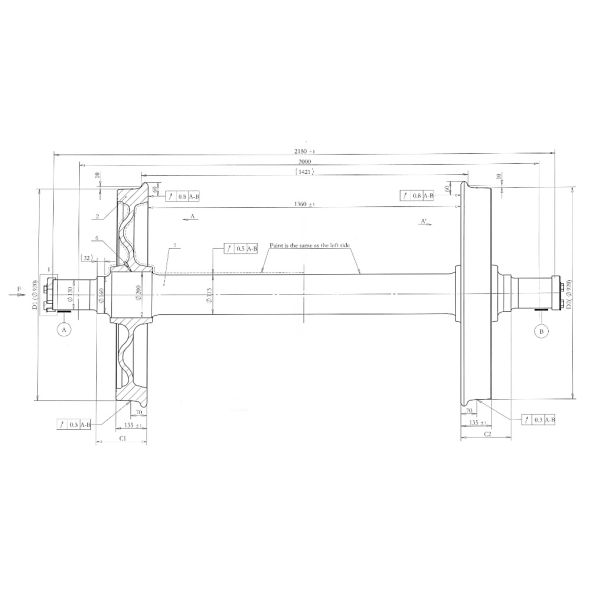

Main technical characteristics :

- gauge 1435 mm

- total axle length 2180 (+1/-1 ) mm

- distance between bearings axis 2000 mm

- distance between the 2 wheels pressed on axle: 1360 (+1/-1)

- nominal wheel pressing-on the -axle diameter f 200 mm

- wheelset weight abt . 998 kg

- wheel rolling diameter of 920 (+4/-0 ) mm

- wear limit sign wheel diameter of 840 (+2/0 ) mm

- wheel’s rim width 135 (+1/-1 ) mm

- wheel’s rim interior diameter on the lip side of 810 (+0/-4 ) mm

- wheel’s rim interior diameter opposing the lip side of 810 (+0/-4 ) mm

- thickness of web:

- at connection with hoop 20 (+2/-0 ) mm

- at connection with nave 20 (+2/-0 ) mm

- external diameter of hub on the side opposing the lip of 240 (+4/-0) mm

- external diameter of hub on the lip side of 240 (+4/-0) mm

- length of hub : 185 (+3/-0) mm

- axle body diameter of 173 (+2/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm

- rolling profile according to EN13715-S1002/h28/e32.5/6.7%

- total axle length 2180 (+1/-1 ) mm

- axle journal diameter of130p6(+0.068/+0.043) mm

- axle journal length 191 (+0.5/- 0.5) mm

- axle obturator diameter f 160 t7 (+0.174/+0.134) mm

- obturator length 58 (+1/-0) mm

- nominal wheel pressing-on the -axle diameter of 200 mm

23.5t Railway Wheel Set
